FET, MOSFET
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo FET | Tecnología | Voltaje de drenaje a fuente (Vdss) | Corriente: drenaje continuo (Id) a 25 °C | Voltaje de excitación (máx. Rds activado, mín. Rds activado) | Rds activado (máx.) a Id, Vgs | Vgs(th) (máx.) a Id | Carga de compuerta (Qg) (máx.) a Vgs | Vgs (máx.) | Capacitancia de entrada (Ciss) (máx.) a Vds | Característica FET | Disipación de potencia (máx.) | Temperatura de funcionamiento | Grado | Calificación | Tipo de montaje | Proveedor Dispositivo Paquete |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTN22N100LMOSFET N-CH 1000V 22A SOT227B |
20 |
|
Tabla de datos |
Linear | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 22A (Tc) | 20V | 600mOhm @ 11A, 20V | 5.5V @ 250µA | 270 nC @ 15 V | ±30V | 7050 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
MSC130SM120JCU2SICFET N-CH 1.2KV 173A SOT227 |
3 |
|
Tabla de datos |
- | SOT-227-4, miniBLOC | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 173A (Tc) | 20V | 16mOhm @ 80A, 20V | 2.8V @ 2mA | 464 nC @ 20 V | +25V, -10V | 6040 pF @ 1000 V | - | 745W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227 (ISOTOP®) |
|
EPC7019GCGAN FET HEMT 40V 95A COTS 5UB |
25 |
|
Tabla de datos |
eGaN® | 5-SMD, No Lead | Bulk | Active | N-Channel | GaNFET (Gallium Nitride) | 40 V | 80A (Tc) | 5V | 4mOhm @ 50A, 5V | 2.5V @ 18mA | - | +6V, -4V | 2830 pF @ 20 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-SMD |
|
|
EPC7018GCGAN FET HEMT 100V 90A COTS 5UB |
2 |
|
Tabla de datos |
eGaN® | 5-SMD, No Lead | Bulk | Active | N-Channel | GaNFET (Gallium Nitride) | 100 V | 80A (Tc) | 5V | 6mOhm @ 40A, 5V | 2.5V @ 12mA | 11.7 nC @ 5 V | +6V, -4V | 1240 pF @ 50 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-SMD |
|
|
2N7002PWMOSFET, SOT-323, 60V, 0.315A, 15 |
796 |
|
Tabla de datos |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 315mA (Ta) | 5V, 10V | 1.6Ohm @ 500mA, 10V | 2.4V @ 250µA | 0.6 nC @ 10 V | ±20V | 30 pF @ 10 V | - | 260mW (Ta) | 150°C (TJ) | - | - | Surface Mount | SOT-323 |
|
2N7002WT1GMOSFET N-CH 60V 310MA SC70-3 |
482 |
|
Tabla de datos |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 310mA (Ta) | 4.5V, 10V | 1.6Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.7 nC @ 4.5 V | ±20V | 24.5 pF @ 20 V | - | 280mW (Tj) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-3 (SOT323) |
|
|
BSS138AK-QRMOS DISCRETES |
459 |
|
Tabla de datos |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 250mA | 2.5V, 10V | - | - | 0.21 nC @ 10 V | 20V | - | - | - | 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
2N7002HR2N7002H/SOT23/TO-236AB |
756 |
|
Tabla de datos |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Tc) | 4.5V, 10V | 5Ohm @ 500mA, 10V | 2.5V @ 250µA | - | ±20V | 50 pF @ 10 V | - | 830mW (Tc) | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
PJA3432-AU_R1_000A1SOT-23, MOSFET |
522 |
|
Tabla de datos |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.6A (Ta) | 1.8V, 4.5V | 200mOhm @ 1.6A, 4.5V | 1.3V @ 250µA | 1.5 nC @ 4.5 V | ±8V | 93 pF @ 15 V | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23 |
|
|
PMV230ENEARMOSFET N-CH 60V 1.5A TO236AB |
987 |
|
Tabla de datos |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 1.5A (Ta) | 4.5V, 10V | 222mOhm @ 1.5A, 10V | 2.7V @ 250µA | 4.8 nC @ 10 V | ±20V | 177 pF @ 30 V | - | 480mW (Ta), 1.45W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
|
PMV65UNERMOSFET N-CH 20V 2.8A TO236AB |
385 |
|
Tabla de datos |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.8A (Ta) | 1.8V, 4.5V | 73mOhm @ 2.8A, 4.5V | 1V @ 250µA | 6 nC @ 10 V | ±8V | 291 pF @ 10 V | - | 490mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-236AB |
|

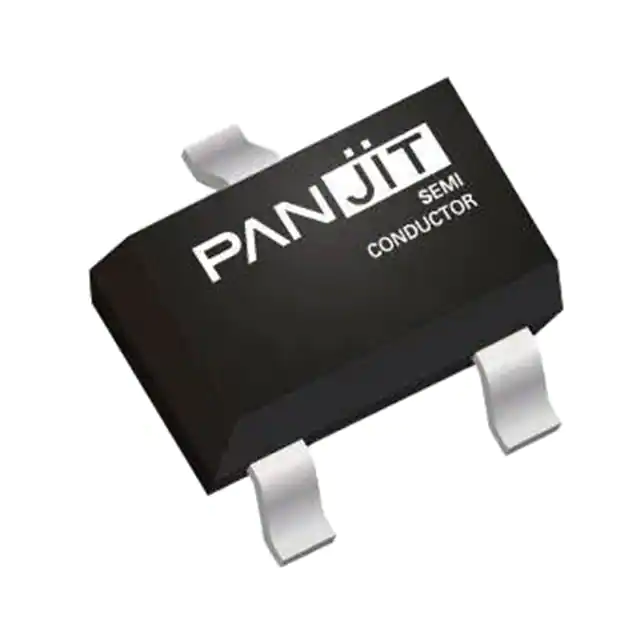

PJC7401_R1_00001SOT-323, MOSFET |
200 |
|
Tabla de datos |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 1.5A (Ta) | 2.5V, 10V | 115mOhm @ 1.5A, 10V | 1.3V @ 250µA | 11 nC @ 10 V | ±12V | 443 pF @ 15 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-323 |
|
DMP21D0UFD-7MOSFET P-CH 20V 820MA 3DFN |
667 |
|
Tabla de datos |
- | 3-UDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 820mA (Ta) | 1.5V, 4.5V | 495mOhm @ 800mA, 4.5V | 1.2V @ 250µA | 3 nC @ 4.5 V | ±8V | 80 pF @ 10 V | - | 490mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1212-3 |
|
|
SI2312B-TPN-CHANNEL MOSFET,SOT-23 |
876 |
|
Tabla de datos |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 6.8A (Ta) | 2.5V, 4.5V | 21mOhm @ 4.5A, 4.5V | 900mV @ 250µA | 15 nC @ 4.5 V | ±10V | 500 pF @ 8 V | - | 1.25W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
PMV28ENEARMOSFET N-CH 30V 4.4A TO236AB |
237 |
|
Tabla de datos |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4.4A (Ta) | 4.5V, 10V | 37mOhm @ 4.4A, 10V | 2.5V @ 250µA | 8 nC @ 10 V | ±20V | 266 pF @ 15 V | - | 660mW (Ta), 8.3W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
CSD18541F5MOSFET N-CH 60V 2.2A 3PICOSTAR |
28 |
|
Tabla de datos |
FemtoFET™ | 3-SMD, No Lead | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 2.2A (Ta) | 4.5V, 10V | 65mOhm @ 1A, 10V | 2.2V @ 250µA | 14 nC @ 10 V | ±20V | 777 pF @ 30 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-PICOSTAR |
|
PJW4P06A-AU_R2_000A160V P-CHANNEL ENHANCEMENT MODE M |
146 |
|
Tabla de datos |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 4A (Ta) | 4.5V, 10V | 110mOhm @ 4A, 10V | 2.5V @ 250µA | 10 nC @ 10 V | ±20V | 785 pF @ 30 V | - | 3.1W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-223 |
|
PMT280ENEAXMOSFET N-CH 100V 1.5A SOT223 |
1,944 |
|
Tabla de datos |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 1.5A (Ta) | 4.5V, 10V | 385mOhm @ 1.5A, 10V | 2.7V @ 250µA | 6.8 nC @ 10 V | ±20V | 195 pF @ 50 V | - | 770mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-223 |
,TO-226_straightlead.jpg)
|
2N7008-GMOSFET N-CH 60V 230MA TO92-3 |
533 |
|
Tabla de datos |
- | TO-226-3, TO-92-3 (TO-226AA) | Bag | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 230mA (Tj) | 5V, 10V | 7.5Ohm @ 500mA, 10V | 2.5V @ 250µA | - | ±30V | 50 pF @ 25 V | - | 1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
TN2106N3-GMOSFET N-CH 60V 300MA TO92-3 |
428 |
|
Tabla de datos |
- | TO-226-3, TO-92-3 (TO-226AA) | Bag | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Tj) | 4.5V, 10V | 2.5Ohm @ 500mA, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 740mW (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
