FET, MOSFET
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo FET | Tecnología | Voltaje de drenaje a fuente (Vdss) | Corriente: drenaje continuo (Id) a 25 °C | Voltaje de excitación (máx. Rds activado, mín. Rds activado) | Rds activado (máx.) a Id, Vgs | Vgs(th) (máx.) a Id | Carga de compuerta (Qg) (máx.) a Vgs | Vgs (máx.) | Capacitancia de entrada (Ciss) (máx.) a Vds | Característica FET | Disipación de potencia (máx.) | Temperatura de funcionamiento | Grado | Calificación | Tipo de montaje | Proveedor Dispositivo Paquete |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXDM4060N TR PBFREEMOSFET N-CH 40V 6A SOT-89 |
1,088 |
|
Tabla de datos |
- | TO-243AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 6A (Ta) | 4.5V, 10V | 31mOhm @ 6A, 10V | 3V @ 250µA | 12 nC @ 10 V | 20V | 730 pF @ 20 V | - | 1.2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-89 |
|
TK30E06N1,S1XMOSFET N-CH 60V 43A TO220 |
69 |
|
Tabla de datos |
U-MOSVIII-H | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 43A (Ta) | 10V | 15mOhm @ 15A, 10V | 4V @ 200µA | 16 nC @ 10 V | ±20V | 1050 pF @ 30 V | - | 53W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220 |
|
TK1K0A60F,S4XX35 PB-F POWER MOSFET TRANSISTOR |
67 |
|
Tabla de datos |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.5A (Ta) | 10V | 1Ohm @ 3.8A, 10V | 4V @ 770µA | 24 nC @ 10 V | ±30V | 890 pF @ 300 V | - | 40W (Tc) | 150°C | - | - | Through Hole | TO-220SIS |
|
IPA50R500CEXKSA2MOSFET N-CH 500V 5.4A TO220 |
34 |
|
Tabla de datos |
CoolMOS™ CE | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 5.4A (Tc) | 13V | 500mOhm @ 2.3A, 13V | 3.5V @ 200µA | 18.7 nC @ 10 V | ±20V | 433 pF @ 100 V | - | 28W (Tc) | -40°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-FP |
|
BUK7Y14-80EXMOSFET N-CH 80V 65A LFPAK56 |
75 |
|
Tabla de datos |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 65A (Tc) | 10V | 14mOhm @ 15A, 10V | 4V @ 1mA | 44.8 nC @ 10 V | ±20V | 3155 pF @ 25 V | - | 147W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
|
TK3R1A04PL,S4XMOSFET N-CH 40V 82A TO220SIS |
77 |
|
Tabla de datos |
U-MOSIX-H | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 82A (Tc) | 4.5V, 10V | 3.8mOhm @ 30A, 4.5V | 2.4V @ 500µA | 63.4 nC @ 10 V | ±20V | 4670 pF @ 20 V | - | 36W (Tc) | 175°C (TJ) | - | - | Through Hole | TO-220SIS |
|
|
TK5R3A06PL,S4XX35 PB-F POWER MOSFET TRANSISTOR |
75 |
|
Tabla de datos |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 56A (Tc) | 4.5V, 10V | 5.3mOhm @ 28A, 10V | 2.5V @ 300µA | 36 nC @ 10 V | ±20V | 2380 pF @ 30 V | - | 36W (Tc) | 175°C | - | - | Through Hole | TO-220SIS |
|
|
TK4R3A06PL,S4XMOSFET N-CH 60V 68A TO220SIS |
54 |
|
Tabla de datos |
U-MOSIX-H | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 68A (Tc) | 4.5V, 10V | 7.2mOhm @ 15A, 4.5V | 2.5V @ 500µA | 48.2 nC @ 10 V | ±20V | 3280 pF @ 30 V | - | 36W (Tc) | 175°C (TJ) | - | - | Through Hole | TO-220SIS |
|
|
TK650A60F,S4XMOSFET N-CH 600V 11A TO220SIS |
74 |
|
Tabla de datos |
U-MOSIX | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Ta) | 10V | 650mOhm @ 5.5A, 10V | 4V @ 1.16mA | 34 nC @ 10 V | ±30V | 1320 pF @ 300 V | - | 45W (Tc) | 150°C | - | - | Through Hole | TO-220SIS |
|
|
TK32A12N1,S4XMOSFET N-CH 120V 32A TO220SIS |
66 |
|
Tabla de datos |
U-MOSVIII-H | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 120 V | 32A (Tc) | 10V | 13.8mOhm @ 16A, 10V | 4V @ 500µA | 34 nC @ 10 V | ±20V | 2000 pF @ 60 V | - | 30W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220SIS |
|
TK7R4A10PL,S4XX35 PB-F POWER MOSFET TRANSISTOR |
100 |
|
Tabla de datos |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 50A (Tc) | 4.5V, 10V | 7.4mOhm @ 25A, 10V | 2.5V @ 500µA | 44 nC @ 10 V | ±20V | 2800 pF @ 50 V | - | 42W (Tc) | 175°C | - | - | Through Hole | TO-220SIS |
|
|
TK22E10N1,S1XMOSFET N CH 100V 52A TO220 |
31 |
|
Tabla de datos |
U-MOSVIII-H | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 52A (Tc) | 10V | 13.8mOhm @ 11A, 10V | 4V @ 300µA | 28 nC @ 10 V | ±20V | 1800 pF @ 50 V | - | 72W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
DMNH10H028SCTMOSFET N-CH 100V 60A TO220AB |
91 |
|
Tabla de datos |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 60A (Tc) | 10V | 28mOhm @ 20A, 10V | 4V @ 250µA | 31.9 nC @ 10 V | ±20V | 1942 pF @ 50 V | - | 2.8W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|

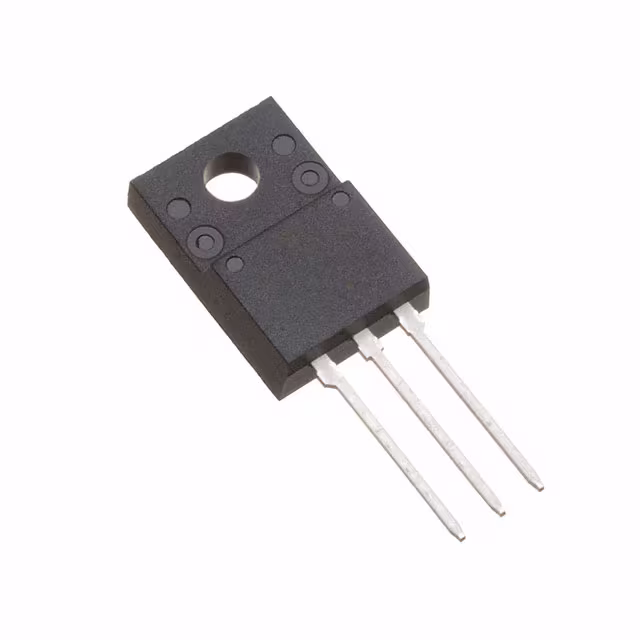

TK6R7A10PL,S4XX35 PB-F POWER MOSFET TRANSISTOR |
42 |
|
Tabla de datos |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 56A (Tc) | 4.5V, 10V | 6.7mOhm @ 28A, 10V | 2.5V @ 500µA | 58 nC @ 10 V | ±20V | 3455 pF @ 50 V | - | 42W (Tc) | 175°C | - | - | Through Hole | TO-220SIS |
|
NVTFS5C454NLTAGMOSFET N-CHANNEL 40V 85A 8WDFN |
29 |
|
Tabla de datos |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 85A (Tc) | 4.5V, 10V | 4mOhm @ 20A, 10V | 2.2V @ 250µA | 18 nC @ 10 V | ±20V | 1600 pF @ 25 V | - | 55W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
IPD42DP15LMATMA1TRENCH >=100V PG-TO252-3 |
75 |
|
Tabla de datos |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 150 V | 1.7A (Ta), 9A (Tc) | 4.5V, 10V | 420mOhm @ 8.2A, 10V | 2V @ 1.04mA | 43 nC @ 10 V | ±20V | 2100 pF @ 75 V | - | 3W (Ta), 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
STP100N6F7MOSFET N-CH 60V 100A TO220 |
67 |
|
Tabla de datos |
STripFET™ F7 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 10V | 5.6mOhm @ 50A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±20V | 1980 pF @ 25 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
RCX200N20MOSFET N-CH 200V 20A TO220FM |
33 |
|
Tabla de datos |
- | TO-220-3 Full Pack | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 20A (Tc) | 10V | 130mOhm @ 10A, 10V | 5V @ 1mA | 40 nC @ 10 V | ±30V | 1900 pF @ 25 V | - | 2.23W (Ta), 40W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
STB30NF10T4MOSFET N-CH 100V 35A D2PAK |
1,027 |
|
Tabla de datos |
STripFET™ II | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 35A (Tc) | 10V | 45mOhm @ 15A, 10V | 4V @ 250µA | 55 nC @ 10 V | ±20V | 1180 pF @ 25 V | - | 115W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IPP082N10NF2SAKMA1TRENCH >=100V |
68 |
|
Tabla de datos |
StrongIRFET™ 2 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 15A (Ta), 77A (Tc) | 6V, 10V | 8.2mOhm @ 50A, 10V | 3.8V @ 46µA | 42 nC @ 10 V | ±20V | 2000 pF @ 50 V | - | 3.8W (Ta), 100W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3 |
