Inductores fijos
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo | Material - Núcleo | Inductancia | Tolerancia | Clasificación de corriente (amperios) | Corriente - Saturación (Isat) | Blindaje | Resistencia de CC (DCR) | Q a frecuencia | Frecuencia: autorresonante | Clasificaciones | Temperatura de funcionamiento | Frecuencia de inductancia - Prueba | Características | Tipo de montaje | Proveedor Dispositivo Paquete | Tamaño/Dimensión | Altura - Asentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPEX2622H-3R0MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
20 |
|
Tabla de datos |
CPEX2622H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 3 µH | ±20% | 48 A | 180A | Shielded | 1.15mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 0.874" W (26.50mm x 22.20mm) | 0.984" (25.00mm) |
|
|
CPEX2622H-6R5MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
20 |
|
Tabla de datos |
CPEX2622H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 6.5 µH | ±20% | 34 A | 120A | Shielded | 2.32mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 0.874" W (26.50mm x 22.20mm) | 0.984" (25.00mm) |
|
|
CPEX2622H-1R0MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
20 |
|
Tabla de datos |
CPEX2622H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 1 µH | ±20% | 79 A | 280A | Shielded | 0.43mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 0.874" W (26.50mm x 22.20mm) | 0.984" (25.00mm) |
|
|
CPEX2622H-9R5MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
20 |
|
Tabla de datos |
CPEX2622H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 9.5 µH | ±20% | 28 A | 95A | Shielded | 3.48mOhm Max | - | - | - | -55°C ~ 155°C | - | High Saturation, Flat Wire, Low Loss, Low DCR | Through Hole | - | 1.043" L x 0.874" W (26.50mm x 22.20mm) | 0.984" (25.00mm) |
|
|
CPEX2622H-5R1MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
20 |
|
Tabla de datos |
CPEX2622H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 5.1 µH | ±20% | 39 A | 136A | Shielded | 1.81mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 0.874" W (26.50mm x 22.20mm) | 0.984" (25.00mm) |
|
|
CPEX2622H-1R5MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
20 |
|
Tabla de datos |
CPEX2622H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 1.5 µH | ±20% | 65 A | 255A | Shielded | 0.64mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 0.874" W (26.50mm x 22.20mm) | 0.984" (25.00mm) |
|

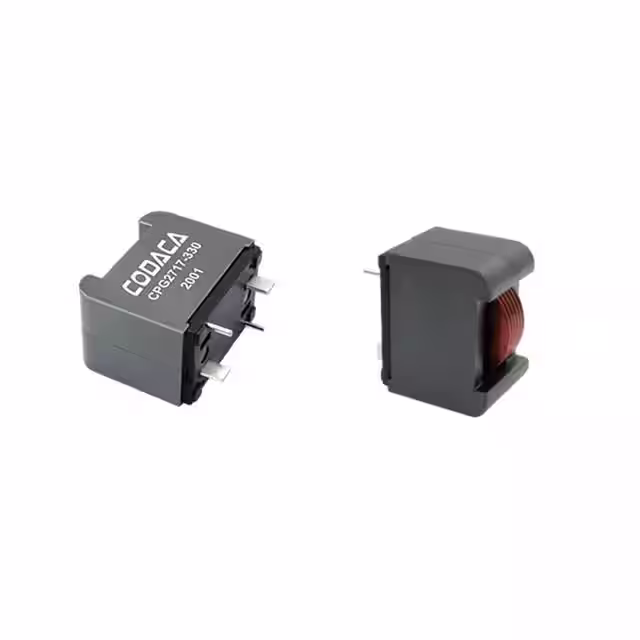

CPG2717-3R3MTHT HIGH CURRENT POWER INDUCTOR CODACA |
20 |
|
Tabla de datos |
CPG2717 | Nonstandard | Tray | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 33.7 A | 85A | Shielded | 2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | Vertical, 4 PC Pin | 1.059" L x 0.650" W (26.90mm x 16.50mm) | 0.898" (22.80mm) |
|
|
CPG2717-4R7MTHT HIGH CURRENT POWER INDUCTOR CODACA |
7 |
|
Tabla de datos |
CPG2717 | Nonstandard | Tray | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 33.7 A | 59A | Shielded | 2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | Vertical, 4 PC Pin | 1.059" L x 0.650" W (26.90mm x 16.50mm) | 0.898" (22.80mm) |
|
|
CPEX2722-180MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
60 |
|
Tabla de datos |
CPEX2722 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 18 µH | ±20% | 26.5 A | 48A | Shielded | 4.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 1.075" L x 0.846" W (27.30mm x 21.50mm) | 0.898" (22.80mm) |
|
|
CPRX2520L-100MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
56 |
|
Tabla de datos |
CPRX2520L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 10 µH | ±20% | 44 A | 45A | Shielded | 2mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Power Inductor | Through Hole | Vertical, 2 PC Pin | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) |
