Inductores fijos
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo | Material - Núcleo | Inductancia | Tolerancia | Clasificación de corriente (amperios) | Corriente - Saturación (Isat) | Blindaje | Resistencia de CC (DCR) | Q a frecuencia | Frecuencia: autorresonante | Clasificaciones | Temperatura de funcionamiento | Frecuencia de inductancia - Prueba | Características | Tipo de montaje | Proveedor Dispositivo Paquete | Tamaño/Dimensión | Altura - Asentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPRX2520S-R90MCHIGH CURRENT THT POWER INDUCTOR CODACA |
20 |
|
Tabla de datos |
CPRX2520S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 0.9 µH | ±20% | 80 A | 180A | Shielded | 0.3mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | 2520 | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) |
|
|
CPRX2520S-7R5MCHIGH CURRENT THT POWER INDUCTOR CODACA |
20 |
|
Tabla de datos |
CPRX2520S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 7.5 µH | ±20% | 44 A | 60A | Shielded | 2mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | 2520 | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) |
|

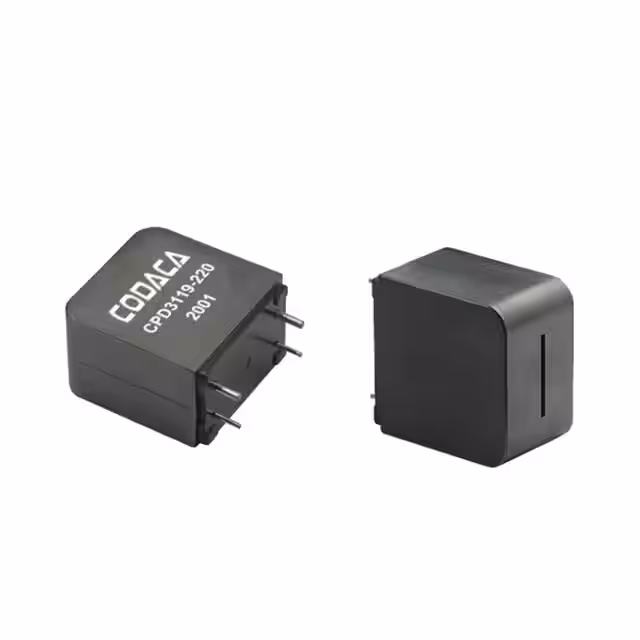

CPD3119-150MTHT CLASS D IND FOR DIGITAL AMP CODACA |
67 |
|
Tabla de datos |
CPD3119 | Nonstandard | Tray | Active | Wirewound | Ferrite | 15 µH | ±20% | 15.5 A | 47A | Shielded | 6.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.299" (33.00mm) |
|
|
CPD3119-330MTHT CLASS D IND FOR DIGITAL AMP CODACA |
59 |
|
Tabla de datos |
CPD3119 | Nonstandard | Tray | Active | Wirewound | Ferrite | 33 µH | ±20% | 15.5 A | 21.5A | Shielded | 6.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.299" (33.00mm) |
|
|
CPD3119SA-180MTHT CLASS D IND FOR DIGITAL AMP CODACA |
23 |
|
Tabla de datos |
CPD3119SA | Vertical, 4 PC Pin | Tray | Active | Wirewound | Ferrite | 18 µH | ±20% | 15.5 A | 39A | Shielded | 10.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, 4 PC Pin | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.299" (33.00mm) |
|
|
CPD3119SA-220MTHT CLASS D IND FOR DIGITAL AMP CODACA |
9 |
|
Tabla de datos |
CPD3119SA | Vertical, 4 PC Pin | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 13.5 A | 30.5A | Shielded | 12.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, 4 PC Pin | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.299" (33.00mm) |
|
|
CPD3119SA-150MTHT CLASS D IND FOR DIGITAL AMP CODACA |
8 |
|
Tabla de datos |
CPD3119SA | Vertical, 4 PC Pin | Tray | Active | Wirewound | Ferrite | 15 µH | ±20% | 15.5 A | 48A | Shielded | 10.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, 4 PC Pin | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.299" (33.00mm) |
|
CPG2717-150MTHT HIGH CURRENT POWER INDUCTOR CODACA |
18 |
|
Tabla de datos |
CPG2717 | Nonstandard | Tray | Active | Wirewound | Ferrite | 15 µH | ±20% | 33.7 A | 18A | Shielded | 2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | Vertical, 4 PC Pin | - | - |
|
|
CPEX2622H-2R2MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
20 |
|
Tabla de datos |
CPEX2622H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 2.2 µH | ±20% | 56 A | 200A | Shielded | 0.84mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 0.874" W (26.50mm x 22.20mm) | 0.984" (25.00mm) |
|
|
CPEX2622H-4R1MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
20 |
|
Tabla de datos |
CPEX2622H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 4.1 µH | ±20% | 41 A | 162A | Shielded | 1.61mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 0.874" W (26.50mm x 22.20mm) | 0.984" (25.00mm) |
