FET, MOSFET
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo FET | Tecnología | Voltaje de drenaje a fuente (Vdss) | Corriente: drenaje continuo (Id) a 25 °C | Voltaje de excitación (máx. Rds activado, mín. Rds activado) | Rds activado (máx.) a Id, Vgs | Vgs(th) (máx.) a Id | Carga de compuerta (Qg) (máx.) a Vgs | Vgs (máx.) | Capacitancia de entrada (Ciss) (máx.) a Vds | Característica FET | Disipación de potencia (máx.) | Temperatura de funcionamiento | Grado | Calificación | Tipo de montaje | Proveedor Dispositivo Paquete |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STU60N3LH5MOSFET N-CH 30V 48A IPAK |
3,904 |
|
Tabla de datos |
STripFET™ V | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 48A (Tc) | 5V, 10V | 8.4mOhm @ 24A, 10V | 3V @ 250µA | 8.8 nC @ 5 V | ±20V | 1620 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK |
|
PHD101NQ03LT,118MOSFET N-CH 30V 75A DPAK |
4,029 |
|
Tabla de datos |
TrenchMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 75A (Tc) | 5V, 10V | 5.5mOhm @ 25A, 10V | 2.5V @ 1mA | 23 nC @ 5 V | ±20V | 2180 pF @ 25 V | - | 166W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|
PJQ5463A-AU_R2_000A160V P-CHANNEL ENHANCEMENT MODE M |
3,431 |
|
Tabla de datos |
- | 8-PowerVDFN | Tape & Reel (TR) | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 60 V | 4A (Ta), 15A (Tc) | 4.5V, 10V | 68mOhm @ 7.5A, 10V | 2.5V @ 250µA | 17 nC @ 10 V | ±20V | 879 pF @ 30 V | - | 2W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN5060-8 |
|
FQD8P10TF_NB82052MOSFET P-CH 100V 6.6A DPAK |
3,068 |
|
- |
QFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 100 V | 6.6A (Tc) | 10V | 530mOhm @ 3.3A, 10V | 4V @ 250µA | 15 nC @ 10 V | ±30V | 470 pF @ 25 V | - | 2.5W (Ta), 44W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
DMT3004LFG-13MOSFET NCH 30V 10.4A POWERDI |
3,048 |
|
Tabla de datos |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10.4A (Ta), 25A (Tc) | 4.5V, 10V | 4.5mOhm @ 20A, 10V | 3V @ 250µA | 44 nC @ 10 V | +20V, -16V | 2370 pF @ 15 V | - | 2.1W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | POWERDI3333-8 |
|
IPU60R1K0CEAKMA2MOSFET N-CH 600V 4.3A TO251-3 |
4,035 |
|
Tabla de datos |
CoolMOS™ CE | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.3A (Tc) | 10V | 1Ohm @ 1.5A, 10V | 3.5V @ 130µA | 13 nC @ 10 V | ±20V | 280 pF @ 100 V | - | 61W (Tc) | -40°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO251-3 |
|
DMP26M1UPSW-13MOSFET BVDSS: 8V~24V PowerDI5060 |
3,031 |
|
Tabla de datos |
- | 8-PowerTDFN | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 83A (Tc) | 2.5V, 4.5V | 6mOhm @ 15A, 4.5V | 1V @ 250µA | 164 nC @ 10 V | ±10V | 5392 pF @ 10 V | - | 1.9W (Ta), 2.6W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount, Wettable Flank | PowerDI5060-8 (Type UX) |
|
|
DMP27M1UPSW-13MOSFET BVDSS: 8V~24V PowerDI5060 |
4,051 |
|
Tabla de datos |
- | 8-PowerTDFN | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 84A (Tc) | 2.5V, 10V | 5.5mOhm @ 15A, 10V | 1.3V @ 250µA | 123 nC @ 10 V | ±12V | 4777 pF @ 10 V | - | 1.95W (Ta), 3.57W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount, Wettable Flank | PowerDI5060-8 (Type UX) |
|
|
DMPH16M1UPSW-13MOSFET BVDSS: 8V~24V PowerDI5060 |
3,161 |
|
Tabla de datos |
- | 8-PowerTDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 12 V | 96A (Tc) | 2.5V, 4.5V | 6mOhm @ 15A, 4.5V | 1V @ 250µA | 164 nC @ 8 V | ±8V | 5392 pF @ 10 V | - | 1.95W | -55°C ~ 175°C (TJ) | - | - | Surface Mount, Wettable Flank | PowerDI5060-8 (Type UX) |
|
PJD2NA1K_L2_000011000V N-CHANNEL MOSFET |
4,654 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 2A (Ta) | 10V | 9Ohm @ 1A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±30V | 385 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
BSP615S2LMOSFET N-CH 55V 2.8A SOT223-4 |
2,785 |
|
Tabla de datos |
OptiMOS™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 2.8A (Ta) | 4.5V, 10V | 90mOhm @ 1.4A, 10V | 2V @ 12µA | 10 nC @ 10 V | ±20V | 330 pF @ 25 V | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223-4 |
|
DMT67M8LSS-13MOSFET BVDSS: 41V~60V SO-8 T&R 2 |
3,965 |
|
Tabla de datos |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 12A (Ta) | 4.5V, 10V | 6.6mOhm @ 16.5A, 10V | 3V @ 250µA | 37.5 nC @ 10 V | ±20V | 2130 pF @ 30 V | - | 1.4W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|

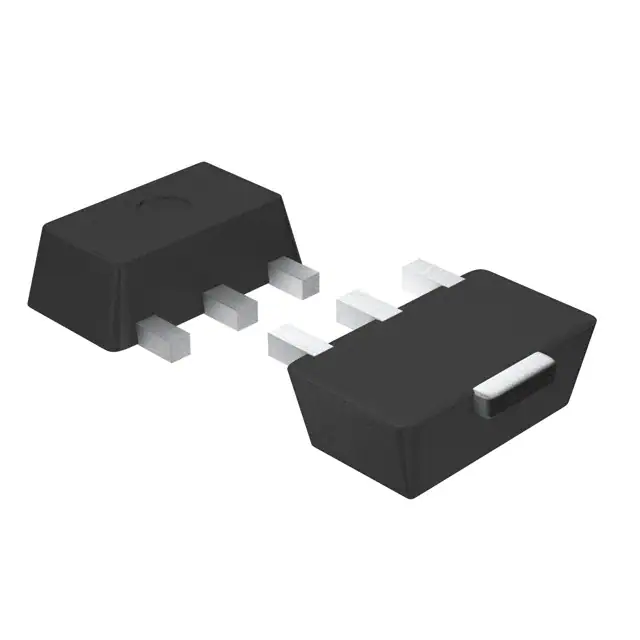

XP161A1265PRMOSFET N-CH 20V 4A SOT89 |
3,469 |
|
Tabla de datos |
- | TO-243AA | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 2.5V, 4.5V | 55mOhm @ 2A, 4.5V | - | - | ±12V | 320 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | SOT-89 |
|
|
XP161A1265PR-GMOSFET N-CH 20V 4A SOT89 |
3,449 |
|
Tabla de datos |
- | TO-243AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 2.5V, 4.5V | 55mOhm @ 2A, 4.5V | 1.4V @ 1mA | - | ±12V | 320 pF @ 10 V | - | 2W (Ta) | 150°C (TA) | - | - | Surface Mount | SOT-89 |
|
|
MCG53N06A-TPS01POWER MOSFET |
4,840 |
|
Tabla de datos |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DMTH45M5LFVWQ-7MOSFET BVDSS: 31V~40V POWERDI333 |
2,849 |
|
Tabla de datos |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 18A (Ta), 71A (Tc) | 4.5V, 10V | 5.5mOhm @ 25A, 10V | 2.3V @ 250µA | 13.9 nC @ 10 V | ±20V | 978 pF @ 20 V | - | 3.5W (Ta), 51W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PowerDI3333-8 (SWP) Type UX |
|
|
DMTH45M5SFVWQ-7MOSFET BVDSS: 31V~40V POWERDI333 |
3,727 |
|
Tabla de datos |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 18A (Ta), 71A (Tc) | 10V | 5.5mOhm @ 25A, 10V | 3.5V @ 250µA | 13.2 nC @ 10 V | ±20V | 1083 pF @ 20 V | - | 3.5W (Ta), 51W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PowerDI3333-8 (SWP) Type UX |
|
|
MCU50N06AHE3-TPMOSFET |
2,086 |
|
Tabla de datos |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | 4.5V, 10V | 15mOhm @ 15A, 10V | 2.5V @ 250µA | 46 nC @ 10 V | ±20V | 2515 pF @ 25 V | - | 59.5W (Tj) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252 (DPAK) |
|
|
MCU50P04A-TPMOSFET |
3,251 |
|
Tabla de datos |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Tc) | 4.5V, 10V | 15mOhm @ 20A, 10V | 2.5V @ 250µA | 75 nC @ 10 V | ±20V | 3302 pF @ 30 V | - | 83W (Tj) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
MTD2955VT4MOSFET P-CH 60V 12A DPAK |
4,996 |
|
Tabla de datos |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 12A (Tc) | 10V | 230mOhm @ 6A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±20V | 770 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
