FET, MOSFET
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo FET | Tecnología | Voltaje de drenaje a fuente (Vdss) | Corriente: drenaje continuo (Id) a 25 °C | Voltaje de excitación (máx. Rds activado, mín. Rds activado) | Rds activado (máx.) a Id, Vgs | Vgs(th) (máx.) a Id | Carga de compuerta (Qg) (máx.) a Vgs | Vgs (máx.) | Capacitancia de entrada (Ciss) (máx.) a Vds | Característica FET | Disipación de potencia (máx.) | Temperatura de funcionamiento | Grado | Calificación | Tipo de montaje | Proveedor Dispositivo Paquete |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SIHA240N60E-GE3MOSFET N-CH 600V 12A TO220 |
2,637 |
|
Tabla de datos |
E | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 240mOhm @ 5.5A, 10V | 5V @ 250µA | 23 nC @ 10 V | ±30V | 783 pF @ 100 V | - | 31W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Full Pack |
|

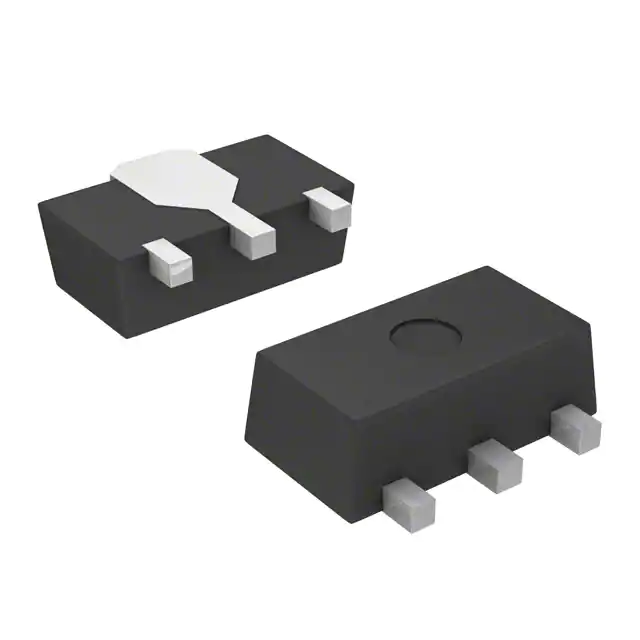

CPC3710CTRMOSFET N-CH 250V SOT89 |
4,481 |
|
Tabla de datos |
- | TO-243AA | Tape & Reel (TR) | Active | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 250 V | - | 0V | 10Ohm @ 220mA, 0V | - | - | ±15V | 350 pF @ 25 V | - | 1.4W (Ta) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89 |
|
RCX120N25MOSFET N-CH 250V 12A TO220FM |
3,489 |
|
Tabla de datos |
- | TO-220-3 Full Pack | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 12A (Ta) | 10V | - | - | - | ±30V | - | - | 2.23W (Ta), 40W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
MCQ12N06-TPMOSFET N-CH 60V 12A 8SOP |
20 |
|
Tabla de datos |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 12A (Tj) | 4.5V, 10V | 9mOhm @ 12A, 10V | 2.5V @ 250µA | 31 nC @ 10 V | ±20V | 1988 pF @ 30 V | - | 3.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
IXTP4N80PMOSFET N-CH 800V 3.6A TO220AB |
2,003 |
|
Tabla de datos |
Polar | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 3.6A (Tc) | 10V | 3.4Ohm @ 500mA, 10V | 5.5V @ 100µA | 14.2 nC @ 10 V | ±30V | 750 pF @ 25 V | - | 100W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IPA65R190C7XKSA1MOSFET N-CH 650V 8A TO220-FP |
3,549 |
|
Tabla de datos |
CoolMOS™ C7 | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 8A (Tc) | 10V | 190mOhm @ 5.7A, 10V | 4V @ 290µA | 23 nC @ 10 V | ±20V | 1150 pF @ 400 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-FP |
|
IXTA1N100PMOSFET N-CH 1000V 1A TO263 |
3,738 |
|
Tabla de datos |
Polar | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 1A (Tc) | 10V | 15Ohm @ 500mA, 10V | 4.5V @ 50µA | 15.5 nC @ 10 V | ±20V | 331 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA |
|
SQJ414EP-T1_GE3MOSFET N-CH 30V 30A PPAK SO-8 |
3,040 |
|
Tabla de datos |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 30A (Tc) | 4.5V, 10V | 12mOhm @ 4.5A, 10V | 2.5V @ 250µA | 25 nC @ 10 V | ±20V | 1110 pF @ 15 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
SISHA10DN-T1-GE3MOSFET N-CH 30V 25A/30A PPAK |
4,990 |
|
Tabla de datos |
TrenchFET® Gen IV | PowerPAK® 1212-8SH | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 25A (Ta), 30A (Tc) | 4.5V, 10V | 3.7mOhm @ 10A, 10V | 2.2V @ 250µA | 51 nC @ 10 V | +20V, -16V | 2425 pF @ 15 V | - | 3.6W (Ta), 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8SH |
Type-UX;-;-8-Top.jpg)
|
DMT47M2SFVWQ-7MOSFET N-CH 40V PWRDI3333 |
4,827 |
|
Tabla de datos |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 15.4A (Ta), 49.1A (Tc) | 10V | 7.5mOhm @ 20A, 10V | 4V @ 250µA | 12.1 nC @ 10 V | ±20V | 897 pF @ 20 V | - | 2.67W (Ta), 27.1W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PowerDI3333-8 (SWP) Type UX |
|
|
IXTA4N65X2MOSFET N-CH 650V 4A TO263 |
4,164 |
|
Tabla de datos |
Ultra X2 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 4A (Tc) | 10V | 850mOhm @ 2A, 10V | 5V @ 250µA | 8.3 nC @ 10 V | ±30V | 455 pF @ 25 V | - | 80W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 |
|
TK5A60W,S4VXMOSFET N-CH 600V 5.4A TO220SIS |
4,341 |
|
Tabla de datos |
DTMOSIV | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5.4A (Ta) | 10V | 900mOhm @ 2.7A, 10V | 3.7V @ 270µA | 10.5 nC @ 10 V | ±30V | 380 pF @ 300 V | - | 30W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220SIS |
|
SIHP21N60EF-BE3MOSFET N-CH 600V 21A TO220AB |
4,211 |
|
Tabla de datos |
EF | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 176mOhm @ 11A, 10V | 4V @ 250µA | 84 nC @ 10 V | ±30V | 2030 pF @ 100 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
TK1K7A60F,S4XX35 PB-F POWER MOSFET TRANSISTOR |
1 |
|
Tabla de datos |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 4A (Ta) | 10V | 1.7Ohm @ 2A, 10V | 4V @ 460µA | 16 nC @ 10 V | ±30V | 560 pF @ 300 V | - | 35W (Tc) | 150°C | - | - | Through Hole | TO-220SIS |
|
DMTH4007LK3-13MOSFET N-CH 40V 16.8A/70A TO252 |
3,031 |
|
Tabla de datos |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 16.8A (Ta), 70A (Tc) | 4.5V, 10V | 7.3mOhm @ 20A, 10V | 3V @ 250µA | 29.1 nC @ 10 V | ±20V | 1895 pF @ 30 V | - | 2.6W (Ta) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
RQ6E045RPTRMOSFET P-CH 30V 4.5A TSMT6 |
3,523 |
|
Tabla de datos |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.5A (Ta) | 4V, 10V | 35mOhm @ 4.5A, 10V | 2.5V @ 1mA | 14 nC @ 5 V | ±20V | 1350 pF @ 10 V | - | 950mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT6 (SC-95) |
|
|
TK3R2A08QM,S4XUMOS10 TO-220SIS 80V 3.2MOHM |
3,523 |
|
Tabla de datos |
U-MOSX-H | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 92A (Tc) | 6V, 10V | 3.2mOhm @ 46A, 10V | 3.5V @ 1.3mA | 102 nC @ 10 V | ±20V | 7670 pF @ 40 V | - | 45W (Tc) | 175°C | - | - | Through Hole | TO-220SIS |
|
|
IPA032N06N3GXKSA1MOSFET N-CH 60V 84A TO220-3-31 |
2,044 |
|
Tabla de datos |
OptiMOS™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 84A (Tc) | 10V | 3.2mOhm @ 80A, 10V | 4V @ 118µA | 165 nC @ 10 V | ±20V | 13000 pF @ 30 V | - | 41W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3-31 |
|
SIHF15N60E-E3MOSFET N-CH 600V 15A TO220 |
3,655 |
|
Tabla de datos |
E | TO-220-3 Full Pack | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tc) | 10V | 280mOhm @ 8A, 10V | 4V @ 250µA | 78 nC @ 10 V | ±30V | 1350 pF @ 100 V | - | 34W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Full Pack |
|
SQS482ENW-T1_GE3MOSFET N-CH 30V 16A PPAK1212-8W |
4,141 |
|
Tabla de datos |
TrenchFET® | PowerPAK® 1212-8W | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Tc) | 4.5V, 10V | 8.5mOhm @ 16.4A, 10V | 2.5V @ 250µA | 39 nC @ 10 V | ±20V | 1865 pF @ 25 V | - | 62W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® 1212-8W |
