FET, MOSFET
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo FET | Tecnología | Voltaje de drenaje a fuente (Vdss) | Corriente: drenaje continuo (Id) a 25 °C | Voltaje de excitación (máx. Rds activado, mín. Rds activado) | Rds activado (máx.) a Id, Vgs | Vgs(th) (máx.) a Id | Carga de compuerta (Qg) (máx.) a Vgs | Vgs (máx.) | Capacitancia de entrada (Ciss) (máx.) a Vds | Característica FET | Disipación de potencia (máx.) | Temperatura de funcionamiento | Grado | Calificación | Tipo de montaje | Proveedor Dispositivo Paquete |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NX3008NBKVLMOSFET N-CH 30V 400MA TO236AB |
6,499 |
|
Tabla de datos |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 400mA (Ta) | 1.8V, 4.5V | 1.4Ohm @ 350mA, 4.5V | 1.1V @ 250µA | 0.68 nC @ 4.5 V | ±8V | 50 pF @ 15 V | - | 350mW (Ta), 1.14W (Tc) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
|
NX3008PBKVLMOSFET P-CH 30V 230MA TO236AB |
5,931 |
|
Tabla de datos |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 230mA (Ta) | 2.5V, 4.5V | 4.1Ohm @ 200mA, 4.5V | 1.1V @ 250µA | 0.72 nC @ 4.5 V | ±8V | 46 pF @ 15 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
2N7002AQ-13MOSFET N-CH 60V 180MA SOT23 |
5,285 |
|
Tabla de datos |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 180mA (Ta) | 5V | 5Ohm @ 115mA, 10V | 2V @ 250µA | - | ±20V | 23 pF @ 25 V | - | 370mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
DMN62D0UW-13MOSFET N-CH 60V 340MA SOT323 |
17,090 |
|
Tabla de datos |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 340mA (Ta) | 1.8V, 4.5V | 2Ohm @ 100mA, 4.5V | 1V @ 250µA | 0.5 nC @ 4.5 V | ±20V | 32 pF @ 30 V | - | 320mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-323 |
|
DMN2710UWQ-7MOSFET BVDSS: 8V~24V SOT323 T&R |
3,000 |
|
Tabla de datos |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 900mA (Ta) | 1.8V, 4.5V | 450mOhm @ 600mA, 4.5V | 1V @ 250µA | 0.6 nC @ 4.5 V | ±6V | 42 pF @ 16 V | - | 470mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
|
DMN31D6UT-7MOSFET N-CH 30V 350MA SOT523 |
2,966 |
|
Tabla de datos |
- | SOT-523 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 350mA (Ta) | 2.5V, 4.5V | 1.5Ohm @ 100mA, 4.5V | 1.4V @ 250µA | 0.35 nC @ 4.5 V | ±12V | 13.6 pF @ 15 V | - | 320mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-523 |
|
|
DMP610DLQ-7MOSFET BVDSS: 41V~60V SOT23 T&R |
1,688 |
|
Tabla de datos |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 186mA (Ta) | 5V | 10Ohm @ 100mA, 5V | 2V @ 1mA | 0.5 nC @ 5 V | ±30V | 40 pF @ 25 V | - | 520mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
DMN62D4LFB-7BMOSFET BVDSS: 41V~60V X2-DFN1006 |
9,927 |
|
Tabla de datos |
- | 3-UFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 407mA (Ta) | 5V, 10V | 2Ohm @ 500mA, 10V | 2.5V @ 250µA | 1.1 nC @ 10 V | ±20V | 40 pF @ 30 V | - | 500mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-3 |
|
|
DMN2991UFB4-7BMOSFET BVDSS: 8V~24V X2-DFN1006- |
9,750 |
|
Tabla de datos |
- | 3-XFDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 500mA (Ta) | 1.8V, 4.5V | 990mOhm @ 100mA, 4.5V | 1V @ 250µA | 0.28 nC @ 4.5 V | ±8V | 14.6 pF @ 16 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X2-DFN1006-3 |
|
|
XP232N0301TR-GMOSFET N-CH 30V 300MA SOT23 |
3,000 |
|
Tabla de datos |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 300mA (Ta) | 4.5V, 10V | 2Ohm @ 100mA, 10V | 2.5V @ 250µA | 0.36 nC @ 10 V | ±20V | 22 pF @ 10 V | - | 400mW (Ta) | 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
DMN2990UFB-7BMOSFET N-CH 20V 780MA 3DFN |
9,450 |
|
Tabla de datos |
- | 3-UFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 780mA (Ta) | 1.8V, 4.5V | 990mOhm @ 100mA, 4.5V | 1V @ 250A | 0.41 nC @ 4.5 V | ±8V | 31 pF @ 15 V | - | 520mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X1-DFN1006-3 |
|
XP262N70023R-GMOSFET N-CH 60V 300MA SOT323-3 |
4,997 |
|
Tabla de datos |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Ta) | 4.5V, 10V | 1.6Ohm @ 100mA, 10V | 2.1V @ 250µA | 0.72 nC @ 10 V | ±20V | 30 pF @ 20 V | - | 350mW (Ta) | 150°C (TJ) | - | - | Surface Mount | SOT-323-3A |
|
DMN33D8LT-7MOSFET N-CH 30V 115MA SOT523 |
4,130 |
|
Tabla de datos |
- | SOT-523 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 115mA (Ta) | 2.5V, 4V | 5Ohm @ 10mA, 4V | 1.5V @ 100µA | 0.55 nC @ 10 V | ±20V | 48 pF @ 5 V | - | 240mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-523 |
|
|
XP233N0501TR-GMOSFET N-CH 30V 500MA SOT23 |
3,027 |
|
Tabla de datos |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 500mA (Ta) | 2.5V, 4.5V | 1.5Ohm @ 100mA, 4.5V | 1.7V @ 250µA | 0.78 nC @ 10 V | ±20V | 40 pF @ 10 V | - | 400mW (Ta) | 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
TQM123KCX RFG100V, 0.17A, SINGLE N-CHANNEL SM |
3,000 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 170mA (Ta) | 4.5V, 10V | 6Ohm @ 170mA, 10V | 2.5V @ 250µA | 2 nC @ 10 V | ±20V | 34.7 pF @ 50 V | - | 328mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23 |
|
|
TQM138KCX RFG60V, 0.36A, SINGLE N-CHANNEL SMA |
2,990 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 360mA (Ta) | 2.5V, 10V | 1.6Ohm @ 360mA, 10V | 1.5V @ 250µA | 1.8 nC @ 10 V | ±20V | 28 pF @ 30 V | - | 400mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23 |
|
|
TQM84KCX RFG-60V, -0.19A, SINGLE P-CHANNEL S |
2,975 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 190mA (Ta) | 4.5V, 10V | 6Ohm @ 190mA, 10V | 2.5V @ 250µA | 1.9 nC @ 10 V | ±20V | 38.2 pF @ 30 V | - | 403mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23 |
|
|
SSM3J16FU(TE85L,F)SMALL LOW RON PCH MOSFETS VDSS:- |
2,970 |
|
Tabla de datos |
- | SC-70, SOT-323 | Tape & Reel (TR) | Last Time Buy | P-Channel | MOSFET (Metal Oxide) | 20 V | 100mA (Ta) | 1.5V, 4V | 8Ohm @ 10mA, 4V | 1.1V @ 100µA | - | ±10V | 11 pF @ 3 V | - | 150mW (Ta) | 150°C | - | - | Surface Mount | USM |
|

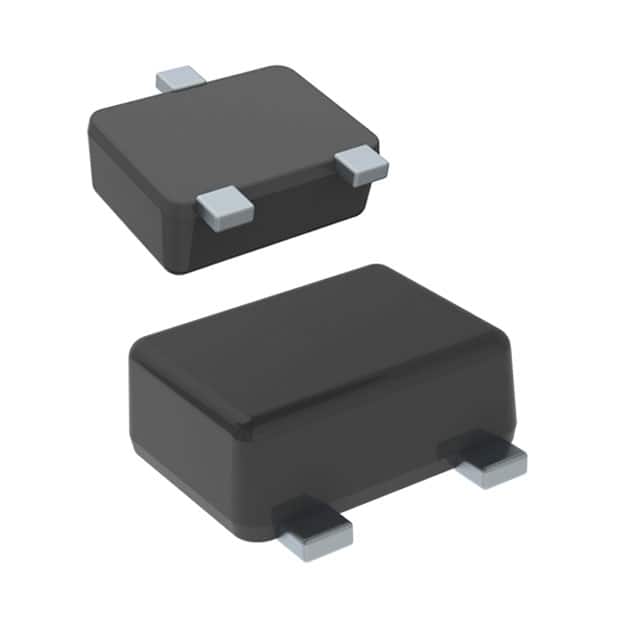

2N7002KTB_R1_00001SOT-523, MOSFET |
2,665 |
|
Tabla de datos |
- | SC-89, SOT-490 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 115mA (Ta) | 4.5V, 10V | 3Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.8 nC @ 4.5 V | ±20V | 35 pF @ 25 V | - | 200mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-523 Flat Leads |
|
|
TQM2N7002KCX RFG60V, 0.37A, SINGLE N-CHANNEL SMA |
2,000 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 370mA (Ta) | 4.5V, 10V | 1.6Ohm @ 370mA, 10V | 2.5V @ 250µA | 1.7 nC @ 10 V | ±20V | 27.5 pF @ 30 V | - | 416mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23 |
