FET, MOSFET
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo FET | Tecnología | Voltaje de drenaje a fuente (Vdss) | Corriente: drenaje continuo (Id) a 25 °C | Voltaje de excitación (máx. Rds activado, mín. Rds activado) | Rds activado (máx.) a Id, Vgs | Vgs(th) (máx.) a Id | Carga de compuerta (Qg) (máx.) a Vgs | Vgs (máx.) | Capacitancia de entrada (Ciss) (máx.) a Vds | Característica FET | Disipación de potencia (máx.) | Temperatura de funcionamiento | Grado | Calificación | Tipo de montaje | Proveedor Dispositivo Paquete |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPC100N04S52R8ATMA1MOSFET N-CH 40V 100A 8TDSON-34 |
4,819 |
|
Tabla de datos |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 7V, 10V | 2.8mOhm @ 50A, 10V | 3.4V @ 30µA | 45 nC @ 10 V | ±20V | 2600 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TDSON-8-34 |
|
RQ7L055BGTCRNCH 60V 5.5A, TSMT8, POWER MOSFE |
2,958 |
|
Tabla de datos |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 5.5A (Ta) | 4.5V, 10V | 29mOhm @ 5.5A, 10V | 2.5V @ 1mA | 7.6 nC @ 10 V | ±20V | 460 pF @ 30 V | - | 1.1W (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT8 |
|
DMTH4007LPSQ-13MOSFET N-CH 40V 15.5A PWRDI5060 |
998 |
|
Tabla de datos |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 15.5A (Ta), 100A (Tc) | 4.5V, 10V | 6.5mOhm @ 20A, 10V | 3V @ 250µA | 29.1 nC @ 10 V | ±20V | 1895 pF @ 30 V | - | 2.7W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI5060-8 |
|
NVMFS5C468NLAFT1GMOSFET N-CH 40V 13A/37A 5DFN |
2,024 |
|
Tabla de datos |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 13A (Ta), 37A (Tc) | 4.5V, 10V | 10.3mOhm @ 20A, 10V | 2V @ 250µA | 7.3 nC @ 10 V | ±20V | 570 pF @ 25 V | - | 3.5W (Ta), 28W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
IPD50N06S4L08ATMA2MOSFET N-CH 60V 50A TO252-31 |
5,818 |
|
Tabla de datos |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | 4.5V, 10V | 7.8mOhm @ 50A, 10V | 2.2V @ 35µA | 64 nC @ 10 V | ±16V | 4780 pF @ 25 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO252-3-11 |
|
SI3438DV-T1-E3MOSFET N-CH 40V 7.4A 6TSOP |
2,795 |
|
Tabla de datos |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 7.4A (Tc) | 4.5V, 10V | 35.5mOhm @ 5A, 10V | 3V @ 250µA | 20 nC @ 10 V | ±20V | 640 pF @ 20 V | - | 2W (Ta), 3.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
IRF710PBF-BE3MOSFET N-CH 400V 2A TO220AB |
2,462 |
|
Tabla de datos |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 2A (Tc) | - | 3.6Ohm @ 1.2A, 10V | 4V @ 250µA | 17 nC @ 10 V | ±20V | 170 pF @ 25 V | - | 36W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
IRFR9014TRPBF-BE3MOSFET P-CH 60V 5.1A DPAK |
1,270 |
|
Tabla de datos |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 5.1A (Tc) | 10V | 500mOhm @ 3.1A, 10V | 4V @ 250µA | 12 nC @ 10 V | ±20V | 270 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
IPD80R1K2P7ATMA1MOSFET N-CH 800V 4.5A TO252-3 |
14,906 |
|
Tabla de datos |
CoolMOS™ P7 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 4.5A (Tc) | 10V | 1.2Ohm @ 1.7A, 10V | 3.5V @ 80µA | 11 nC @ 10 V | ±20V | 300 pF @ 500 V | - | 37W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
NP23N06YDG-E1-AYMOSFET N-CH 60V 23A 8HSON |
10,000 |
|
Tabla de datos |
- | 8-SMD, Flat Lead Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 23A (Tc) | 5V, 10V | 27mOhm @ 11.5A, 10V | 2.5V @ 250µA | 41 nC @ 10 V | ±20V | 1800 pF @ 25 V | - | 1W (Ta), 60W (Tc) | 175°C (TJ) | - | - | Surface Mount | 8-HSON |
|
SQJ423EP-T1_BE3P-CHANNEL 40-V (D-S) 175C MOSFET |
3,000 |
|
Tabla de datos |
- | PowerPAK® SO-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 55A (Tc) | 4.5V, 10V | 14mOhm @ 10A, 10V | 2.5V @ 250µA | 130 nC @ 10 V | ±20V | 4500 pF @ 25 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
TSM500N15CS RLG150V, 11A, SINGLE N-CHANNEL POWE |
5,650 |
|
Tabla de datos |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 4A (Ta), 11A (Tc) | 10V | 50mOhm @ 4A, 10V | 4V @ 250µA | 20.5 nC @ 10 V | ±20V | 1123 pF @ 80 V | - | 12.7W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
.jpg)
|
RS3E075ATTB1PCH -30V -7.5A MIDDLE POWER MOSF |
2,336 |
|
Tabla de datos |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 7.5A (Ta) | 4.5V, 10V | 23.5mOhm @ 7.5A, 10V | 2.5V @ 1mA | 25 nC @ 10 V | ±20V | 1250 pF @ 15 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|

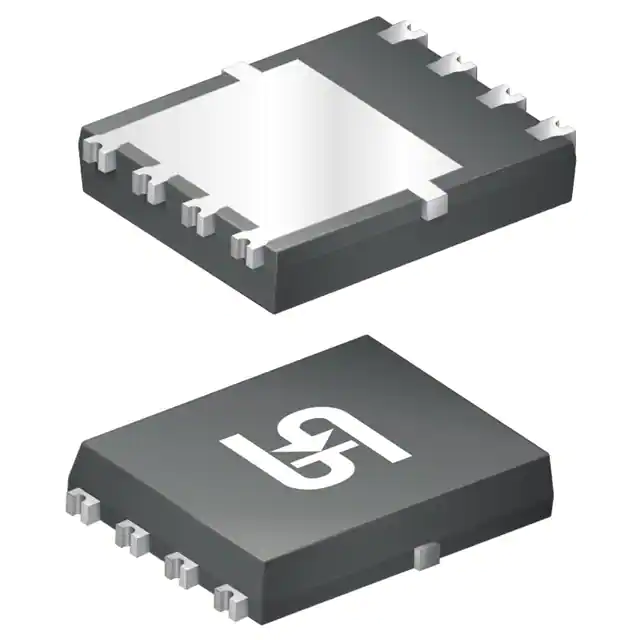

TQM070NB04CR RLGMOSFET N-CH 40V 15A/75A 8PDFNU |
7,500 |
|
Tabla de datos |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 15A (Ta), 75A (Tc) | 7V, 10V | 7mOhm @ 15A, 10V | 3.8V @ 250µA | 42 nC @ 10 V | ±20V | 3125 pF @ 20 V | - | 3.1W (Ta), 83W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 8-PDFNU (5x6) |
|
|
NP45N06VDK-E1-AYMOSFET N-CH 60V 45A TO252 |
7,430 |
|
Tabla de datos |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 45A (Tc) | 4.5V, 10V | 11.6mOhm @ 23A, 10V | 2.5V @ 250µA | 38 nC @ 10 V | ±20V | 2300 pF @ 25 V | - | 1.2W (Ta), 75W (Tc) | 175°C | - | - | Surface Mount | TO-252 (MP-3ZP) |
|
PSMN2R0-25YLDXMOSFET N-CH 25V 100A LFPAK56 |
4,326 |
|
Tabla de datos |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 100A (Tc) | 4.5V, 10V | 2.09mOhm @ 25A, 10V | 2.2V @ 1mA | 34.1 nC @ 10 V | ±20V | 2485 pF @ 12 V | Schottky Diode (Body) | 115W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
SISS08DN-T1-GE3MOSFET N-CH 25V 53.9/195.5A PPAK |
2,890 |
|
Tabla de datos |
TrenchFET® Gen IV | PowerPAK® 1212-8S | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 53.9A (Ta), 195.5A (Tc) | 4.5V, 10V | 1.23mOhm @ 15A, 10V | 2.2V @ 250µA | 82 nC @ 10 V | +20V, -16V | 3670 pF @ 12.5 V | - | 5W (Ta), 65.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8S |
|
RSH070N05GZETBMOSFET N-CH 45V 7A 8SOP |
2,500 |
|
Tabla de datos |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 45 V | 7A (Ta) | 4V, 10V | 25mOhm @ 7A, 10V | 2.5V @ 1mA | 16.8 nC @ 5 V | ±20V | 1000 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
IPD60R360PFD7SAUMA1MOSFET N-CH 600V 10A TO252-3 |
2,443 |
|
Tabla de datos |
CoolMOS™ PFD7 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 360mOhm @ 2.9A, 10V | 4.5V @ 140µA | 12.7 nC @ 10 V | ±20V | 534 pF @ 400 V | - | 43W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3-344 |
|
NVTFS4C25NWFTAGMOSFET N-CH 30V 10.1A/22.1A 8DFN |
1,470 |
|
Tabla de datos |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10.1A (Ta), 22.1A (Tc) | 4.5V, 10V | 17mOhm @ 10A, 10V | 2.2V @ 250µA | 10.3 nC @ 10 V | ±20V | 500 pF @ 15 V | - | 3W (Ta), 14.3W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
