FET, MOSFET
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo FET | Tecnología | Voltaje de drenaje a fuente (Vdss) | Corriente: drenaje continuo (Id) a 25 °C | Voltaje de excitación (máx. Rds activado, mín. Rds activado) | Rds activado (máx.) a Id, Vgs | Vgs(th) (máx.) a Id | Carga de compuerta (Qg) (máx.) a Vgs | Vgs (máx.) | Capacitancia de entrada (Ciss) (máx.) a Vds | Característica FET | Disipación de potencia (máx.) | Temperatura de funcionamiento | Grado | Calificación | Tipo de montaje | Proveedor Dispositivo Paquete |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STB23NM60NDMOSFET N-CH 600V 19.5A D2PAK |
4,930 |
|
Tabla de datos |
FDmesh™ II | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 19.5A (Tc) | 10V | 180mOhm @ 10A, 10V | 5V @ 250µA | 70 nC @ 10 V | ±25V | 2050 pF @ 50 V | - | 150W (Tc) | 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
STW56NM60NMOSFET N-CH 600V 45A TO247 |
2,978 |
|
Tabla de datos |
MDmesh™ II | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 45A (Tc) | 10V | 60mOhm @ 22.5A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±25V | 4800 pF @ 50 V | - | 300W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
IXFH88N20QMOSFET N-CH 200V 88A TO247AD |
4,100 |
|
- |
HiPerFET™, Q Class | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 88A (Tc) | 10V | 30mOhm @ 44A, 10V | 4V @ 4mA | 146 nC @ 10 V | ±30V | 4150 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
APT14M100SMOSFET N-CH 1000V 14A D3PAK |
3,568 |
|
Tabla de datos |
POWER MOS 8™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 14A (Tc) | 10V | 880mOhm @ 7A, 10V | 5V @ 1mA | 120 nC @ 10 V | ±30V | 3965 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D3PAK |
|
UF4C120053B7SSR1200V/53MO,SICFET,G4,TO263-7 |
3,537 |
|
Tabla de datos |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Bulk | Active | P-Channel | SiCFET (Silicon Carbide) | 1200 V | 34A (Tj) | 12V | 67mOhm @ 20A, 12V | 6V @ 10mA | 37.8 nC @ 15 V | ±20V | 1370 pF @ 800 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK-7L |
|
|
AOK065A60FDLINEAR IC |
4,983 |
|
- |
aMOS5™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 50A (Tc) | 10V | 65mOhm @ 25A, 10V | 4.5V @ 250µA | 115 nC @ 10 V | ±20V | 6120 pF @ 100 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 |
|
IXFT69N30PMOSFET N-CH 300V 69A TO268 |
3,302 |
|
Tabla de datos |
HiPerFET™, Polar | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 69A (Tc) | 10V | 49mOhm @ 500mA, 10V | 5V @ 4mA | 180 nC @ 10 V | ±20V | 4960 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
|
|
IXFH14N80MOSFET N-CH 800V 14A TO247AD |
2,560 |
|
- |
HiPerFET™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 14A (Tc) | 10V | 700mOhm @ 500mA, 10V | 4.5V @ 4mA | 200 nC @ 10 V | ±20V | 4870 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
|
UJ4C075033L8SSR750V/33MO,SICFET,G4,TOLL |
3,899 |
|
Tabla de datos |
- | 8-PowerSFN | Bulk | Active | P-Channel | SiCFET (Silicon Carbide) | 750 V | 44A (Tj) | 12V | 41mOhm @ 230A, 12V | 6V @ 10mA | 37.8 nC @ 15 V | ±20V | 1400 pF @ 400 V | - | 205W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TOLL |
|
R6020ANXMOSFET N-CH 600V 20A TO220FM |
9 |
|
Tabla de datos |
- | TO-220-3 Full Pack | Bulk | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 220mOhm @ 10A, 10V | 4.5V @ 1mA | 65 nC @ 10 V | ±30V | 2040 pF @ 25 V | - | 85W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
|
AOK042A60FDN |
3,812 |
|
Tabla de datos |
aMOS5™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 70A (Tc) | 10V | 42mOhm @ 25A, 10V | 4.2V @ 250µA | 175 nC @ 10 V | ±20V | 9165 pF @ 100 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 |
|
|
GS66504B-TRGS66504B-TR |
2,362 |
|
- |
- | 3-SMD, No Lead | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 650 V | 15A (Tc) | 6V | 130mOhm @ 4.5A, 6V | 1.3V @ 3.5mA | 3 nC @ 6 V | +7V, -10V | 130 pF @ 400 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | - |
|
IXFK80N15QMOSFET N-CH 150V 80A TO264AA |
4,378 |
|
- |
HiPerFET™, Q Class | TO-264-3, TO-264AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 80A (Tc) | 10V | 22.5mOhm @ 40A, 10V | 4V @ 4mA | 180 nC @ 10 V | ±20V | 4500 pF @ 25 V | - | 360W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264AA (IXFK) |
|
IRF450MOSFET N-CH 500V 12A TO204AA |
3,801 |
|
Tabla de datos |
HEXFET® | TO-204AA, TO-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 12A (Tc) | 10V | 500mOhm @ 12A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 2700 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-204AA (TO-3) |
|
STY100NS20FDMOSFET N-CH 200V 100A MAX247 |
3,872 |
|
Tabla de datos |
MESH OVERLAY™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 100A (Tc) | 10V | 24mOhm @ 50A, 10V | 4V @ 250µA | 360 nC @ 10 V | ±20V | 7900 pF @ 25 V | - | 450W (Tc) | 150°C (TJ) | - | - | Through Hole | MAX247™ |
|
|
STB25NM60NMOSFET N-CH 600V 21A D2PAK |
2,958 |
|
Tabla de datos |
MDmesh™ II | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 160mOhm @ 10.5A, 10V | 4V @ 250µA | 84 nC @ 10 V | ±25V | 2400 pF @ 50 V | - | 160W (Tc) | 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
R5016FNXMOSFET N-CH 500V 16A TO220FM |
2 |
|
Tabla de datos |
- | TO-220-3 Full Pack | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 16A (Tc) | 10V | 325mOhm @ 8A, 10V | 5V @ 1mA | 46 nC @ 10 V | ±30V | 1700 pF @ 25 V | - | 50W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
.jpg)
|
IXFX220N17T2MOSFET N-CH 170V 220A PLUS247-3 |
4,174 |
|
Tabla de datos |
HiPerFET™, TrenchT2™ | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 170 V | 220A (Tc) | 10V | 6.3mOhm @ 60A, 10V | 5V @ 8mA | 500 nC @ 10 V | ±20V | 31000 pF @ 25 V | - | 1250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
|
UJ4C075060L8SSB750V/60MO,SICFET,G4,TOLL |
3,995 |
|
Tabla de datos |
- | 8-PowerSFN | Bulk | Active | P-Channel | SiCFET (Silicon Carbide) | 750 V | 27.8A (Tj) | 12V | 74mOhm @ 20A, 12V | 6V @ 10mA | 37.8 nC @ 15 V | ±20V | 1420 pF @ 400 V | - | 155W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TOLL |
|

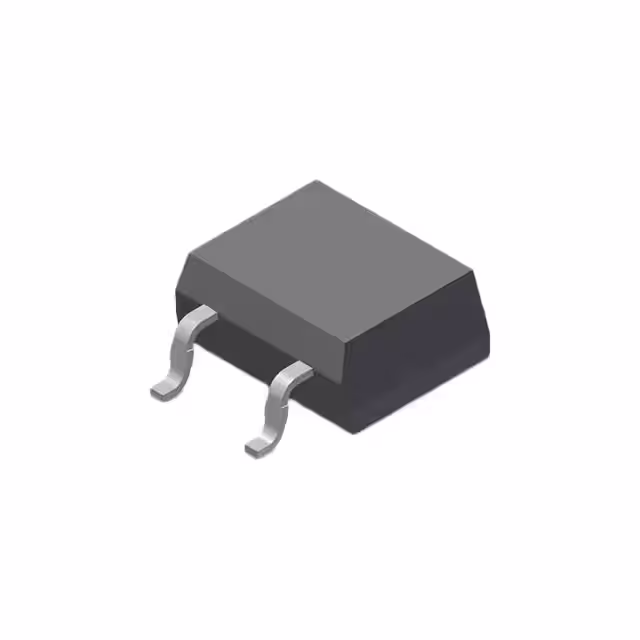

IXFT70N65X3HVMOSFET 70A 650V X3 TO268HV |
2,453 |
|
- |
HiPerFET™, Ultra X3 | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
