Condensadores de polímero de aluminio
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Embalaje | Estado del producto | Tipo | Capacitancia | Tolerancia | Voltaje - Nominal | ESR (resistencia en serie equivalente) | Vida útil a temperatura ambiente | Temperatura de funcionamiento | Clasificaciones | Aplicaciones | Características | Corriente de ondulación a baja frecuencia | Corriente de ondulación a alta frecuencia | Impedancia | Espaciado de cables | Tamaño/Dimensión | Altura - Asentado (Máx.) | Tamaño de la superficie de montaje | Tipo de montaje |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20SEP100MX+TCAP ALUM POLY 100UF 20% 20V TH |
1,268 |
|
Tabla de datos |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 20 V | 35mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 128.5 mA @ 120 Hz | 2.57 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
35SVPD8R2MCAP ALUM POLY 8.2UF 20% 35V SMD |
939 |
|
Tabla de datos |
OS-CON™, SVPD | Tape & Reel (TR) | Active | Polymer | 8.2 µF | ±20% | 35 V | 70mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 20 mA @ 120 Hz | 400 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APD1012101M063RCAP ALUM POLY 100UF 20% 63V SMD |
5,539 |
|
Tabla de datos |
APD | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 63 V | 36mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
APXS100ARA151MH70GCAP ALUM POLY 150UF 20% 10V SMD |
4,000 |
|
Tabla de datos |
NPCAP™-PXS | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.76 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
GYA1J560MCW1GSCAP ALUM HYBRID 56UF 20% 63V SMD |
3,560 |
|
Tabla de datos |
GYA | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 210 mA @ 120 Hz | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
32SEPF68M+TSSCAP ALUM POLY 68UF 20% 32V TH |
1,618 |
|
Tabla de datos |
OS-CON™, SEPF | Cut Tape (CT) | Active | Polymer | 68 µF | ±20% | 32 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|

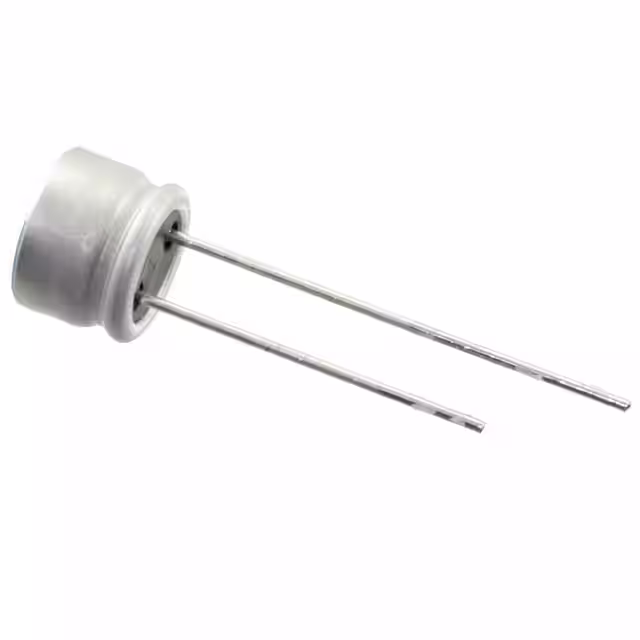

PLF1E220MCL7CAP ALUM POLY 22UF 20% 25V TH |
337 |
|
Tabla de datos |
PLF | Bulk | Active | Polymer | 22 µF | ±20% | 25 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|
16SVPB33MCAP ALUM POLY 33UF 20% 16V SMD |
200 |
|
Tabla de datos |
OS-CON™, SVPB | Tape & Reel (TR) | Last Time Buy | Polymer | 33 µF | ±20% | 16 V | 40mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 83.5 mA @ 120 Hz | 1.67 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.197" (5.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
6SVP220MCAP ALUM POLY 220UF 20% 6.3V SMD |
1,255 |
|
Tabla de datos |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCF1A271MCL1GSCAP ALUM POLY 270UF 20% 10V SMD |
950 |
|
Tabla de datos |
PCF | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 10 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
20SEQP47MCAP ALUM POLY 47UF 20% 20V TH |
238 |
|
Tabla de datos |
OS-CON™, SEQP | Bulk | Active | Polymer | 47 µF | ±20% | 20 V | 45mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 29.9 mA @ 120 Hz | 598 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|
EEH-AZF1E271BCAP ALUM HYBRID 270UF 20% 25V TH |
190 |
|
Tabla de datos |
ZF | Cut Tape (CT) | Active | Hybrid | 270 µF | ±20% | 25 V | 20mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 150 mA @ 100 Hz | 1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
6SVQP100MCAP ALUM POLY 100UF 20% 6.3V SMD |
17,917 |
|
Tabla de datos |
OS-CON™, SVQP | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 40mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 90.5 mA @ 120 Hz | 1.81 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RNS1E220MDN1KXCAP ALUM POLY 22UF 20% 25V TH |
2,701 |
|
Tabla de datos |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 22 µF | ±20% | 25 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 340 mA @ 120 Hz | 3.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
-Photo-Taped-Size-F.jpg)
|

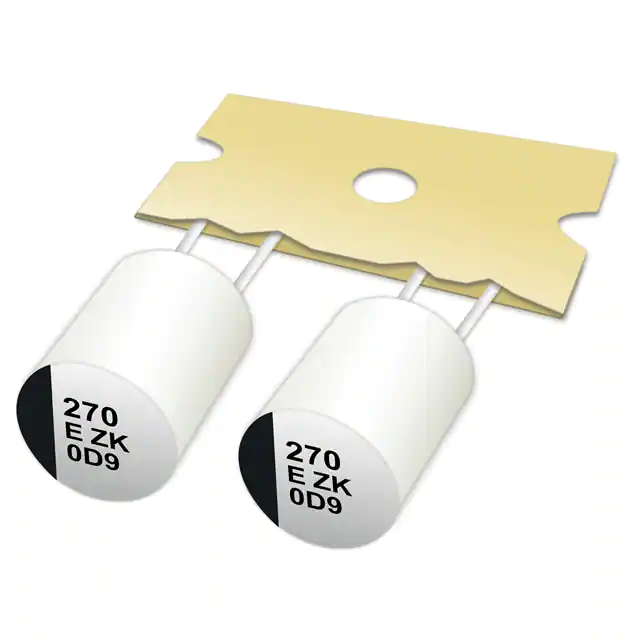

EEH-AZK1E271BCAP ALUM HYBRID 270UF 20% 25V TH |
2,009 |
|
Tabla de datos |
ZK | Cut Tape (CT) | Active | Hybrid | 270 µF | ±20% | 25 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
PLF0E821MCO6TDCAP ALUM POLY 820UF 20% 2.5V TH |
1,408 |
|
Tabla de datos |
PLF | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
35SVF22MCAP ALUM POLY 22UF 20% 35V SMD |
1,334 |
|
Tabla de datos |
OS-CON™, SVF | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 35 V | 35mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 41 mA @ 120 Hz | 820 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
RNS1E220MDN1CAP ALUM POLY 22UF 20% 25V TH |
986 |
|
Tabla de datos |
FPCAP, RNS | Bulk | Active | Polymer | 22 µF | ±20% | 25 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 340 mA @ 120 Hz | 3.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PCV1J5R6MCL1GSCAP ALUM POLY 5.6UF 20% 63V SMD |
568 |
|
Tabla de datos |
PCV | Tape & Reel (TR) | Active | Polymer | 5.6 µF | ±20% | 63 V | 105mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 700 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
32SEPF68MCAP ALUM POLY 68UF 20% 32V TH |
498 |
|
Tabla de datos |
OS-CON™, SEPF | Bulk | Active | Polymer | 68 µF | ±20% | 32 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
