Condensadores de polímero de aluminio
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Embalaje | Estado del producto | Tipo | Capacitancia | Tolerancia | Voltaje - Nominal | ESR (resistencia en serie equivalente) | Vida útil a temperatura ambiente | Temperatura de funcionamiento | Clasificaciones | Aplicaciones | Características | Corriente de ondulación a baja frecuencia | Corriente de ondulación a alta frecuencia | Impedancia | Espaciado de cables | Tamaño/Dimensión | Altura - Asentado (Máx.) | Tamaño de la superficie de montaje | Tipo de montaje |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10SEP270M+TCAP ALUM POLY 270UF 20% 10V TH |
1,145 |
|
Tabla de datos |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 10 V | 25mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole |
|

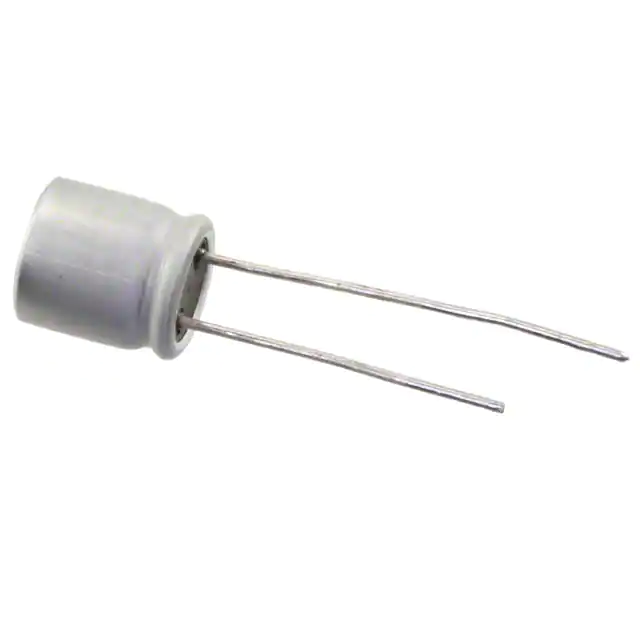

PLS0J561MCO6TDCAP ALUM POLY 560UF 20% 6.3V TH |
773 |
|
Tabla de datos |
PLS | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
PLS0J561MCO6CAP ALUM POLY 560UF 20% 6.3V TH |
305 |
|
Tabla de datos |
PLS | Bulk | Active | Polymer | 560 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
EEH-ZC1J820PCAP ALUM HYBRID 82UF 20% 63V SMD |
276 |
|
Tabla de datos |
ZC | Tape & Reel (TR) | Active | Hybrid | 82 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 210 mA @ 120 Hz | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
HHXA250ARA560MF61GCAP ALUM HYBRID 56UF 20% 25V SMD |
1,816 |
|
Tabla de datos |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 56 µF | ±20% | 25 V | 50mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
6SEP330M+TCAP ALUM POLY 330UF 20% 6.3V TH |
616 |
|
Tabla de datos |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 6.3 V | 25mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
PCF1D220MCL1GSCAP ALUM POLY 22UF 20% 20V SMD |
1,998 |
|
Tabla de datos |
PCF | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 20 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APSG160ELL561MHB5JCAP ALUM POLY 560UF 20% 16V TH |
1,959 |
|
Tabla de datos |
NPCAP™-PSG | Bulk | Active | Polymer | 560 µF | ±20% | 16 V | 8mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
-Photo-Taped-Size-F.jpg)
|

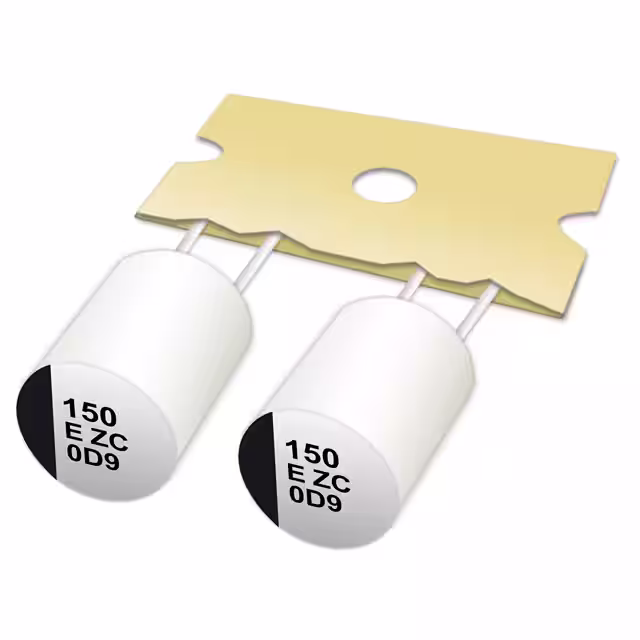

EEH-AZC1J470BCAP ALUM HYBRID 47UF 20% 63V TH |
1,563 |
|
Tabla de datos |
ZC | Cut Tape (CT) | Active | Hybrid | 47 µF | ±20% | 63 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 165 mA @ 100 Hz | 1.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
|
EEH-AZC1V151BCAP ALUM HYBRID 150UF 20% 35V TH |
1,508 |
|
Tabla de datos |
ZC | Cut Tape (CT) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 240 mA @ 100 Hz | 1.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
EEH-ZT1J680PCAP ALUM HYBRID 68UF 20% 63V SMD |
824 |
|
Tabla de datos |
ZT | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 63 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 100 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
870135374005CAP ALUM POLY 330UF 20% 16V TH |
616 |
|
Tabla de datos |
WCAP-PTHT | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 280 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
HHXA630ARA100MF61GCAP ALUM HYBRID 10UF 20% 63V SMD |
1,990 |
|
Tabla de datos |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 10 µF | ±20% | 63 V | 120mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 700 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
PCF1E100MCL1GSCAP ALUM POLY 10UF 20% 25V SMD |
1,969 |
|
Tabla de datos |
PCF | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 25 V | 60mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
875075155010CAP ALUM POLY 1000UF 20% 6.3V |
1,263 |
|
Tabla de datos |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 120 Hz | 5.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.461" (11.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCF1D100MCL1GSCAP ALUM POLY 10UF 20% 20V SMD |
1,048 |
|
Tabla de datos |
PCF | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 20 V | 120mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 900 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
A781MN187M1VLAS025CAP ALUMHYB 180UF 20% 35V SMD |
3,330 |
|
Tabla de datos |
A781 | Tape & Reel (TR) | Active | Hybrid | 180 µF | ±20% | 35 V | 25mOhm | 2000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 2.8 A @ 100 Hz | 7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
20SVPA47MCAP ALUM POLY 47UF 20% 20V SMD |
2,754 |
|
Tabla de datos |
OS-CON™, SVPA | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 20 V | 33mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 131.5 mA @ 120 Hz | 2.63 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXE100ARA560ME61GCAP ALUM POLY 56UF 20% 10V SMD |
1,753 |
|
Tabla de datos |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 10 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.31 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
25SVPK82MCAP ALUM POLY 82UF 20% 25V SMD |
127 |
|
Tabla de datos |
OS-CON™, SVPK | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 25 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 48 mA @ 120 Hz | 960 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
