Condensadores de polímero de aluminio
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Embalaje | Estado del producto | Tipo | Capacitancia | Tolerancia | Voltaje - Nominal | ESR (resistencia en serie equivalente) | Vida útil a temperatura ambiente | Temperatura de funcionamiento | Clasificaciones | Aplicaciones | Características | Corriente de ondulación a baja frecuencia | Corriente de ondulación a alta frecuencia | Impedancia | Espaciado de cables | Tamaño/Dimensión | Altura - Asentado (Máx.) | Tamaño de la superficie de montaje | Tipo de montaje |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPS1C101MCN1GSCAP ALUM POLY 100UF 20% 16V SMD Nichicon |
3,830 |
|
Tabla de datos |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 320 mA @ 120 Hz | 3.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RPS0G221MCN1GSCAP ALUM POLY 220UF 20% 4V SMD Nichicon |
2,677 |
|
Tabla de datos |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 4 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 270 mA @ 120 Hz | 2.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RNS1C101MDN1CAP ALUM POLY 100UF 20% 16V TH Nichicon |
1,443 |
|
Tabla de datos |
FPCAP, RNS | Bulk | Active | Polymer | 100 µF | ±20% | 16 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 390 mA @ 120 Hz | 3.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|

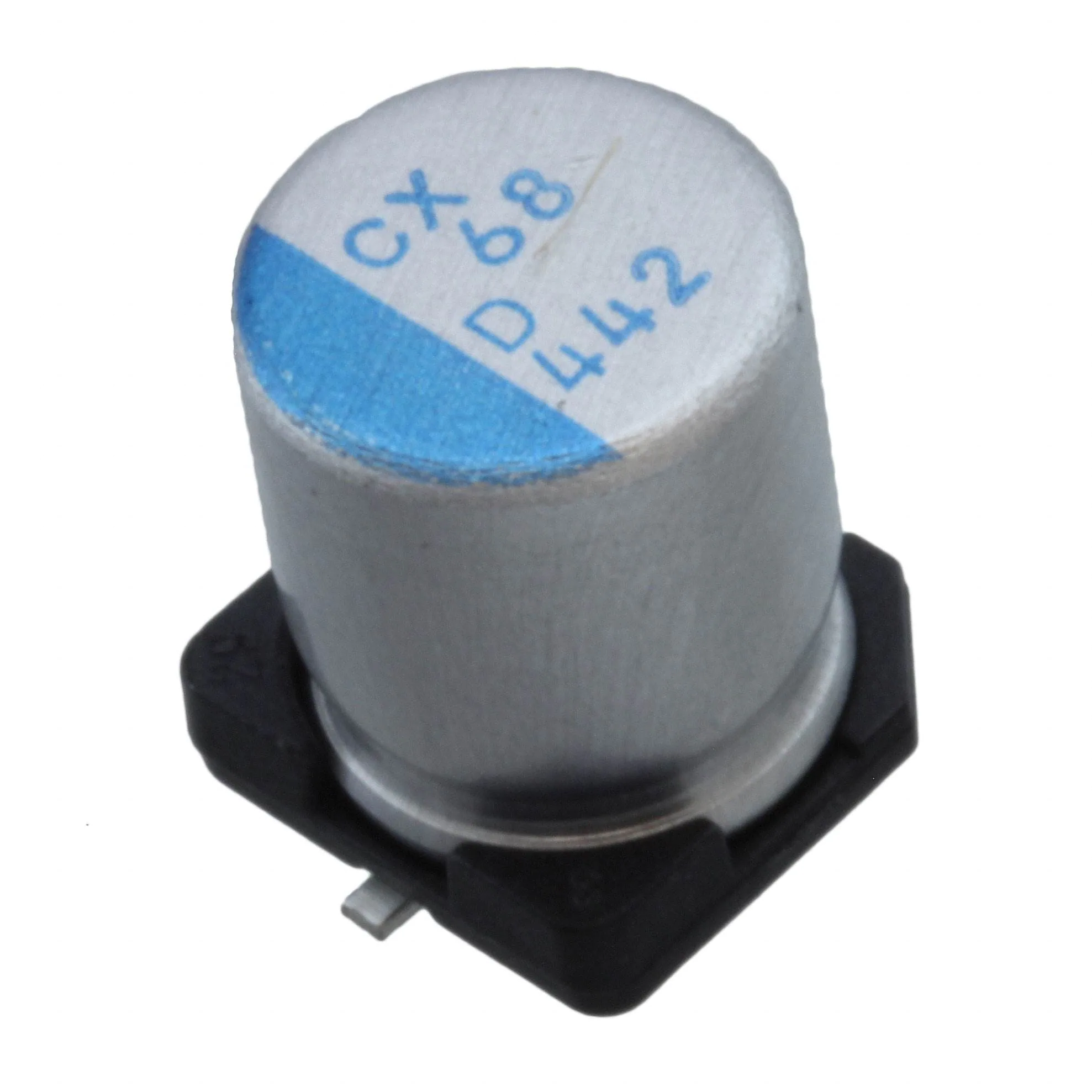

PCX1C101MCL1GSCAP ALUM POLY 100UF 20% 16V SMD Nichicon |
4,583 |
|
Tabla de datos |
PCX | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 33mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.319" (8.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RR71C151MDN1CAP ALUM POLY 150UF 20% 16V TH Nichicon |
1,487 |
|
Tabla de datos |
FPCAP, RR7 | Bulk | Active | Polymer | 150 µF | ±20% | 16 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|

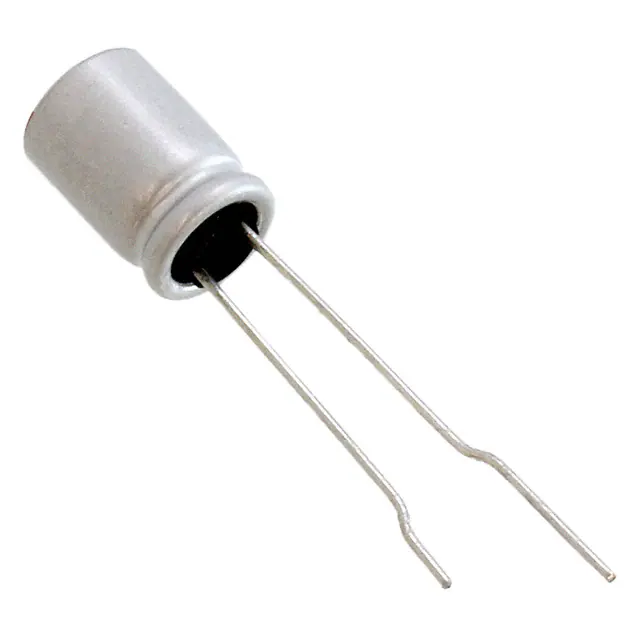

RNU0J221MDS1JXCAP ALUM POLY 220UF 20% 6.3V TH Nichicon |
1,168 |
|
Tabla de datos |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 220 µF | ±20% | 6.3 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 320 mA @ 120 Hz | 3.2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole |
|
RNU1C181MDN1KXCAP ALUM POLY 180UF 20% 16V TH Nichicon |
1,012 |
|
Tabla de datos |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 180 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RPS1A470MCN1GSCAP ALUM POLY 47UF 20% 10V SMD Nichicon |
17,252 |
|
Tabla de datos |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 10 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 210 mA @ 120 Hz | 2.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
RS80E821MDN1JTCAP ALUM POLY 820UF 20% 2.5V TH Nichicon |
5,382 |
|
Tabla de datos |
FPCAP, RS8 | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole |
|
|
RPS1A121MCN1GSCAP ALUM POLY 120UF 20% 10V SMD Nichicon |
2,334 |
|
Tabla de datos |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 10 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
