Condensadores de polímero de aluminio
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Embalaje | Estado del producto | Tipo | Capacitancia | Tolerancia | Voltaje - Nominal | ESR (resistencia en serie equivalente) | Vida útil a temperatura ambiente | Temperatura de funcionamiento | Clasificaciones | Aplicaciones | Características | Corriente de ondulación a baja frecuencia | Corriente de ondulación a alta frecuencia | Impedancia | Espaciado de cables | Tamaño/Dimensión | Altura - Asentado (Máx.) | Tamaño de la superficie de montaje | Tipo de montaje |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

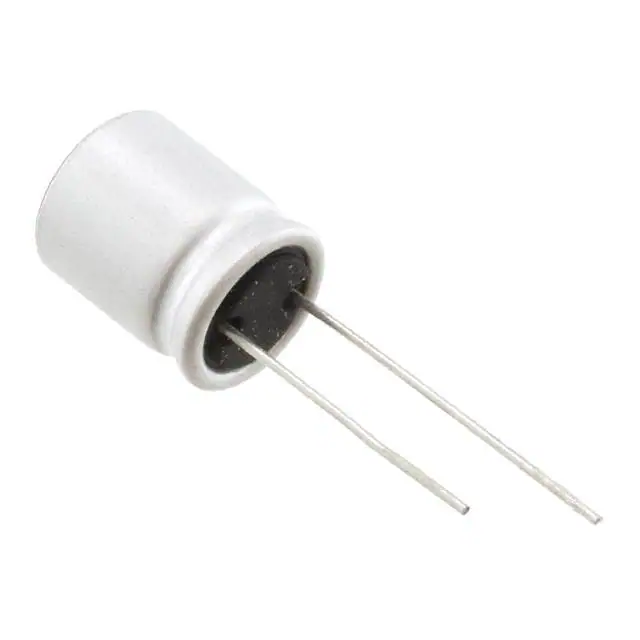

RNS1D101MDN1PHCAP ALUM POLY 100UF 20% 20V TH Nichicon |
2,316 |
|
Tabla de datos |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 20 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 450 mA @ 120 Hz | 4.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
RSL0J151MCN1GBCAP ALUM POLY 150UF 20% 6.3V SMD Nichicon |
1,759 |
|
Tabla de datos |
FPCAP, RSL | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 320 mA @ 120 Hz | 3.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.165" (4.20mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
RNS1D330MDS1JXCAP ALUM POLY 33UF 20% 20V TH Nichicon |
3,844 |
|
Tabla de datos |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 33 µF | ±20% | 20 V | 49mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 220 mA @ 120 Hz | 2.2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole |
|
RL80G821MDN1KXCAP ALUM POLY 820UF 20% 4V TH Nichicon |
4,403 |
|
Tabla de datos |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 4 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
RSS0J331MCN1GSCAP ALUM POLY 330UF 20% 6.3V SMD Nichicon |
5,477 |
|
Tabla de datos |
FPCAP, RSS | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|

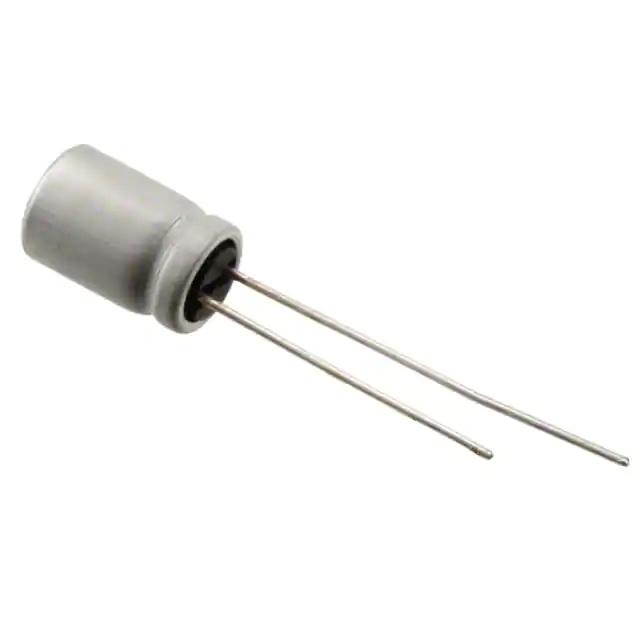

PLF1A680MDL4TDCAP ALUM POLY 68UF 20% 10V TH Nichicon |
6,129 |
|
Tabla de datos |
PLF | Cut Tape (CT) | Active | Polymer | 68 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.413" (10.50mm) | - | Through Hole |
|
PCF1A560MCL1GSCAP ALUM POLY 56UF 20% 10V SMD Nichicon |
1,721 |
|
Tabla de datos |
PCF | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
PCF1A330MCL1GSCAP ALUM POLY 33UF 20% 10V SMD Nichicon |
1,426 |
|
Tabla de datos |
PCF | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 10 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.5 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
RNU1C101MDS1CAP ALUM POLY 100UF 20% 16V TH Nichicon |
3,200 |
|
Tabla de datos |
FPCAP, RNU | Bulk | Active | Polymer | 100 µF | ±20% | 16 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 282 mA @ 120 Hz | 2.82 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole |
|

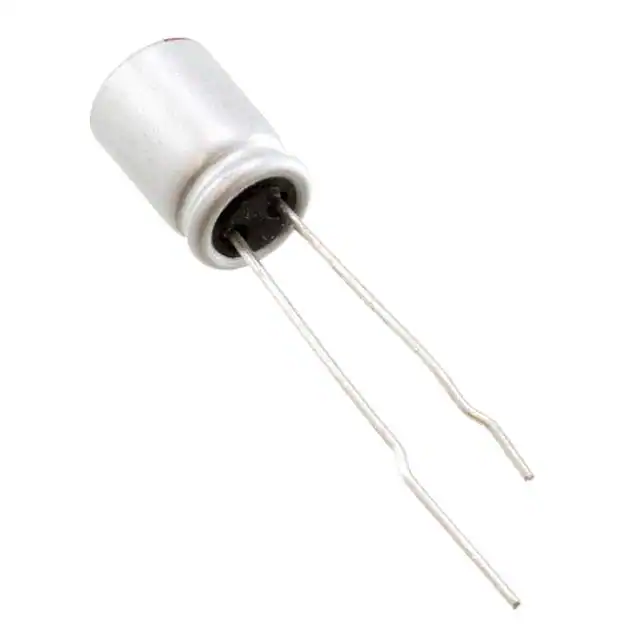

RNU1C101MDS1JXCAP ALUM POLY 100UF 20% 16V TH Nichicon |
1,421 |
|
Tabla de datos |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 16 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 282 mA @ 120 Hz | 2.82 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.453" (11.50mm) | - | Through Hole |
