Bobinas de carga inalámbrica

制造商	Serie	Embalaje	Estado del producto	Función	Tipo	Inductancia	Tolerancia	Resistencia de CC (DCR)	Q a frecuencia	Clasificación de corriente (amperios)	Corriente - Saturación (Isat)	Frecuencia: autorresonante	Temperatura de funcionamiento	Tamaño/Dimensión
Abracon LLC Adafruit Industries LLC Central Technologies ITG Electronics, Inc. Molex Pulse Electronics QST RDI, Inc. Signal Transformer TDK Corporation Vishay Dale Würth Elektronik	- AWCCA AWCCA-107T52 AWCCA-38R32 AWCCA-48R32 AWCCA-50N50 AWCCA-53N53 CTRX103010BF CTRX324517SF CTRX324815BF CTTX1065360SF CTTX504335BF CTTX504424SF CTTX505024SF CTTX505035BF NuCurrent, PowerLife, 146179 RWC SCR SCT SRX STX SWC WCC WCT WE-WPCC WR WRM WRSC WRSR WT WTM	Bag Box Bulk Tape & Box (TB) Tray	Active Discontinued at Digi-Key Not For New Designs Obsolete	- Receiver Receiver, Transmitter Transmitter	- 1 Coil, 1 Layer 1 Coil, 1 Layer, Bifilar 1 Coil, 2 Layer 1 Coil, 2 Layer, Bifilar 1 Coil, 3 Layer 1 Coil, 3 Layer, Bifilar 1 Coil, 4 Layer 1 Coil, 6 Layer 2 Coil, 1 Layer 3 Coil, 1 Layer 3 Coil, 1 Layer, Bifilar	- 10.1µH 10.2µH 10.2µH, 9.8µH, 10.2µH 10.5µH 10.65µH 10.68µH 10.6µH 10.7µH 10.8µH 10µH 11.1µH 11.3µH 11.3µH, 11.3µH, 11.3µH 11.5 ~ 12.5µH 11.5µH 11.5µH, 12.5µH 11.5µH, 12µH 11.6µH 11.8µH 11.9µH 11µH 12.0µH, 11.5µH, 12.0µH 12.3µH 12.5µH 12.5µH, 11.5µH 12.5µH, 11.5µH, 12.5µH 12.6µH 12.8µH 12.9µH 12µH 12µH, 11.5µH 13.3µH 13.9µH 13µH 14.3µH 14.5µH 14.9µH 14µH 15.8µH 15µH 16.2µH 16.6µH 16.7µH 16.8µH 17.3µH 18µH 19.5µH 19.6µH 19µH 2.5µH 2.6µH 2.76µH 2.9µH 20.9µH 22µH 24.2µH 24µH 24µH, 700nH 25µH 26µH 27.1µH 27.9µH 27µH 29.5µH 3.3µH 3.8µH 31.8µH 3µH 4.95µH 46µH 47µH 48µH 4µH 5.3µH 5.4µH 5.8µH 5µH 6.2µH 6.3µH 6.5µH 6.5µH, 7µH 6.8µH 6.8µH, 6.5µH, 6.8µH 6.9µH, 6.4µH 6.9µH, 6.4µH, 6.9µH 6µH 7.1µH 7.2µH 7.3µH 7.4µH 7.5µH 7.5µH, 8.5µH 7.8µH, 1.6µH 7.9µH 8.23µH 8.32µH 8.3µH 8.5µH 8.5µH, 7.5µH, 8.5µH 8.6µH 8.8µH, 1.4µH 8.9µH 8µH 8µH, 1.4µH 9.6µH, 5.6µH 9.75µH 9.7µH 9.8µH, 10.2µH 9.8µH, 10.2µH, 9.8µH 9.9µH	- ±0.5µH ±10% ±2% ±5%	- 1.15Ohm Max 1.1mOhm 1.1Ohm Max 1.21Ohm Max 1.25Ohm 1.27Ohm Max 1.34Ohm 1.4Ohm Max 1.8mOhm 100mOhm 100mOhm Max 110mOhm 120mOhm 125mOhm Max 12mOhm Max 130mOhm 140mOhm 149mOhm Max 14mOhm 150mOhm 160mOhm 160mOhm Max 165mOhm 165mOhm Max 170mOhm 178mOhm 180mOhm 180mOhm Max 183mOhm 185mOhm 187mOhm 18mOhm Max 190mOhm 190mOhm Max 19mOhm 1Ohm 200mOhm 200mOhm Max 220mOhm 220mOhm Max, 100mOhm Max 235mOhm 240mOhm 240mOhm Max 245mOhm 24mOhm Max 25mOhm 25mOhm Max 260mOhm 270mOhm 270mOhm Max 275mOhm 29.7mOhm Max 290mOhm 300mOhm 30mOhm 30mOhm Max 310mOhm 315mOhm 320mOhm 330mOhm 330mOhm Max 33mOhm 340mOhm 340mOhm Max 340mOhm Max, 90mOhm Max 350mOhm 355mOhm 355mOhm Max 357mOhm 35mOhm 35mOhm Max 366mOhm 366mOhm Max 380mOhm Max 38mOhm 390mOhm 400mOhm 400mOhm Max, 100mOhm Max 40mOhm 40mOhm Max 410mOhm 427mOhm 430mOhm 430mOhm Max 440mOhm Max 450mOhm 45mOhm 45mOhm Max 460mOhm 48mOhm 48mOhm Max 500mOhm 50mOhm 50mOhm Max 51mOhm Max 520mOhm 520mOhm Max 52mOhm Max 550mOhm 550mOhm, 38mOhm 55mOhm 55mOhm Max 56mOhm 56mOhm Max 60mOhm 60mOhm Max 60mOhm Max, 65mOhm Max 60mOhm, 65mOhm Max 650mOhm 650mOhm Max 65mOhm 65mOhm Max 700mOhm 70mOhm 72mOhm 72mOhm Max 750mOhm 750mOhm Max 75mOhm 75mOhm Max 780mOhm Max 800mOhm 80mOhm 80mOhm Max 83mOhm Max 85mOhm Max 90mOhm 90mOhm, 30mOhm 950mOhm	- 10 @ 100kHz 10 @ 125kHz 10.4 @ 100kHz 100 @ 100kHz 100 @ 100kHz, 100 @ 100kHz, 100 @ 100kHz 100 @ 125kHz 104 @ 100kHz 11 @ 100kHz 110 @ 100kHz, 100 @ 100kHz, 110 @ 100kHz 110 @ 125kHz 115 @ 125kHz 115 @ 6.78MHz 120 @ 100kHz 120 @ 100kHZ, 110 @ 100kHZ 120 @ 125kHz 120 @ 125kHz, 115 @ 125kHz 125 @ 125kHz, 30 @ 125kHz 13 @ 125kHz 130 @ 125kHz 135 @ 125kHz 140 @ 125kHz 145 @ 125kHz, 130 @ 125kHz, 145 @ 125kHz 15 @ 100kHz 150 @ 125kHz, 145 @ 125kHz 16 @ 125kHz 160 @ 100kHz 160 @ 6.78MHz 163 @ 100kHz 165 @ 100kHz 17 @ 100kHz 17 @ 125kHz 170 @ 100kHz 170 @ 125kHz 18 @ 125kHz 18 @ 200kHz, 160 @ 200kHz 18.5 @ 100kHz 180 @ 125kHz 185 @ 200kHz 19 @ 125kHz 19 @ 125kHz, 47 @ 125kHz 190 @ 200kHz 20 @ 100kHz 20 @ 125kHz 200 @ 100kHz 200 @ 200kHz 21 @ 125kHz 22 @ 100kHz 220 @ 125kHz 23 @ 200kHz 24 @ 100kHz 24 @ 200kHz 25 @ 100kHz 25 @ 125kHz 25 @ 200kHz 26 @ 100kHz 27 @ 100kHz 28 @ 100kHz 28 @ 125kHz 28.5 @ 200kHz 29 @ 200kHz 30 @ 125kHz 30 @ 125Khz, 47 @ 125kHz 30 @ 200kHz 32 @ 125kHz 33 @ 100kHz 33 @ 125kHz 34 @ 100kHz 35 @ 125kHz 38 @ 100kHz 38 @ 200kHz 40 @ 100kHz 40 @ 125kHz 42 @ 125kHz 45 @ 125kHz 50 @ 100kHz, 45 @ 100kHz, 50 @ 100kHz 50 @ 125kHz 55 @ 125kHz 60 @ 100kHz 60 @ 125kHz 60 @ 200kHz 65 @ 100kHz 65 @ 200kHz 66 @ 100kHz 70 @ 100kHz 72 @ 100kHz 75 @ 100kHz 8.5 @ 100kHz 80 @ 100kHz 80 @ 125kHz 85 @ 100kHz 90 @ 100kHz 90 @ 125kHz 90 @ 6.78MHz 97 @ 100kHz 98 @ 100kHz 98.5 @ 100kHz 99 @ 100kHz	- 0.8A 1.1A 1.25A 1.2A 1.55A 1.5A 1.5A, 4A 1.7A 1.87A 10.6A 10A 11.1A 11A 12A 13A 18A 1A 2.1A 2.4A 2.5A 2.6A 2.6A, 5A 2.9A 21A 2A 2A, 5A 3.5A 3A 400mA 4A 5.4A 5.5A 5.7A 500mA 5A 6.5A 600mA 6A 6A, 13A 7.5A 700mA 7A 8.5A 800mA 8A 9.5A 9A 9A, 10A, 9A	- 1.5A 10A 12A 15A 16A 18A 1A 2.4A 2.5A 20A 21A 22A 24A 27A 2A 30A 36A 3A 3A, 7A 40A 4A 5A 5A, 5A 6A 8A	- 10MHz 11MHz 12.7MHz 12MHz 13MHz 14.5MHz 15MHz 15MHz, 19MHz 16MHz 17.5MHz, 19MHz 18.5MHz 19MHz 2.8MHz 2.9MHz 20MHz 21MHz 22MHz 22MHz, 16MHz 22MHz, 24MHz 23MHz 24MHz 25MHz 26MHz 27MHz 32MHz 38MHz 3MHz 5.7MHz 5MHz 6.4MHz 6MHz 7.5MHz 7MHz 7MHz, 63MHz 8.8MHz 8MHz	- -20°C ~ 105°C -20°C ~ 60°C -20°C ~ 85°C -25°C ~ 105°C -25°C ~ 85°C -30°C ~ 70°C -40°C ~ 105°C -40°C ~ 120°C -40°C ~ 125°C -40°C ~ 85°C -55°C ~ 105°C 0°C ~ 40°C	- 0.24" Dia x 0.08" H (6.0mm x 2.0mm) 0.24" Dia x 0.16" H (6.0mm x 4.0mm) 0.39" Dia x 0.07" H (10.0mm x 1.7mm) 0.41" Dia x 0.07" H (10.3mm x 1.9mm) 0.43" Dia x 0.06" H (11.0mm x 1.5mm) 0.43" Dia x 0.07" H (11.0mm x 1.7mm) 0.47" Dia x 0.01" H (12.0mm x 0.3mm) 0.47" L x 0.47" W x 0.04" H (12.0mm x 12.0mm x 1.1mm) 0.59" Dia x 0.02" H (15.0mm x 0.6mm) 0.59" Dia x 0.10" H (15.0mm x 2.6mm) 0.60" Dia x 0.09" H (15.3mm x 2.2mm) 0.67" Dia x 0.03" H (17.0mm x 0.8mm) 0.72" Dia x 0.04" H (18.3mm x 1.0mm) 0.75" Dia x 0.03" H (19.0mm x 0.8mm) 0.79" Dia x 0.02" H (20.0mm x 0.6mm) 0.79" Dia x 0.03" H (20.0mm x 0.8mm) 0.79" Dia x 0.08" H (20.0mm x 2.0mm) 0.79" Dia x 0.11" H (20.0mm x 2.7mm) 0.79" L x 0.79" W x 0.03" H (20.0mm x 20.0mm x 0.8mm) 0.79" L x 0.79" W x 0.04" H (20.0mm x 20.0mm x 1.0mm) 0.80" Dia x 0.10" H (20.3mm x 2.7mm) 0.807" Dia x 0.110" H (20.50mm x 2.80mm) 0.81" Dia x 0.10" H (20.5mm x 2.6mm) 0.87" Dia x 0.03" H (22.0mm x 0.9mm) 0.97" Dia x 0.09" H (24.5mm x 2.4mm) 0.98" Dia x 0.08" H (25.0mm x 2.1mm) 1.02" Dia x 0.03" W (26.0mm x 0.8mm) 1.02" Dia x 0.05" H (26.0mm x 1.3mm) 1.02" L x 0.75" W x 0.02" H (26.0mm x 19.0mm x 0.4mm) 1.02" L x 1.02" W x 0.05" H (26.0mm x 26.0mm x 1.3mm) 1.035" Dia x 0.019" H (26.30mm x 0.49mm) 1.04" Dia x 0.02" H (26.5mm x 0.5mm) 1.06" Dia x 0.15" H (27.0mm x 3.7mm) 1.10" L x 0.59" W x 0.03" H (28.0mm x 15.0mm x 0.7mm) 1.10" L x 0.59" W x 0.03" H (28.0mm x 15.0mm x 0.8mm) 1.12" Dia x 0.10" H (28.4mm x 2.4mm) 1.14" L x 1.14" W x 0.04" H (29.0mm x 29.0mm x 0.9mm) 1.18" Dia x 0.02" H (30.0mm x 0.5mm) 1.18" Dia x 0.08" H (30.0mm x 2.0mm) 1.18" L x 0.39" W x 0.03" H (30.0mm x 10.0mm x 0.7mm) 1.18" L x 0.39" W x 0.04" H (30.0mm x 10.0mm x 1.0mm) 1.18" L x 1.16" W x 0.03" H (30.0mm x 29.6mm x 1.0mm) 1.18" L x 1.17" W x 0.03" H (30.0mm x 29.6mm x 0.9mm) 1.18" L x 1.18" W x 0.07" H (30.0mm x 30.0mm x 1.9mm) 1.20" L x 1.40" W x 0.08" H (30.5mm x 35.5mm x 2.0mm) 1.220" Dia x 0.098" H (31.00mm x 2.50mm) 1.26" L x 0.87" W (32.0mm x 22.0mm) 1.26" L x 0.87" W x 0.12" H (32.0mm x 22.0mm x 3.0mm) 1.34" L x 1.04" W x 0.04" H (34.0mm x 26.5mm x 0.9mm) 1.34" L x 1.05" W x 0.04" H (34.0mm x 26.7mm x 0.9mm) 1.38" Dia x 0.02" H (35.0mm x 0.6mm) 1.38" Dia x 0.05" H (35.0mm x 1.2mm) 1.38" Dia x 0.12" H (35.0mm x 3.0mm) 1.38" Dia x 0.13" H (35.0mm x 3.3mm) 1.42" L x 1.42" W x 0.03" H (36.0mm x 36.0mm x 0.8mm) 1.46" Dia x 0.07" H (37.0mm x 1.8mm) 1.46" L x 1.25" W x 0.03" H (38.0mm x 32.0mm x 1.0mm) 1.46" L x 1.46" W x 0.07" H (37.0mm x 37.0mm x 1.8mm) 1.50" L x 1.05" W x 0.04" H (38.1mm x 26.7mm x 1.0mm) 1.50" L x 1.05" W x 0.07" H (38.1mm x 26.7mm x 1.7mm) 1.50" L x 1.26" W x 0.04" H (38.1mm x 32.0mm x 1.0mm) 1.51" L x 1.27" W x 0.03" H (38.4mm x 32.3mm x 0.9mm) 1.52" L x 1.20" W x 0.03" H (38.5mm x 30.5mm x 0.83mm) 1.52" L x 1.20" W x 0.04" H (38.5mm x 30.5mm x 1.1mm) 1.54" L x 1.30" W x 0.05" H (39.0mm x 33.0mm x 1.3mm) 1.57" L x 1.06" W x 0.04" H (40.0mm x 27.0mm x 1.0mm) 1.57" L x 1.57" W x 0.05" H (40.0mm x 40.0mm x 1.2mm) 1.57" L x 1.57" W x 0.05" H (40mm x 40mm x 1.2mm) 1.57" L x 1.57" W x 0.13" H (40.0mm x 40.0mm x 3.3mm) 1.58" L x 1.85" W x 0.02" H (40.0mm x 47.0mm x 0.5mm) 1.62" L x 1.12" W x 0.03" H (41.1mm x 28.5mm x 0.8mm) 1.65" L x 1.50" W x 0.03" H (42.0mm x 38.0mm x 0.9mm) 1.65" L x 1.65" W x 0.03" H (42.0mm x 42.0mm x 0.7mm) 1.65" L x 1.65" W x 0.04" H (42.0mm x 42.0mm x 0.9mm) 1.69" L x 1.22" W x 0.02" H (43.0mm x 31.0mm x 0.5mm) 1.69" L x 1.97" W x 0.02" H (43.0mm x 50.0mm x 0.5mm) 1.71" L x 1.56" W x 0.02" H (43.5mm x 39.5mm x 0.5mm) 1.71" L x 1.56" W x 0.02" H (43.5mm x 39.5mm x 0.6mm) 1.73" L x 1.73" W x 0.03" H (44.0mm x 44.0mm x 0.75mm) 1.77" L x 1.26" W x 0.07" H (45.0mm x 32.0mm x 1.7mm) 1.77" L x 1.73" W x 0.03" H (45.0mm x 44.0mm x 0.75mm) 1.79" L x 2.09" W x 0.18" H (45.5mm x 53.0mm x 4.5mm) 1.81" L x 1.42" W x 0.03" H (46.0mm x 36.0mm x 0.7mm) 1.81" L x 1.81" W x 0.12" H (46.0mm x 46.0mm x 3.0mm) 1.81" L x 1.81" W x 0.21" H (46.0mm x 46.0mm x 5.3mm) 1.81" L x 1.81" W x 0.22" H (46.0mm x 46.0mm x 5.6mm) 1.85" Dia x 0.12" H (47.0mm x 3.0mm) 1.85" Dia x 0.17" H (47.0mm x 4.2mm) 1.85" Dia x 0.19" H (47.0mm x 4.9mm) 1.85" Dia x 0.21" H (47.0mm x 5.3mm) 1.85" L x 1.50" W x 0.03" H (47.0mm x 38.0mm x 0.9mm) 1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.0mm) 1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.1mm) 1.89" L x 1.26" W x 0.06" H (48.0mm x 32.0mm x 1.6mm) 1.89" L x 1.26" W x 0.07" H (48.0mm x 32.0mm x 1.7mm) 1.89" L x 1.26" W x 0.07" H (48.0mm x 32.0mm x 1.9mm) 1.89" L x 1.27" W x 0.03" H (48.2mm x 32.2mm x 1.0mm) 1.89" L x 1.27" W x 0.04" H (48.2mm x 32.2mm x 1.2mm) 1.90" L x 1.27" W x 0.04" H (48.2mm x 32.2mm x 1.1mm) 1.90" L x 1.27" W x 0.05" H (48.2mm x 32.2mm x 1.3mm) 1.90" L x 1.28" W x 0.04" H (48.5mm x 32.5mm x 1.2mm) 1.96" L x 1.96" W x 0.13 " H (50.0mm x 50.0mm x 3.5mm) 1.96" L x 1.96" W x 0.15" H (50.0mm x 50.0mm x 4.0mm) 1.96" L x 1.96" W x 0.19" H (50.0mm x 50.0mm x 5.0mm) 1.97" Dia x 0.09" H (50.0mm x 2.3mm) 1.97" Dia x 0.10" H (50.0mm x 2.5mm) 1.97" Dia x 0.11" H (50.0mm x 2.8mm) 1.97" Dia x 0.12" H (50.0mm x 3.0mm) 1.97" Dia x 0.12" H (50.0mm x 3.1mm) 1.97" Dia x 0.13" H (50.0mm x 3.4mm) 1.97" Dia x 0.14" H (50.0mm x 3.5mm) 1.97" Dia x 0.15" H (50.0mm x 3.8mm) 1.97" Dia x 0.16" H (50.0mm x 4.0mm) 1.97" Dia x 0.18" H (50.0mm x 4.5mm) 1.97" Dia x 0.19" H (50.0mm x 4.7mm) 1.97" Dia x 0.20" H (50.0mm x 5.0mm) 1.97" Dia x 0.24" H (50.0mm x 6.0mm) 1.97" Dia x 0.26" H (50.0mm x 6.5mm) 1.97" Dia x 0.26" H (50.0mm x 6.7mm) 1.97" L x 1.18" W x 0.14" H (50.0mm x 30.0mm x 3.5mm) 1.97" L x 1.57" W x 0.03" H (50.0mm x 40.0mm x 0.8mm) 1.97" L x 1.89" W x 0.24" H (50.0mm x 48.0mm x 6.0mm) 1.97" L x 1.97" W x 0.06" H (50.0mm x 50.0mm x 1.6mm) 1.97" L x 1.97" W x 0.12" H (50.0mm x 50.0mm x 3.0mm) 1.97" L x 1.97" W x 0.16" H (50.0mm x 50.0mm x 4.0mm) 2.01" L x 1.57" W x 0.05" H (51.0mm x 40.0mm x 1.2mm) 2.01" L x 1.57" W x 0.09" H (51.0mm x 40.0mm x 2.2mm) 2.01" L x 1.85" W x 0.18" H (51.0mm x 47.0mm x 4.5mm) 2.02" Dia x 0.13" H (51.4mm x 3.4mm) 2.05" L x 1.38" W x 0.07" H (52.0mm x 35.0mm x 1.8mm) 2.05" L x 1.89" W x 0.02" H (52.0mm x 48.0mm x 0.5mm) 2.05" L x 1.89" W x 0.02" H (52.0mm x 48.0mm x 0.6mm) 2.05" L x 2.05" W x 0.15" H (52.0mm x 52.0mm x 3.7mm) 2.05" L x 2.05" W x 0.22" H (52.0mm x 52.0mm x 5.6mm) 2.08" L x 2.08" W x 0.19" H (53.0mm x 53.0mm x 5.0mm) 2.09" L x 2.09" W x 0.18" H (53.0mm x 53.0mm x 4.5mm) 2.09" L x 2.09" W x 0.21" H (53.0mm x 53.0mm x 5.3mm) 2.09" L x 2.09" W x 0.26" H (53.0mm x 53.0mm x 6.7mm) 2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm) 2.10" L x 2.10" W x 0.26" H (53.3mm x 53.3mm x 6.5mm) 2.10" L x 2.10" W x 0.28" H (53.30mm x 53.30mm x 7.00mm) 2.11" L x 2.11" W x 0.13" H (53.5mm x 53.5mm x 3.3mm) 2.13" Dia x 0.16" H (54.0mm x 4.0mm) 2.13" L x 2.13" W x 0.09" H (54.0mm x 54.0mm x 2.4mm) 2.13" L x 2.13" W x 0.13" H (54.0mm x 54.0mm x 3.3mm) 2.17" Dia x 0.16" H (55.0mm x 4.0mm) 2.17" L x 1.85" W x 0.22" H (55.0mm x 47.0mm x 5.5mm) 2.17" L x 2.17" W x 0.12" H (55.0mm x 55.0mm x 3.0mm) 2.173" L x 1.858" W x 0.118" H (55.20mm x 47.20mm x 3.00mm) 2.24" L x 2.86" W x 0.04" H (56.8mm x 72.8mm x 1.0mm) 2.244" L x 2.008" W x 0.165" H (57.00mm x 51.00mm x 4.20mm) 2.34" L x 2.05" W x 0.15" H (59.5mm x 52.0mm x 4.0mm) 2.55" L x 2.11" W x 0.06" H (64.7mm x 53.6mm x 1.4mm) 2.58" L x 1.91" W x 0.02" H (65.5mm x 48.4mm x 0.5mm) 2.76" Dia x 0.33" H (70.0mm x 8.5mm) 2.80" L x 2.40" W x 0.16" H (71.0mm x 61.0mm x 4.0mm) 2.83" L x 1.97" W x 0.04" H (72.0mm x 50.0mm x 1.0mm) 2.99" L x 1.26" W x 0.04" H (76.0mm x 32.0mm x 1.0mm) 3.02" L x 1.29" W x 0.07" H (76.7mm x 32.7mm x 1.8mm) 3.35" L x 2.64" W x 0.03" H (85.1mm x 67.0mm x 0.8mm) 3.43" L x 2.05" W x 0.197" H (87.0mm x 52.0mm x 5.0mm) 3.48" L x 2.07" W x 0.14" H (88.50mm x 52.50mm x 3.50mm) 3.70" L x 2.05" W x 0.16" H (94.0mm x 52.0mm x 4.0mm) 3.70" L x 2.13" W x 0.16" H (94.0mm x 54.0mm x 4.0mm) 3.74" L x 2.09" W x 0.15" H (95.0mm x 53.0mm x 3.9mm) 3.86" L x 2.20" W x 0.15" H (98.0mm x 56.0mm x 3.8mm) 3.90" L x 2.19" W x 0.16" H (99.0mm x 55.6mm x 4.0mm) 3.94" L x 1.50" W x 0.059" H (100.0mm x 38.0mm x 1.5mm) 3.94" L x 2.01" W x 0.20" H (100.0mm x 51.0mm x 5.2mm) 3.94" L x 2.17" W x 0.16" H (100.0mm x 55.0mm x 4.0mm) 3.94" L x 2.17" W x 0.18" H (100.0mm x 55.0mm x 4.5mm) 3.94" L x 2.20" W x 0.11" H (100.0mm x 56.0mm x 2.8mm) 3.94" L x 2.20" W x 0.18" H (100.0mm x 56mm x 4.5mm) 3.94" L x 2.20" W x 0.19" H (100.0mm x 56mm x 4.8mm) 3.98" L x 2.24" W x 0.16" H (101.0mm x 57.0mm x 4.0mm) 4.01" L x 2.26" W x 0.18" H (101.8mm x 57.3mm x 4.7mm) 4.01" L x 2.26" W x 0.19" H (101.8mm x 57.3mm x 4.7mm) 4.17" L x 2.09" W x 0.24" H (106.0mm x 53.0mm x 6.0mm) 4.17" L x 2.24" W x 0.17" H (106.0mm x 57.0mm x 4.2mm) 4.25" L x 2.06" W x 0.15" H (108.0mm x 52.5mm x 4.0mm) 4.29" L x 2.20" W x 0.20" H (109.0mm x 56.0mm x 5.2mm) 4.80" L x 2.13" W x 0.18" H (122.0mm x 54.0mm x 4.5mm) 5.12" L x 0.28" W x 2.15" H (130.0mm x 7.0mm x 54.7mm)

全部重置

应用所有

结果:

N.º de Parte del Fabricante	Disponibilidad	Precio	Cantidad	Hoja de Datos	Serie	Embalaje	Estado del producto	Función	Tipo	Inductancia	Tolerancia	Resistencia de CC (DCR)	Q a frecuencia	Clasificación de corriente (amperios)	Corriente - Saturación (Isat)	Frecuencia: autorresonante	Temperatura de funcionamiento	Tamaño/Dimensión
IWAS4532AGEB140KF1 WIRELESS CHARGING RECEIVE COIL Vishay Dale	990	-	RFQ	Tabla de datos	-	Tray	Active	Receiver	1 Coil, 1 Layer	14µH	±10%	355mOhm Max	24 @ 100kHz	1.2A	-	-	-40°C ~ 85°C	1.77" L x 1.26" W x 0.07" H (45.0mm x 32.0mm x 1.7mm)
WRSR-12R0K-13 WIRELESE CHARGE COIL 12.0UH 6.0A Signal Transformer	452	-	RFQ	Tabla de datos	WRSR	Bulk	Active	Receiver	1 Coil, 1 Layer	12µH	±10%	200mOhm Max	33 @ 125kHz	3A	6A	-	-25°C ~ 105°C	1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.1mm)
WR444030-16F3-G RX 1 COIL 1 LYR 19UH TDK Corporation	518	-	RFQ	Tabla de datos	WR	Tray	Active	Receiver	1 Coil, 1 Layer	19µH	-	700mOhm	-	-	-	-	-	1.71" L x 1.56" W x 0.02" H (43.5mm x 39.5mm x 0.6mm)
WRSR-16R7K-11 WIRELESE CHARGE COIL 16.7UH 4.0A Signal Transformer	405	-	RFQ	Tabla de datos	WRSR	Bulk	Active	Receiver	1 Coil, 1 Layer	16.7µH	±10%	430mOhm Max	32 @ 125kHz	2.5A	4A	-	-25°C ~ 105°C	1.52" L x 1.20" W x 0.04" H (38.5mm x 30.5mm x 1.1mm)

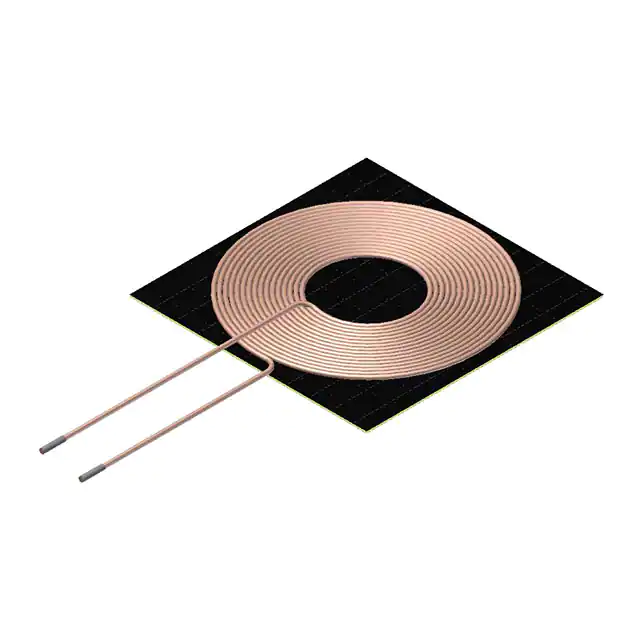

WR555540-16K2-FS2 RX 1 COIL 2 LYR 15.8UH TDK Corporation	544	-	RFQ	Tabla de datos	WR	Tray	Active	Receiver	1 Coil, 2 Layer	15.8µH	-	100mOhm	98 @ 100kHz	-	-	-	-	2.13" L x 2.13" W x 0.09" H (54.0mm x 54.0mm x 2.4mm)

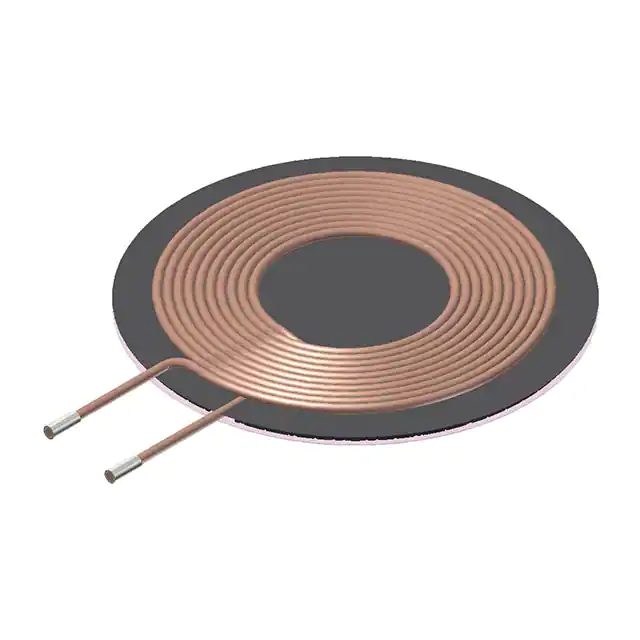

WT505090-10F2-LP-G1 TX 1 COIL, 1 LYR 6.3UH TDK Corporation	115	-	RFQ	Tabla de datos	WT	Tray	Active	Transmitter	1 Coil, 1 Layer	6.3µH	-	60mOhm	-	-	-	-	-	2.02" Dia x 0.13" H (51.4mm x 3.4mm)
WR383245-17F5-G RX 1 COIL, 1 LYR 13.9UH TDK Corporation	286	-	RFQ	Tabla de datos	WR	Tray	Active	Receiver	1 Coil, 1 Layer	13.9µH	-	310mOhm	28 @ 100kHz	-	-	-	-	1.51" L x 1.27" W x 0.03" H (38.4mm x 32.3mm x 0.9mm)
WT545490-11K2-FS TX 1 COIL 2 LYR 8.9UH TDK Corporation	136	-	RFQ	Tabla de datos	WT	Tray	Not For New Designs	Transmitter	1 Coil, 2 Layer	8.9µH	-	60mOhm	104 @ 100kHz	-	-	-	-	2.13" L x 2.13" W x 0.13" H (54.0mm x 54.0mm x 3.3mm)

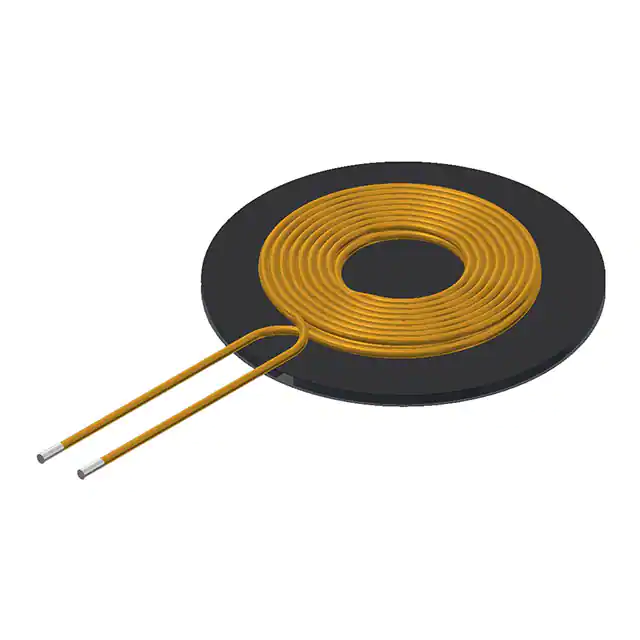

WT282890-16F2-G TX 1 COIL 2 LYR 7.4UH TDK Corporation	139	-	RFQ	Tabla de datos	WT	Tray	Active	Transmitter	1 Coil, 2 Layer	7.4µH	-	110mOhm	-	-	-	-	-	1.12" Dia x 0.10" H (28.4mm x 2.4mm)
WT1005690-12F2-A6-G1 TX COIL UNIT TDK Corporation	148	-	RFQ	Tabla de datos	WT	Box	Active	-	-	-	-	-	-	-	-	-	-	-

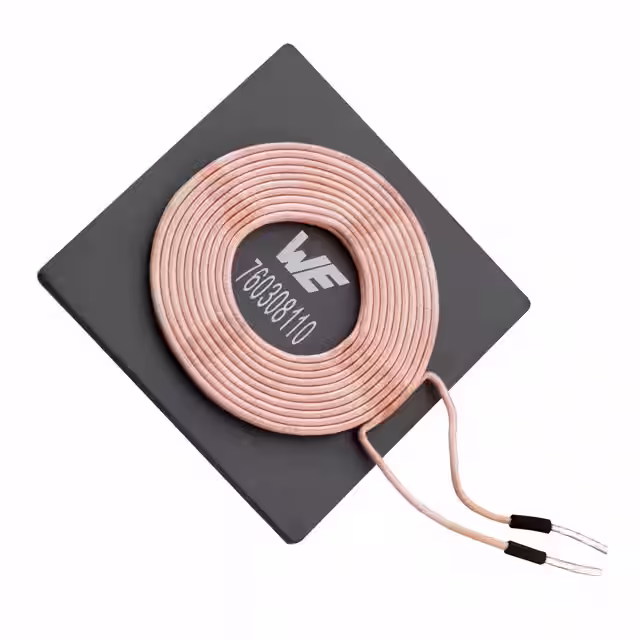

760308110 TX 1 COIL 2 LAYER 24UH 6A Würth Elektronik	103	-	RFQ	Tabla de datos	WE-WPCC	Bulk	Active	Transmitter	1 Coil, 2 Layer	24µH	±10%	100mOhm Max	180 @ 125kHz	6A	10A	5MHz	-20°C ~ 105°C	2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm)

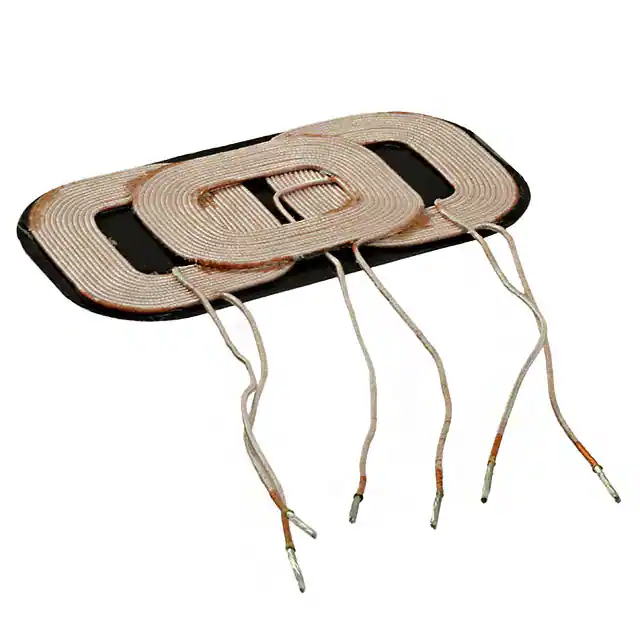

WT1005690-12K2-A6-G TX 3 COIL 1 LAYER 11.5 - 12.5UH TDK Corporation	103	-	RFQ	-	WT	Tray	Not For New Designs	Transmitter	3 Coil, 1 Layer	11.5 ~ 12.5µH	-	80mOhm	-	-	-	-	-	3.94" L x 2.20" W x 0.19" H (100.0mm x 56mm x 4.8mm)
IWTX5050DZEB6R3KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	232	-	RFQ	Tabla de datos	-	Tray	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	25mOhm Max	90 @ 100kHz	10A	-	-	-40°C ~ 85°C	1.97" Dia x 0.16" H (50.0mm x 4.0mm)
WR464650-10K2-FS3 RX 1 COIL, 1 LYR 7.3UH TDK Corporation	133	-	RFQ	Tabla de datos	WR	Tray	Active	Receiver	1 Coil, 1 Layer	7.3µH	-	70mOhm	-	-	-	-	-	1.81" L x 1.81" W x 0.12" H (46.0mm x 46.0mm x 3.0mm)
WR444025-17M6-G RX 1 COIL, 1 LYR 16.7UH TDK Corporation	237	-	RFQ	Tabla de datos	WR	Tray	Active	Receiver	1 Coil, 1 Layer	16.7µH	-	650mOhm	-	-	-	-	-	1.71" L x 1.56" W x 0.02" H (43.5mm x 39.5mm x 0.5mm)
IWTX5050FEEB100KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	1,300	-	RFQ	Tabla de datos	-	Tray	Active	Transmitter	1 Coil, 1 Layer	10µH	±10%	29.7mOhm Max	200 @ 100kHz	9A	-	-	-40°C ~ 85°C	1.97" Dia x 0.26" H (50.0mm x 6.5mm)
IWAS3222CZEB190JR1 WIRELESS CHARGE RX RECT 19.6UH 1 Vishay Dale	425	-	RFQ	Tabla de datos	-	Tray	Active	Receiver	1 Coil, 1 Layer	19.6µH	±5%	357mOhm	28.5 @ 200kHz	1.2A	2.4A	-	-40°C ~ 105°C	1.26" L x 0.87" W x 0.12" H (32.0mm x 22.0mm x 3.0mm)
IWTX47R0DAEB6R3JR1 WIRELESS CHARGE TX ROUND 6.3UH 7 Vishay Dale	231	-	RFQ	Tabla de datos	-	Tray	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±5%	40mOhm	190 @ 200kHz	7A	22A	-	-40°C ~ 105°C	1.85" Dia x 0.17" H (47.0mm x 4.2mm)
IWTX47R0EBEB240JR1 WIRELESS CHARGE TX ROUND 24UH 6A Vishay Dale	229	-	RFQ	Tabla de datos	-	Tray	Active	Transmitter	1 Coil, 2 Layer	24µH	±5%	75mOhm	200 @ 200kHz	6A	20A	-	-40°C ~ 105°C	1.85" Dia x 0.21" H (47.0mm x 5.3mm)
IWTX4646DCEB240JR1 WIRELESS CHARGE TX SQUARE 24UH 6 Vishay Dale	219	-	RFQ	Tabla de datos	-	Tray	Active	Transmitter	1 Coil, 2 Layer	24µH	±5%	75mOhm	185 @ 200kHz	6A	20A	-	-40°C ~ 105°C	1.81" L x 1.81" W x 0.21" H (46.0mm x 46.0mm x 5.3mm)

Total 267 Record«Prev 1 234 5 6...14 Next»
