Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Voltaje - Estado apagado | Voltaje - Disparador de compuerta (Vgt) (máx.) | Corriente - Disparador de compuerta (Igt) (máx.) | Voltaje - Estado encendido (Vtm) (máx.) | Corriente - Estado encendido (It (AV)) (máx.) | Corriente - Estado encendido (It (RMS)) (máx.) | Corriente: retención (Ih) (Máx.) | Corriente - Estado apagado (máx.) | Corriente - Sobretensión no repetitiva de 50, 60 Hz (Itsm) | Tipo de SCR | Temperatura de funcionamiento | Grado | Calificación | Tipo de montaje | Proveedor Dispositivo Paquete |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
2N6394TGSCR 50V 12A TO220AB |
0 |
|
![]() Tabla de datos |
- | TO-220-3 | Box | Active | 50 V | 1.5 V | 30 mA | 2.2 V | - | 12 A | 50 mA | 10 µA | 100A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
![]() |
S4016NTPSCR 400V 16A TO263 |
0 |
|
![]() Tabla de datos |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 400 V | 1.5 V | 30 mA | 1.6 V | 10 A | 16 A | 40 mA | 10 µA | 188A, 225A | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (D2PAK) |
|
CLA15E1200NPZ-TUBSCR 1.2KV 33A TO263 |
0 |
|
![]() Tabla de datos |
CLA15E1200NPZ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 1.2 kV | 1.3 V | 20 mA | 1.35 V | 15 A | 33 A | 70 mA | - | 170A, 185A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263HV |
![]() |
SK010NRPSCR 1KV 10A TO263 |
0 |
|
![]() Tabla de datos |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 kV | 1.5 V | 15 mA | 1.6 V | 6.4 A | 10 A | 30 mA | 20 µA | 83A, 100A | Standard Recovery | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
![]() |
SK012NRPSCR 1KV 12A TO263 |
0 |
|
![]() Tabla de datos |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 kV | 1.5 V | 20 mA | 1.6 V | 7.6 A | 12 A | 40 mA | 20 µA | 120A, 130A | Standard Recovery | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
![]() |
SJ4012N2TPHIGH TJ 400V 12A SCR TO263 |
0 |
|
![]() Tabla de datos |
SJ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 600 V | 1.5 V | 10 mA | 1.6 V | 7.6 A | 12 A | 35 mA | 10 µA | 100A, 120A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
![]() |
SJ4012NTPHIGH TJ 400V 12A SCR TO263 |
0 |
|
![]() Tabla de datos |
SJ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 600 V | 1.5 V | 20 mA | 1.6 V | 7.6 A | 12 A | 60 mA | 10 µA | 100A, 120A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
![]() |
SJ4012N1TPHIGH TJ 400V 12A SCR TO263 |
0 |
|
![]() Tabla de datos |
SJ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 600 V | 1.5 V | 6 mA | 1.6 V | 7.6 A | 12 A | 15 mA | 10 µA | 100A, 120A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
![]() |
TN2540-12GSCR 1.2KV 25A D2PAK |
0 |
|
![]() Tabla de datos |
ECOPACK®2 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 1.2 kV | 1.3 V | 40 mA | 1.6 V | 16 A | 25 A | 80 mA | 10 µA | 300A, 314A | Standard Recovery | -40°C ~ 125°C (TJ) | - | - | Surface Mount | D2PAK |
![]() |
S6008LS2TPSCR 600V 8A TO220 |
0 |
|
![]() Tabla de datos |
- | TO-220-3 Isolated Tab | Tube | Active | 600 V | 800 mV | 200 µA | 1.6 V | 5.1 A | 8 A | 6 mA | 5 µA | 83A, 100A | Sensitive Gate | -40°C ~ 110°C | - | - | Through Hole | TO-220 Isolated Tab |
![]() |
S8010NTPSCR 800V 10A TO263 |
0 |
|
![]() Tabla de datos |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 800 V | 1.5 V | 15 mA | 1.6 V | 6.4 A | 10 A | 30 mA | 10 µA | 83A, 100A | Standard Recovery | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
![]() |
S8012NTPSCR 800V 12A TO263 |
0 |
|
![]() Tabla de datos |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 800 V | 1.5 V | 20 mA | 1.6 V | 7.6 A | 12 A | 40 mA | 20 µA | 120A, 130A | Standard Recovery | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
![]() |
CMPS5062 TRSCR 200V 250MA SOT23 |
0 |
|
![]() Tabla de datos |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | 200 V | 800 mV | 200 µA | 1.7 V | 160 mA | 250 mA | 5 mA | 1 µA | - | Sensitive Gate | -65°C ~ 125°C | - | - | Surface Mount | SOT-23 |
![]() |
SK006NTPSCR 1KV 6A TO263 |
0 |
|
![]() Tabla de datos |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 1 kV | 1.5 V | 15 mA | 1.6 V | 3.8 A | 6 A | 30 mA | 20 µA | 83A, 100A | Standard Recovery | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
![]() |
SK008NTPSCR 1KV 8A TO263 |
0 |
|
![]() Tabla de datos |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 1 kV | 1.5 V | 15 mA | 1.6 V | 5.1 A | 8 A | 30 mA | 20 µA | 83A, 100A | Standard Recovery | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
![]() |
SV6012L1QTPSCR 12A 600V HI TEMP TO220L |
0 |
|
![]() Tabla de datos |
SV | TO-220-3 Full Pack, Isolated Tab | Tube | Active | 600 V | 1.5 V | 6 mA | 1.6 V | 7.6 A | 12 A | 22 mA | 10 µA | 100A, 120A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220AB |
![]() |

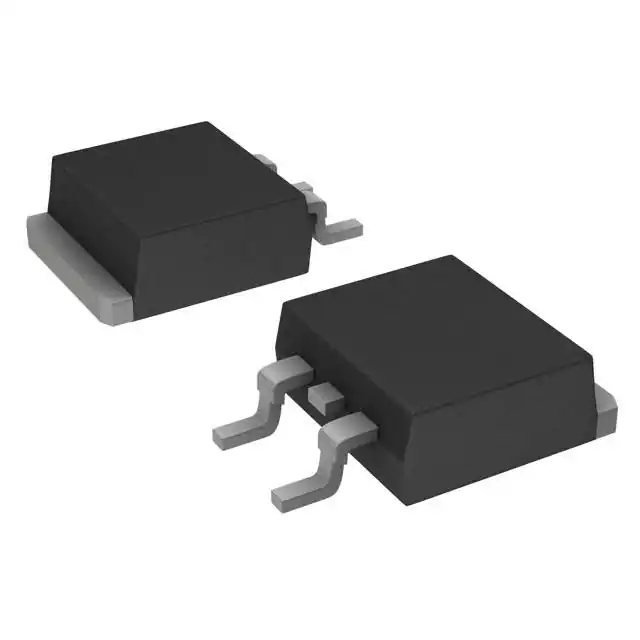

SV6012N2TPSCR 12A 600V HI TEMP TO263 |
0 |
|
![]() Tabla de datos |
SV | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 600 V | 1.5 V | 10 mA | 1.6 V | 7.6 A | 12 A | 35 mA | 10 µA | 100A, 120A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
![]() |
SV6012L2QTPSCR 12A 600V HI TEMP TO220L |
0 |
|
![]() Tabla de datos |
SV | TO-220-3 Full Pack, Isolated Tab | Tube | Active | 600 V | 1.5 V | 10 mA | 1.6 V | 7.6 A | 12 A | 35 mA | 10 µA | 100A, 120A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220AB |
![]() |
SV6012N1TPSCR 12A 600V HI TEMP TO263 |
0 |
|
![]() Tabla de datos |
SV | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 600 V | 1.5 V | 6 mA | 1.6 V | 7.6 A | 12 A | 22 mA | 10 µA | 100A, 120A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
![]() |
16TTS08SSCR 800V 16A D2PAK |
0 |
|
![]() Tabla de datos |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 800 V | 2 V | 60 mA | 1.4 V | 10 A | 16 A | 100 mA | 500 µA | 200A @ 50Hz | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-263AB (D2PAK) |
