Antenas de RF
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Embalaje | Estado del producto | Familia/estándar RF | Grupo de frecuencia | Frecuencia (Centro/Banda) | Rango de frecuencia | Tipo de antena | Número de bandas | VSWR | Pérdida de retorno | Ganancia | Potencia: máx. | Características | Terminación | Protección de ingreso | Grado | Calificación | Tipo de montaje | Altura (máx.) | Aplicaciones |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

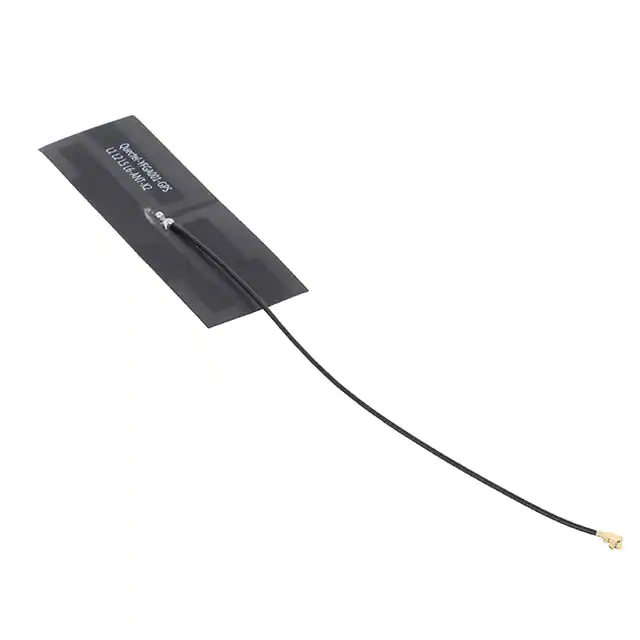

YFGA001AAGNSS RF ANTENNA Quectel |
1,316 |
|
Tabla de datos |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.215GHz, 1.5825GHz | 1.16GHz ~ 1.27GHz, 1.56GHz ~ 1.605GHz | Flat Patch | 2 | 2 | - | 3.6dBi | - | Cable - 100mm | I-PEX MHF1 | - | - | - | Surface Mount | - | GPS |
|

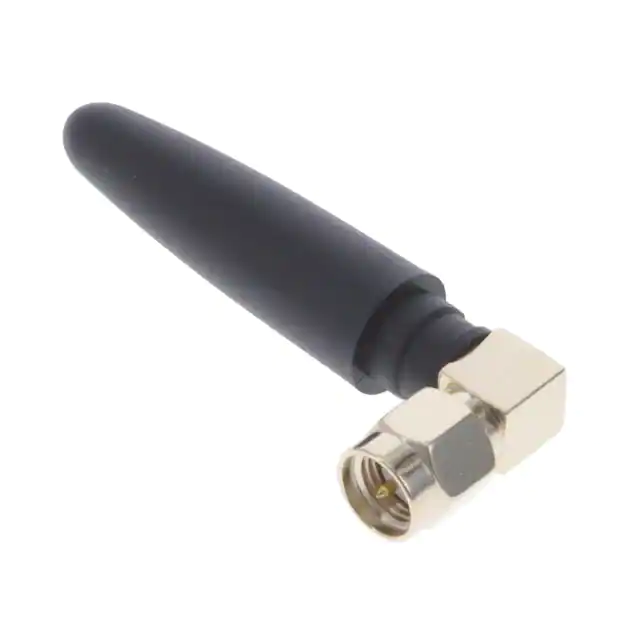

YE0011AAEXTERNAL CELLULAR ANTENNA Quectel |
1,765 |
|
Tabla de datos |
- | Bag | Not For New Designs | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 2 | 3.5 | - | 3dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | 3G |
|
YP0009AAPCB ANT, 15006000, 5G, 190MM Quectel |
1,596 |
|
Tabla de datos |
- | Bag | Not For New Designs | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.43GHz, 3.65GHz, 3.75GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.5GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 4GHz, 3.3GHz ~ 5GHZ, 4GHz ~ 6GHz, 5GHz ~ 6GHz | PCB Trace | 9 | 3 | - | 2.3dBi, 1.8dBi, 3.2dBi, 4.42dBi, 2.8dBi, 4.2dBi, 3.6dBi | - | - | I-PEX MHF4 | - | - | - | Adhesive | 0.037" (0.95mm) | 2G, 3G, 4G, 5G |
|
YE0032AAWIFI/BT ANTENNA Quectel |
1,496 |
|
Tabla de datos |
- | Bag | Not For New Designs | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Right Angle | 2 | 2, 3 | - | 1.8dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | Wi-Fi |
|
|
YF0017AAFLEX ANTENNA 1.5-6GHZ 193MM MHF4 Quectel |
689 |
|
Tabla de datos |
- | Bag | Not For New Designs | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.43GHz, 3.65GHz, 3.75GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.5GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 4GHz, 3.3GHz ~ 5GHZ, 4GHz ~ 6GHz, 5GHz ~ 6GHz | Flat Patch | 9 | 3 | - | 2.3dBi, 3.4dBi, 3.4dBi, 4.5dBi, 4.5dBi, 4.5dBi, 3.5dBi | - | - | I-PEX MHF4 | - | - | - | Adhesive | 0.005" (0.13mm) | 2G, 3G, 4G, 5G, LPWA |
|
|
YCGS005AACERAMIC ANTENNA,GNSS,SMD,18*18*4 Quectel |
1,717 |
|
Tabla de datos |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.588GHz | 1.575GHz ~ 1.602GHz | Ceramic Patch | 1 | 2 | - | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|

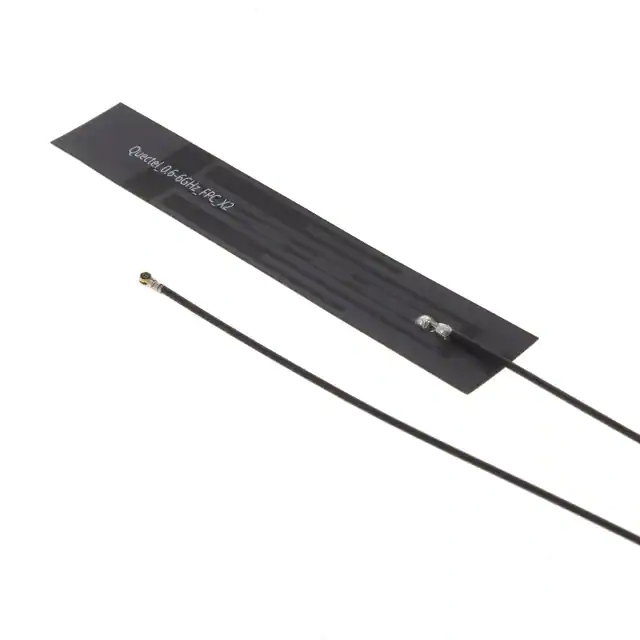

YF0020AAEMBEDDED CELLULAR ANTENNA Quectel |
1,282 |
|
Tabla de datos |
- | Bag | Not For New Designs | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Flat Patch | 8 | 1.6, 1.7, 1.8, 2.01, 2.4, 3.3 | - | 1.2dBi, 4.36dBi, 4.2dBi, 3.8dBi, 2.7dBi, 2.9dBi | - | Cable - 184mm | I-PEX MHF4 | - | - | - | Surface Mount | 0.005" (0.13mm) | 6G |
|
|
YEWN001AATERMINAL WIFI 6 ANTENNA HINGE Quectel |
425 |
|
Tabla de datos |
- | Bag | Active | Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Right Angle | 2 | - | - | - | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.874" (200.00mm) | Bluetooth, Wi-Fi, WLAN |
|
|
YE0019AAISM 450-470 ANTENNA TERMINAL Quectel |
197 |
|
Tabla de datos |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Right Angle | 1 | 2 | - | 4.5dBi | - | - | SMA Male | IP55 | - | - | Connector Mount | 4.291" (109.00mm) | ISM |
|
|
YF0011AAFLEX ANTENNA WIFI DUALB 44MM UFL Quectel |
2,673 |
|
Tabla de datos |
- | Bag | Not For New Designs | WiFi | Wide Band | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | 2 | - | 7dBi, 7dBi | - | - | U.FL | - | - | - | Adhesive | 0.005" (0.12mm) | Wi-Fi |
