Optoaisladores de salida Triac y SCR
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo de salida | Circuito de cruce por cero | Número de canales | Voltaje - Aislamiento | Voltaje - Estado apagado | dV/dt estático (mín.) | Corriente: disparador LED (Ift) (máx.) | Corriente - Estado encendido (It (RMS)) (máx.) | Corriente - Retención (Ih) | Tiempo de encendido | Voltaje: directo (Vf) (típico) | Corriente: CC directa (si) (máx.) | Temperatura de funcionamiento | Tipo de montaje | Proveedor Dispositivo Paquete | Organismo de aprobación |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOC3082FVMOPTOISOLATOR 7.5KV TRIAC 6SMD |
0 |
|
- |
- | 6-SMD, Gull Wing | Tube | Obsolete | Triac | Yes | 1 | 7500Vpk | 800 V | - | 10mA | - | 500µA (Typ) | - | - | 60 mA | - | Surface Mount | 6-SMD | - |
|
|
MOC3083FMOPTOISOLATOR 7.5KV TRIAC 6SMD |
0 |
|
- |
- | 6-SMD, Gull Wing | Tube | Obsolete | Triac | Yes | 1 | 7500Vpk | 800 V | - | 5mA | - | 500µA (Typ) | - | - | 60 mA | - | Surface Mount | 6-SMD | - |
|
|
MOC3083FR2MOPTOISOLATOR 7.5KV TRIAC 6SMD |
0 |
|
- |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 7500Vpk | 800 V | - | 5mA | - | 500µA (Typ) | - | - | 60 mA | - | Surface Mount | 6-SMD | - |
|
|
MOC3083FR2VMOPTOISOLATOR 7.5KV TRIAC 6SMD |
0 |
|
- |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 7500Vpk | 800 V | - | 5mA | - | 500µA (Typ) | - | - | 60 mA | - | Surface Mount | 6-SMD | - |
|
|
MOC3083FVMOPTOISOLATOR 7.5KV TRIAC 6SMD |
0 |
|
- |
- | 6-SMD, Gull Wing | Tube | Obsolete | Triac | Yes | 1 | 7500Vpk | 800 V | - | 5mA | - | 500µA (Typ) | - | - | 60 mA | - | Surface Mount | 6-SMD | - |
|
MOC3083TMOPTOISOLATOR 4.17KV TRIAC 6DIP |
0 |
|
Tabla de datos |
- | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
|
MOC3162FMOPTOISOLATOR 7.5KV TRIAC 6SMD |
0 |
|
- |
- | 6-SMD, Gull Wing | Tube | Obsolete | Triac | Yes | 1 | 7500Vpk | 600 V | - | 10mA | - | 500µA (Typ) | - | - | 60 mA | - | Surface Mount | 6-SMD | - |
|
MOC3162TMOPTOISOLATOR 4.17KV TRIAC 6DIP |
0 |
|
Tabla de datos |
- | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | Triac | Yes | 1 | 4170Vrms | 600 V | 1kV/µs | 10mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
|
MOC3163FMOPTOISOLATOR 7.5KV TRIAC 6SMD |
0 |
|
- |
- | 6-SMD, Gull Wing | Tube | Obsolete | Triac | Yes | 1 | 7500Vpk | 600 V | - | 5mA | - | 500µA (Typ) | - | - | 60 mA | - | Surface Mount | 6-SMD | - |
|
|
MOC3163FR2MOPTOISOLATOR 7.5KV TRIAC 6SMD |
0 |
|
- |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 7500Vpk | 600 V | - | 5mA | - | 500µA (Typ) | - | - | 60 mA | - | Surface Mount | 6-SMD | - |
|
|
MOC3163FR2VMOPTOISOLATOR 7.5KV TRIAC 6SMD |
0 |
|
- |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 7500Vpk | 600 V | - | 5mA | - | 500µA (Typ) | - | - | 60 mA | - | Surface Mount | 6-SMD | - |
|
PC3SD11NTZBOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Tabla de datos |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC3SD21NTZDOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
- |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|

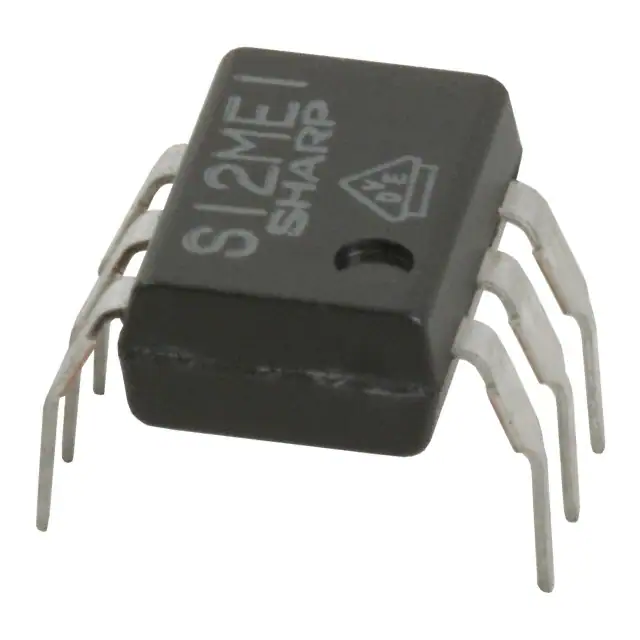

S12ME1FYOPTOISOLATOR 4KV SCR 6DIP |
0 |
|
Tabla de datos |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | SCR | No | 1 | 4000Vrms | 400 V | 3V/µs | 10mA | 200 mA | 1mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, UR, VDE |
|
S22MD3OPTOISOLATOR 2.5KV SCR 8DIP |
0 |
|
Tabla de datos |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | SCR | No | 2 | 2500Vrms | 600 V | 3V/µs | 10mA | 200 mA | 1mA | 20µs | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 8-DIP | UR |
|
8259950000OPTOISOLATOR TRIAC MODULE |
0 |
|
Tabla de datos |
WAVESERIES | Din Rail Module | Bulk | Obsolete | Triac | Yes | 1 | - | 300 V | - | - | - | - | - | - | - | -25°C ~ 50°C | DIN Rail | Module | CSA, DIN, UR |
|
|
8275440000OPTOISOLATOR TRIAC MODULE |
0 |
|
Tabla de datos |
WAVESERIES | Din Rail Module | Bulk | Obsolete | Triac | Yes | 1 | - | 300 V | - | - | - | - | - | - | - | -25°C ~ 50°C | DIN Rail | Module | CSA, DIN, UR |
.JPG)
|
TLP3052(S,C,F)OPTOISOLATOR 5KV TRIAC 6DIP 5L |
0 |
|
Tabla de datos |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 600 V | 500V/µs (Typ) | 10mA | 100 mA | 1mA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP (Cut), 5 Lead | BSI, SEMKO, UR |
|
PC3SD21NTZDFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
- |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
S2S3000FOPTOISOLATOR 3.75KV TRIAC 4MFP |
0 |
|
Tabla de datos |
- | 4-SMD, Gull Wing | Tube | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 100V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat | CSA, UR |
