Fuentes de alimentación industriales para riel DIN
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Embalaje | Estado del producto | Tipo de entrada | Número de salidas | Voltaje de CA - Entrada | Voltaje de CC - Entrada (mín.) | Voltaje de CC - Entrada (máx.) | Voltaje - Salida 1 | Voltaje - Salida 2 | Voltaje - Salida 3 | Voltaje - Salida 4 | Voltaje - Salida 5 | Voltaje - Salida 6 | Corriente - Salida (máx.) | Potencia (vatios) | Voltaje - Aislamiento | Aplicaciones | Eficiencia | Temperatura de funcionamiento | Características | Organismo de aprobación | Número estándar |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S8VK-WB96048POWER SUPPLY 3 PHASE 480VAC PWR |
0 |
|
Tabla de datos |
S8VK-W (960W) | Box | Active | AC or DC | 1 | 320 ~ 576 VAC (3 Phase) | 450V | 810V | 48V | - | - | - | - | - | 20A | 960W | 3 kV | Industrial, ITE (Commercial) | 95% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC | CE, UL | 62368-1; UL 508 |
|

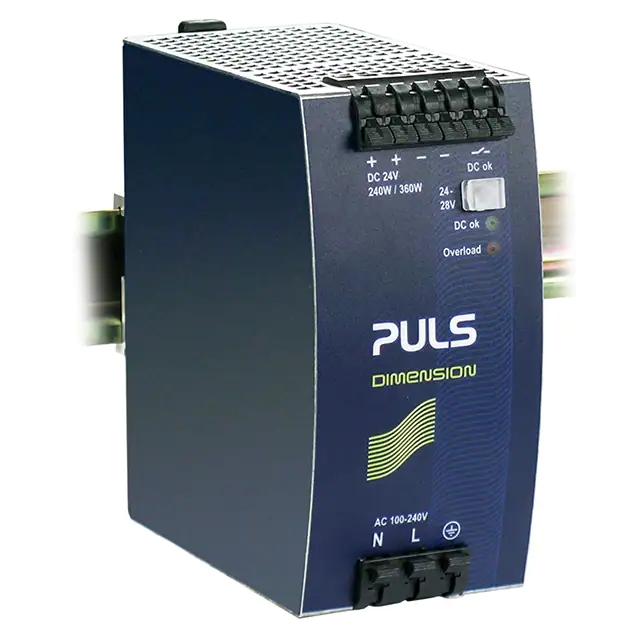

QS10.241-C1AC/DC DIN RAIL SUPPLY 24V 240W |
1 |
|
Tabla de datos |
DIMENSION Q (240W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 500 V | ITE (Commercial) | 93.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, Conformal Coating, Load Sharing, PFC | ABS, CSA, DNV GL, EAC, EN, IEC, SEMI, UL | Class I Div 2; F47; 508; 50155; 60950-1; 61010-2-201 |
|
787-6716AC/DC DIN RAIL SUPPLY 24V 96W |
1 |
|
Tabla de datos |
- | Box | Active | AC or DC | 1 | 90 ~ 265 VAC | 90V | 265V | 24V | - | - | - | - | - | 4A | 96W | - | Industrial, ITE (Commercial), Laboratory | 92.3% | -40°C ~ 85°C | Adjustable Output, IP20, PFC, Universal Input | CE, EAC, UL | 61010-1; UL 508 |
|
|
2467110000PRO TOP3 480W 24V 20A CO |
1 |
|
Tabla de datos |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 22.5 ~ 28.8V | - | - | - | - | - | 20A | 576W | 3.5 kV | ITE (Commercial) | 94% | -40°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|
787-852AC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Tabla de datos |
- | Box | Active | AC or DC | 1 | 340 ~ 550 VAC | 480V | 780V | 24V | - | - | - | - | - | 20A | 480W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 92.9% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
|

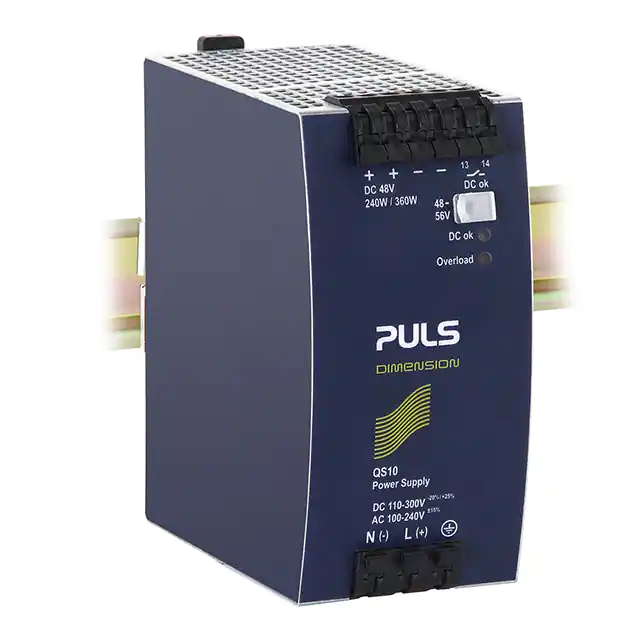

QS10.481-D1AC/DC DIN RAIL SUPPLY 48V 240W |
1 |
|
Tabla de datos |
DIMENSION Q (240W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 500 V | ITE (Commercial) | 92% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|
|
S8VK-WB96024POWER SUPPLY 3 PHASE 480VAC PWR |
1 |
|
Tabla de datos |
S8VK-W (960W) | Box | Active | AC or DC | 1 | 320 ~ 576 VAC (3 Phase) | 450V | 810V | 24V | - | - | - | - | - | 40A | 960W | 3 kV | Industrial, ITE (Commercial) | 95% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC | CE, UL | 62368-1; UL 508 |
|
|
LXN1604-6GAC/DC DIN RAIL SUPPLY 500W |
1 |
|
Tabla de datos |
Melcher X (500W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | - | - | - | - | - | - | - | 500W | 2.8 kV | ITE (Commercial) | - | -40°C ~ 60°C | Adjustable Output, Load Sharing, PFC, Universal Input | cCSAus, CE | - |
|
|
2467130000PRO TOP3 960W 24V 40A CO |
0 |
|
Tabla de datos |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 22.5 ~ 28.8V | - | - | - | - | - | 40A | 1152W | 3.5 kV | ITE (Commercial) | 95.3% | -40°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|
|
2467170000PRO TOP3 960W 48V 20A |
1 |
|
Tabla de datos |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 45 ~ 56V | - | - | - | - | - | 20A | 1120W | 3.5 kV | ITE (Commercial) | 95.3% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|
787-835AC/DC DIN RAIL SUPPLY 48V 480W |
1 |
|
Tabla de datos |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 300V | 48V | - | - | - | - | - | 10A | 480W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 91% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
|
|
3RX95010BA00ASI PS,115/230VAC SUPPLY,3A |
1 |
|
Tabla de datos |
- | Box | Active | AC | 1 | 85 ~ 132 VAC, 176 ~ 253 VAC | - | - | 30V | - | - | - | - | - | 3A | - | - | ITE (Commercial) | 84% | -10°C ~ 70°C | IP20 | CE, CSA, EAC, UKCA, UL | - |
|
|
2467230000PRO TOP2 120W 24V 5A UW |
0 |
|
Tabla de datos |
- | Box | Active | AC or DC | 1 | 85 ~ 550 VAC | 90V | 800V | 22.5 ~ 28.8V | - | - | - | - | - | 5A | 144W | 3.5 kV | Household Appliances, ITE (Commercial), Laboratory | 89% | -25°C ~ 75°C (With Derating) | Adjustable Output, IP20, Universal Input | CSA, TUV, UKCA | 60335-1; 60950-1; 61010-1 |
|
|
2467010000PRO TOP1 960W 24V 40A EX |
0 |
|
Tabla de datos |
- | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 22.5 ~ 28.8V | - | - | - | - | - | 40A | 1152W | 3.5 kV | ITE (Commercial) | 94% | -40°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|
787-844AC/DC DIN RAIL SUPPLY 24V 960W |
1 |
|
Tabla de datos |
- | Box | Active | AC or DC | 1 | 340 ~ 550 VAC | 480V | 780V | 24V | - | - | - | - | - | 40A | 960W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 93.6% | -25°C ~ 55°C | Adjustable Output, IP20, PFC, Universal Input | cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
|
|
2467050000PRO TOP1 960W 48V 20A CO |
1 |
|
Tabla de datos |
- | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 45 ~ 56V | - | - | - | - | - | 20A | 1120W | 3.5 kV | ITE (Commercial) | 94% | -40°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|
|
3RX95030BA00ASI POWER SUPPLY, 115/230VAC SUP |
1 |
|
Tabla de datos |
- | Box | Active | AC | 1 | 85 ~ 132 VAC, 176 ~ 550 VAC | - | - | 30V | - | - | - | - | - | 8A | - | - | ITE (Commercial) | 87% | -10°C ~ 70°C | IP20 | CE, EAC, UKCA, UL | 60950-1; 62368-1 |
|
|
S8VK-WA20248POWER SUPPLY 3 PHASE 3PH 240VAC |
1 |
|
Tabla de datos |
S8VK-W (2000W) | Box | Active | AC or DC | 1 | 170 ~ 264 VAC (1 ~ 3 Phase) | 240V | 384V | 48V | - | - | - | - | - | 45A | 2160W | 3 kV | Industrial, ITE (Commercial) | 96% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC | CE, UL | 62368-1; UL 508 |
|
|
S8VK-WA20224POWER SUPPLY 3 PHASE 3PH 240VAC |
1 |
|
Tabla de datos |
S8VK-W (2000W) | Box | Active | AC or DC | 1 | 170 ~ 264 VAC (1 ~ 3 Phase) | 240V | 384V | 24V | - | - | - | - | - | 85A | 2040W | 3 kV | Industrial, ITE (Commercial) | 96% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC | CE, UL | 62368-1; UL 508 |
|
AMEM3-3S277HAVZ-STDAC/DC CONVERTER 3.3V 2.9W |
7 |
|
Tabla de datos |
AMEM3-277HAVZ (3W) | Box | Obsolete | - | 1 | - | - | - | 3.3V | - | - | - | - | - | - | 2.9W | 4 kV | Household Appliances, ITE (Commercial) | 72% | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | cURus | 60335-1; 62368-1 |
