Inductores fijos
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo | Material - Núcleo | Inductancia | Tolerancia | Clasificación de corriente (amperios) | Corriente - Saturación (Isat) | Blindaje | Resistencia de CC (DCR) | Q a frecuencia | Frecuencia: autorresonante | Clasificaciones | Temperatura de funcionamiento | Frecuencia de inductancia - Prueba | Características | Tipo de montaje | Proveedor Dispositivo Paquete | Tamaño/Dimensión | Altura - Asentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR0604-1R5MLFIXED IND 1.5UH 3.6A 30 MOHM SMD |
1,681 |
|
Tabla de datos |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 3.6 A | 6.1A | Unshielded | 30mOhm Max | 32 @ 7.96MHz | 108MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
SDR0302-391KLFIXED IND 390UH 120MA 10.8OHM SM |
1,291 |
|
Tabla de datos |
SDR0302 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 120 mA | 140mA | Unshielded | 10.8Ohm Max | 40 @ 796kHz | 5.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|
SDR0403-820KLFIXED IND 82UH 420MA 1.27OHM SMD |
1,180 |
|
Tabla de datos |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 420 mA | 580mA | Unshielded | 1.27Ohm Max | 25 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
SDR0603-471KLFIXED IND 470UH 150MA 4.55OHM SM |
16,119 |
|
Tabla de datos |
SDR0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 150 mA | 260mA | Unshielded | 4.55Ohm Max | 29 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.154" (3.90mm) |
|
LQW15CNR56J1ZDFIXED IND 560NH 300MA 0.71OHM SM |
9,375 |
|
Tabla de datos |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±5% | 300 mA | - | Unshielded | 710mOhm Max | - | 300MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15CN77NJ1ZDFIXED IND 77NH 1.1A 0.09OHM SMD |
9,186 |
|
Tabla de datos |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 77 nH | ±5% | 1.1 A | - | Unshielded | 90mOhm Max | - | 2GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
MGAH0603R82M-100603 INDUCTOR 0.82UH 12A |
7,998 |
|
Tabla de datos |
MGAH0603 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 820 nH | ±20% | 12 A | 16A | Shielded | 6.9mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.122" (3.10mm) |
|
|
MGAH0603R68M-100603 INDUCTOR 0.68UH 14A |
7,781 |
|
Tabla de datos |
MGAH0603 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 680 nH | ±20% | 14 A | 17A | Shielded | 5.7mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.122" (3.10mm) |
|
B82498F3151J001FIXED IND 150NH 400MA 420MOHM SM |
5,990 |
|
Tabla de datos |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 400 mA | - | Unshielded | 420mOhm Max | 45 @ 250MHz | 1.15GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
.jpg)
|
252012CDMCDDS-R68MCFIXED IND 680NH 5.5A 30 MOHM SMD |
5,625 |
|
Tabla de datos |
252012CDMCD/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Molded | Metal Composite | 680 nH | ±20% | 5.5 A | 5.4A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
LQW15CN33NJ0ZDFIXED IND 33NH 1.3A 0.065OHM SMD |
4,589 |
|
Tabla de datos |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 nH | ±5% | 1.3 A | - | Unshielded | 65mOhm Max | - | 1.8GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
B82144F1104J000FIXED IND 100UH 760MA 0.7OHM TH |
4,141 |
|
Tabla de datos |
B82144F1 | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 760 mA | - | Unshielded | 700mOhm Max | 40 @ 796kHz | 5.2MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
IFSC1008ABER1R5M01FIXED IND 1.5UH 2.07A 0.072OHM |
2,709 |
|
Tabla de datos |
IFSC-1008AB | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 2.07 A | 2.12A | Shielded | 72mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
74479052FIXED IND 2.2UH 30MA 600MOHM SMD |
2,675 |
|
Tabla de datos |
WE-MI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | 2.2 µH | ±10% | 30 mA | - | Unshielded | 600mOhm Max | 45 @ 10MHz | 55MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
SDR0603-470KLFIXED IND 47UH 520MA 550MOHM SMD |
1,707 |
|
Tabla de datos |
SDR0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 520 mA | 620mA | Unshielded | 550mOhm Max | 20 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.154" (3.90mm) |
|

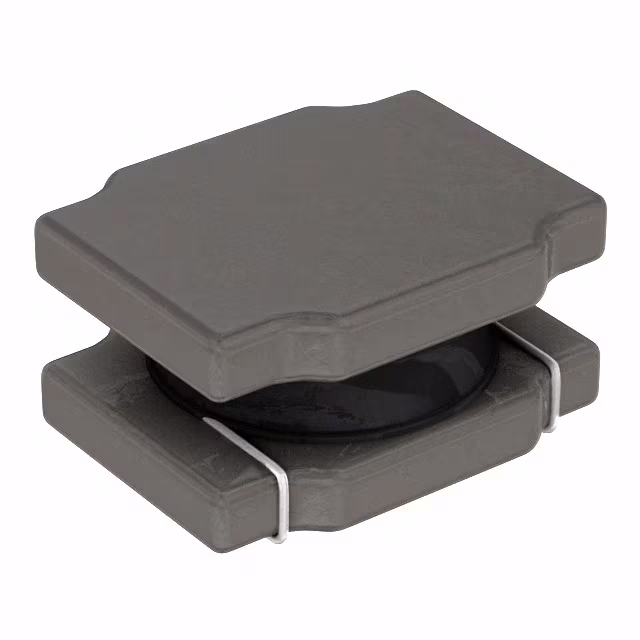

PA4330.222NLTFIXED IND 2.2UH 1.7A 170MOHM SMD |
5,781 |
|
Tabla de datos |
PA4330.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.7 A | 1.8A | Shielded | 170mOhm Max | - | 39MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.087" L x 0.071" W (2.20mm x 1.80mm) | 0.039" (1.00mm) |
|
B82144B1105J000FIXED IND 1MH 280MA 4.2 OHM TH |
2,094 |
|
Tabla de datos |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 280 mA | - | Unshielded | 4.2Ohm Max | 60 @ 252kHz | 2.2MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.571" (14.50mm) |
|
B82498F3180J000FIXED IND 18NH 700MA 80 MOHM SMD |
30,773 |
|
Tabla de datos |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±5% | 700 mA | - | Unshielded | 80mOhm Max | 60 @ 500MHz | 3.3GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82496C3221G000FIXED IND 220NH 110MA 7 OHM SMD |
7,036 |
|
Tabla de datos |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±2% | 110 mA | - | Unshielded | 7Ohm Max | 4 @ 25.2MHz | 1.3GHz | AEC-Q200 | -55°C ~ 150°C | 25.2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
SDE0403A-150MFIXED IND 15UH 850MA 259MOHM SMD |
6,420 |
|
Tabla de datos |
SDE0403A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 850 mA | 1.2A | Unshielded | 259mOhm Max | - | 29MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
