Inductores fijos
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo | Material - Núcleo | Inductancia | Tolerancia | Clasificación de corriente (amperios) | Corriente - Saturación (Isat) | Blindaje | Resistencia de CC (DCR) | Q a frecuencia | Frecuencia: autorresonante | Clasificaciones | Temperatura de funcionamiento | Frecuencia de inductancia - Prueba | Características | Tipo de montaje | Proveedor Dispositivo Paquete | Tamaño/Dimensión | Altura - Asentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0402HM-150EHTSFIXED IND 15NH 460MA 160MOHM SMD |
4,910 |
|
Tabla de datos |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±3% | 460 mA | - | Unshielded | 160mOhm | 30 @ 250MHz | 5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|

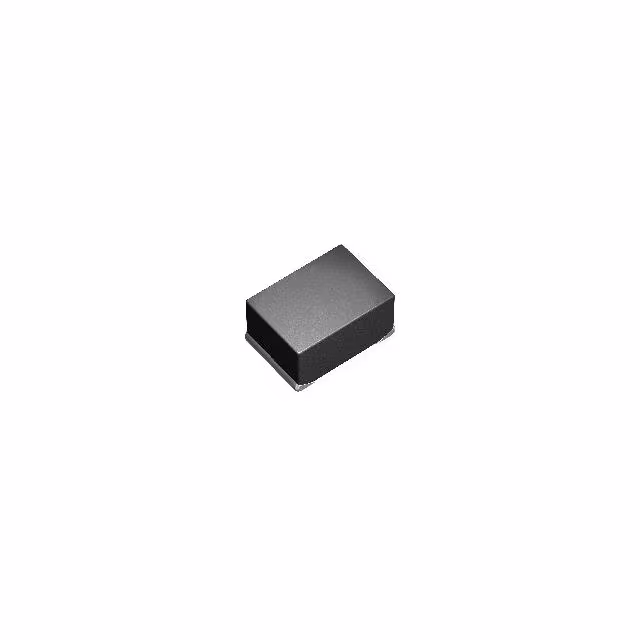

LSANB2520KKT3R3MFIXED IND 3.3UH 1.3A 200MOHM SMD |
4,205 |
|
Tabla de datos |
LSAN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 1.3 A | 1.55A | Shielded | 200mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
-,55.jpg)
|
CVH201205-R47MFIXED IND 470NH 1.1A 150MOHM SMD |
3,986 |
|
Tabla de datos |
CVH201205 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 1.1 A | - | Shielded | 150mOhm Max | - | 100MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.022" (0.55mm) |
|
NLFV32T-1R5M-EFFIXED IND 1.5UH 600MA 84MOHM SMD |
3,849 |
|
Tabla de datos |
NLFV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 600 mA | - | Shielded | 84mOhm Max | - | - | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
MLF2012DR39MTD25FIXED IND 390NH 200MA 450MOHM SM |
3,335 |
|
Tabla de datos |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 390 nH | ±20% | 200 mA | - | Shielded | 450mOhm Max | 25 @ 25MHz | 180MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
LSANB2520KKTR47MFIXED IND 470NH 3.2A 46 MOHM SMD |
3,000 |
|
Tabla de datos |
LSAN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 470 nH | ±20% | 3.2 A | 3.9A | Shielded | 46mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
MAMK2520TR68MFIXED IND 680NH 3.2A 48 MOHM SMD |
1,965 |
|
Tabla de datos |
MCOIL™, MA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 3.2 A | 3.2A | Shielded | 48mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
MLF2012DR12MTD25FIXED IND 120NH 300MA 200MOHM SM |
1,953 |
|
Tabla de datos |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 120 nH | ±20% | 300 mA | - | Shielded | 200mOhm Max | 20 @ 25MHz | 360MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
0402HM-4N3EBTSFIXED IND 4.3NH 750MA 70MOHM SMD |
1,686 |
|
Tabla de datos |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.3 nH | ±0.1nH | 750 mA | - | Unshielded | 70mOhm | 25 @ 250MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
-1,45mm.jpg)
|
LBR2012T101KVFIXED IND 100UH 50MA 4 OHM SMD |
1,641 |
|
- |
LB, R Type | 0805 (2012 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 100 µH | ±10% | 50 mA | - | Unshielded | 4Ohm | - | 8MHz | AEC-Q200 | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LSQNA201212T100MRFIXED IND 10UH 520MA 650MOHM SMD |
1,342 |
|
Tabla de datos |
LSQN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 200 mA | 200mA | Unshielded | 650mOhm Max | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLF2012DR18MTD25FIXED IND 180NH 300MA 250MOHM SM |
1,074 |
|
Tabla de datos |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 180 nH | ±20% | 300 mA | - | Shielded | 250mOhm Max | 20 @ 25MHz | 280MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
LQW15AN2N4B8ZDFIXED IND 2.4NH 2.53A 0.022OHM |
34,852 |
|
Tabla de datos |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 2.4 nH | ±0.1nH | 2.53 A | - | Unshielded | 22mOhm Max | 30 @ 250MHz | 15.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN3N5G8ZDFIXED IND 3.5NH 1.95A 0.03OHM SM |
20,356 |
|
Tabla de datos |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.5 nH | ±2% | 1.95 A | - | Unshielded | 30mOhm Max | 30 @ 250MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
MLJ1005HXG91NJTD0BFIXED IND 91NH 900MA 351MOHM SMD |
19,165 |
|
Tabla de datos |
MLJ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 91 nH | ±5% | 900 mA | - | Shielded | 351mOhm Max | 14 @ 13.56MHz | - | - | -55°C ~ 125°C | 13.56 MHz | - | Surface Mount | 0402 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
|
MLJ1005HXGR18JTD0BFIXED IND 180NH 500MA 780MOHM SM |
19,128 |
|
Tabla de datos |
MLJ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 180 nH | ±5% | 500 mA | - | Shielded | 780mOhm Max | 14 @ 13.56MHz | - | - | -55°C ~ 125°C | 13.56 MHz | - | Surface Mount | 0402 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
|
LQW15AN4N5G8ZDFIXED IND 4.5NH 1.45A 0.06OHM SM |
16,481 |
|
Tabla de datos |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.5 nH | ±2% | 1.45 A | - | Unshielded | 60mOhm Max | 34 @ 250MHz | 9.6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
.JPG)
|
CW105550A-7N5JFIXED IND 7.5NH 680MA 104MOHM SM |
10,066 |
|
Tabla de datos |
CW105550A | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 7.5 nH | ±5% | 680 mA | - | Unshielded | 104mOhm Max | 25 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
LQW15AN3N4B8ZDFIXED IND 3.4NH 1.95A 0.03OHM SM |
10,048 |
|
Tabla de datos |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.4 nH | ±0.1nH | 1.95 A | - | Unshielded | 30mOhm Max | 30 @ 250MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
CW105550A-11NJFIXED IND 11NH 640MA 120MOHM SMD |
10,000 |
|
Tabla de datos |
CW105550A | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 11 nH | ±5% | 640 mA | - | Unshielded | 120mOhm Max | 26 @ 250MHz | 3.68GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
