Inductores fijos
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo | Material - Núcleo | Inductancia | Tolerancia | Clasificación de corriente (amperios) | Corriente - Saturación (Isat) | Blindaje | Resistencia de CC (DCR) | Q a frecuencia | Frecuencia: autorresonante | Clasificaciones | Temperatura de funcionamiento | Frecuencia de inductancia - Prueba | Características | Tipo de montaje | Proveedor Dispositivo Paquete | Tamaño/Dimensión | Altura - Asentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4320.223NLTFIXED IND 22UH 5.6A 30 MOHM SMD |
1,490 |
|
Tabla de datos |
PA4320 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 5.6 A | 6.8A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|
78477047FIXED IND 4.7UH 6A 20 MOHM SMD |
1,222 |
|
Tabla de datos |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±20% | 6 A | 11A | Shielded | 20mOhm Max | - | 58.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
|
784770220FIXED IND 22UH 4A 44.5 MOHM SMD |
1,159 |
|
Tabla de datos |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 4 A | 4.7A | Shielded | 44.5mOhm Max | - | 15.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
|
784770331FIXED IND 330UH 1A 468 MOHM SMD |
224 |
|
Tabla de datos |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 330 µH | ±20% | 1 A | 1.2A | Shielded | 468mOhm Max | - | 2.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
74454068FIXED IND 7UH 2.2A 0.055OHM SMD |
211 |
|
Tabla de datos |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 7 µH | ±20% | 2.2 A | 4.1A | Shielded | 55mOhm Max | - | 33MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
744393440056FIXED IND 560NH 16A 2.9MOHM SMD |
160 |
|
Tabla de datos |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 560 nH | ±20% | 16 A | 30.5A | Shielded | 2.9mOhm | - | 110MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|

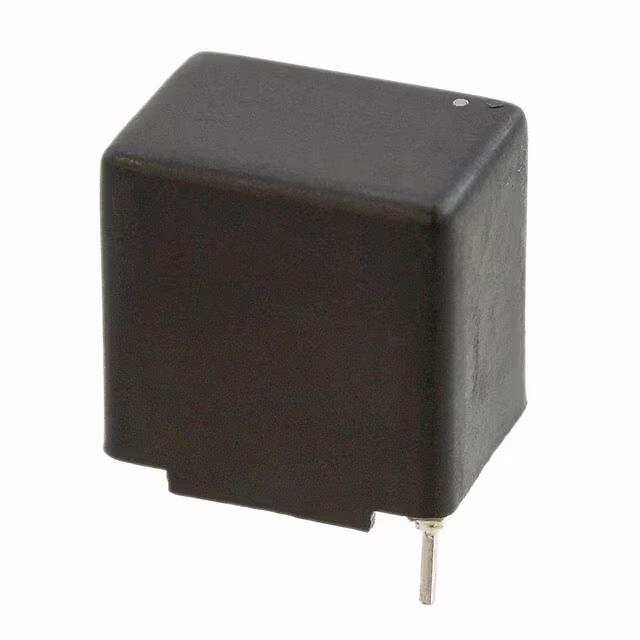

PE-52646NLFIXED IND 220UH 1.5A 420 MOHM TH |
1,283 |
|
Tabla de datos |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 220 µH | ±20% | 1.5 A | - | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.510" W (18.03mm x 12.95mm) | 0.710" (18.03mm) |
|
MPL-AY1265-220FIXED IND 22UH 7A 31.4 MOHM SMD |
723 |
|
Tabla de datos |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 22 µH | - | 7 A | 9A | Unshielded | 31.4mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
VLBU10060120T-R09L-1FIXED IND 90NH 83A 0.12 MOHM SMD |
600 |
|
Tabla de datos |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 90 nH | ±15% | 83 A | 140A | Unshielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
7445530FIXED IND 1MH 70MA 13.8 OHM SMD |
103 |
|
Tabla de datos |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 70 mA | 100mA | Unshielded | 13.8Ohm Max | - | 2.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

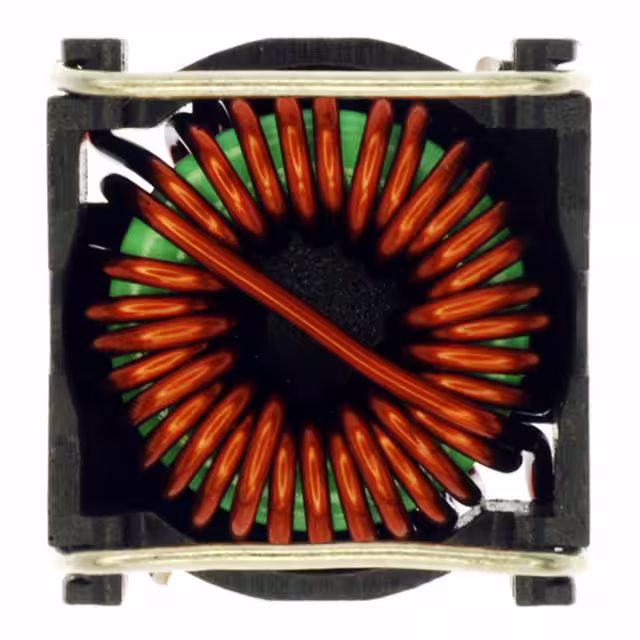

P0846SNLFIXED IND 14.8UH 5A 27 MOHM SMD |
822 |
|
Tabla de datos |
LCI-50 | Nonstandard | Tube | Active | Toroidal | - | 14.8 µH | ±20% | 5 A | - | Shielded | 27mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
7443552100FIXED IND 1UH 16A 3.3 MOHM SMD |
2,610 |
|
Tabla de datos |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 16 A | 20A | Shielded | 3.3mOhm | - | 80MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
|
744355215FIXED IND 150NH 25A 0.58MOHM SMD |
2,167 |
|
Tabla de datos |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 nH | ±20% | 25 A | 60A | Shielded | 0.58mOhm | - | 275MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
|
7443552280FIXED IND 2.8UH 9.5A 10.6MOHM SM |
618 |
|
Tabla de datos |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.8 µH | ±20% | 9.5 A | 11A | Shielded | 10.6mOhm | - | 46MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
|
744355256FIXED IND 560NH 20A 1.61MOHM SMD |
559 |
|
Tabla de datos |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 560 nH | ±20% | 20 A | 30A | Shielded | 1.61mOhm | - | 100MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
|
7843330390FIXED IND 3.9UH 11.2A 8.7MOHM SM |
437 |
|
Tabla de datos |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 11.2 A | 17.8A | Shielded | 8.7mOhm Max | - | 50MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1011 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
|
78433490056WE-CHSA PERFORMANCE SMD HIGH CUR |
340 |
|
Tabla de datos |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 560 nH | ±20% | 15.6 A | 40.5A | Shielded | 4.1mOhm Max | - | 184MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.319" W (8.10mm x 8.10mm) | 0.366" (9.30mm) |
|
|
VLBU10060120T-R15L-1FIXED IND 150NH 83A 0.12MOHM SMD |
195 |
|
Tabla de datos |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±15% | 83 A | 82A | Unshielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
B82477R4333M100FIXED IND 33UH 3.55A 50 MOHM SMD |
3,364 |
|
Tabla de datos |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.55 A | 5.2A | Shielded | 50mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
AIUR-15-102KFIXED IND 1MH 1A 710 MOHM TH |
1,443 |
|
Tabla de datos |
AIUR-15 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 1 A | - | Unshielded | 710mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.709" Dia (18.00mm) | 0.787" (20.00mm) |
