Inductores fijos
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo | Material - Núcleo | Inductancia | Tolerancia | Clasificación de corriente (amperios) | Corriente - Saturación (Isat) | Blindaje | Resistencia de CC (DCR) | Q a frecuencia | Frecuencia: autorresonante | Clasificaciones | Temperatura de funcionamiento | Frecuencia de inductancia - Prueba | Características | Tipo de montaje | Proveedor Dispositivo Paquete | Tamaño/Dimensión | Altura - Asentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0603LS-223XJRCRF INDUCTOR, FERRITE CORE, 5% TO Coilcraft |
31,633 |
|
Tabla de datos |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 22 µH | ±5% | 130 mA | - | Unshielded | 8.81Ohm Max | 22 @ 2.5MHz | 19MHz | AEC-Q200 | -40°C ~ 100°C | 2.5 MHz | - | Surface Mount | 0603 | 0.071" L x 0.050" W (1.80mm x 1.27mm) | 0.044" (1.11mm) |
|
0805LS-102XJRCRF INDUCTOR, FERRITE CORE, 5% TO Coilcraft |
30,726 |
|
Tabla de datos |
0805LS | 0805 (2012 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | 1 µH | ±5% | 500 mA | - | Unshielded | 690mOhm Max | 20 @ 7.9MHz | 340MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.075" W (2.29mm x 1.91mm) | 0.063" (1.60mm) |
|
|
0805LS-681XJRCRF INDUCTOR, FERRITE CORE, 5% TO Coilcraft |
29,177 |
|
Tabla de datos |
0805LS | 0805 (2012 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | 680 nH | ±5% | 590 mA | - | Unshielded | 460mOhm Max | 20 @ 7.9MHz | 400MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.075" W (2.29mm x 1.91mm) | 0.063" (1.60mm) |
|
|
0603LS-821XJRCRF INDUCTOR, FERRITE CORE, 5% TO Coilcraft |
27,291 |
|
Tabla de datos |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ferrite | 820 nH | ±5% | 400 mA | - | Unshielded | 690mOhm Max | 15 @ 7.9MHz | 410MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.044" (1.11mm) |
|

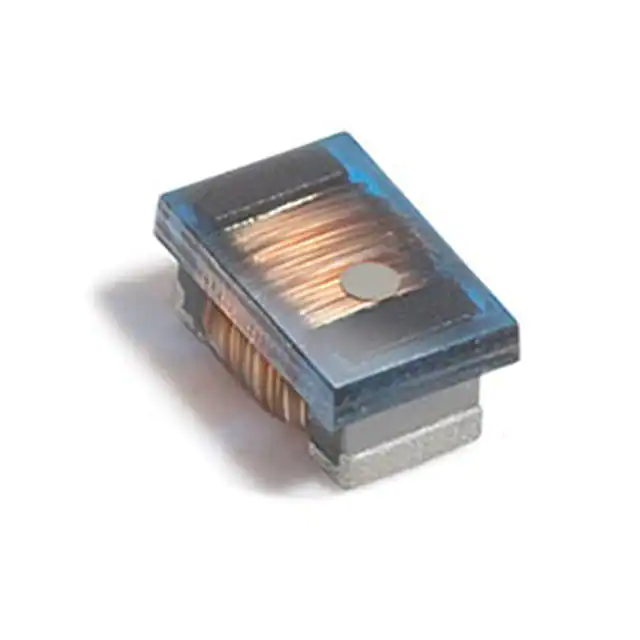

0603AF-102XJRWFIXED IND 1UH 400MA 840MOHM SMD Coilcraft |
24,094 |
|
Tabla de datos |
0603AF | 0603 (1608 Metric) | Strip | Active | Wirewound | Ferrite | 1 µH | ±5% | 400 mA | - | Unshielded | 840mOhm Max | 17 @ 7.9MHz | 400MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.036" (0.91mm) |
|
|
0805LS-153XJRCRF INDUCTOR, FERRITE CORE, 5% TO Coilcraft |
22,598 |
|
Tabla de datos |
0805LS | 0805 (2012 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | 15 µH | ±5% | 180 mA | - | Unshielded | 5.03Ohm Max | 18 @ 2.5MHz | 17MHz | AEC-Q200 | -40°C ~ 100°C | 2.5 MHz | - | Surface Mount | 0805 | 0.090" L x 0.075" W (2.29mm x 1.91mm) | 0.063" (1.60mm) |
|
|
0603LS-561XJRCRF INDUCTOR, FERRITE CORE, 5% TO Coilcraft |
21,022 |
|
Tabla de datos |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 560 nH | ±5% | 550 mA | - | Unshielded | 440mOhm Max | 15 @ 7.9MHz | 525MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.044" (1.11mm) |
|
|
0603AF-681XJRWFIXED IND 680NH 490MA 460MOHM SM Coilcraft |
15,418 |
|
Tabla de datos |
0603AF | 0603 (1608 Metric) | Strip | Active | Wirewound | Ferrite | 680 nH | ±5% | 490 mA | - | Unshielded | 460mOhm Max | 16 @ 7.9MHz | 530MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.036" (0.91mm) |
|
|
0603AF-152XJRWFIXED IND 1.5UH 280MA 1.3OHM SMD Coilcraft |
13,562 |
|
Tabla de datos |
0603AF | 0603 (1608 Metric) | Strip | Active | Wirewound | Ferrite | 1.5 µH | ±5% | 280 mA | - | Unshielded | 1.3Ohm Max | 17 @ 7.9MHz | 330MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.036" (0.91mm) |
|
|
0603AF-111XJRWFIXED IND 110NH 1.6A 60MOHM SMD Coilcraft |
13,136 |
|
Tabla de datos |
0603AF | 0603 (1608 Metric) | Strip | Active | Wirewound | Ferrite | 110 nH | ±5% | 1.6 A | - | Unshielded | 60mOhm Max | 15 @ 7.9MHz | 1.23GHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.036" (0.91mm) |
