Inductores fijos
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo | Material - Núcleo | Inductancia | Tolerancia | Clasificación de corriente (amperios) | Corriente - Saturación (Isat) | Blindaje | Resistencia de CC (DCR) | Q a frecuencia | Frecuencia: autorresonante | Clasificaciones | Temperatura de funcionamiento | Frecuencia de inductancia - Prueba | Características | Tipo de montaje | Proveedor Dispositivo Paquete | Tamaño/Dimensión | Altura - Asentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0603DC-3N9XGRWFIXED IND 3.9NH 2.8A 40MOHM SMD Coilcraft |
1,626 |
|
Tabla de datos |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 3.9 nH | ±2% | 2.8 A | - | Unshielded | 40mOhm Max | 105 @ 900MHz | 11.25GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-3N3XGRWFIXED IND 3.3NH 2.77A 42MOHM SMD Coilcraft |
1,018 |
|
Tabla de datos |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 3.3 nH | ±2% | 2.77 A | - | Unshielded | 42mOhm Max | 94 @ 900MHz | 9.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|

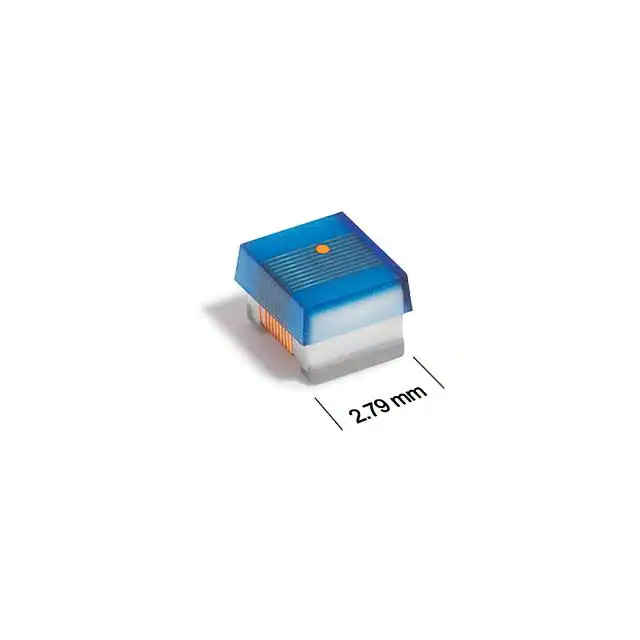

1008CS-560XJRC1008CS-560XJRC Coilcraft |
58,536 |
|
Tabla de datos |
1008CS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic | 56 nH | ±5% | 1 A | - | Unshielded | 180mOhm Max | 65 @ 350MHz | 1.3GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
|
1008CS-122XJRC1008CS-122XJRC Coilcraft |
43,594 |
|
Tabla de datos |
1008CS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic | 1.2 µH | ±5% | 310 mA | - | Unshielded | 2Ohm Max | 35 @ 50MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
|
1008CS-220XJRC1008CS-220XJRC Coilcraft |
42,137 |
|
Tabla de datos |
1008CS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic | 22 nH | ±5% | 1 A | - | Unshielded | 120mOhm Max | 55 @ 350MHz | 2.4GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
|
1008CS-102XJRC1008CS-102XJRC Coilcraft |
35,323 |
|
Tabla de datos |
1008CS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic | 1 µH | ±5% | 370 mA | - | Unshielded | 1.75Ohm Max | 35 @ 50MHz | 290MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
|
1008CS-331XJRC1008CS-331XJRC Coilcraft |
30,112 |
|
Tabla de datos |
1008CS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic | 330 nH | ±5% | 450 mA | - | Unshielded | 1.05Ohm Max | 45 @ 100MHz | 570MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
|
1008CS-470XJRC1008CS-470XJRC Coilcraft |
29,425 |
|
Tabla de datos |
1008CS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic | 47 nH | ±5% | 1 A | - | Unshielded | 160mOhm Max | 65 @ 350MHz | 1.5GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
|
1008CS-821XJRC1008CS-821XJRC Coilcraft |
27,571 |
|
Tabla de datos |
1008CS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic | 820 nH | ±5% | 400 mA | - | Unshielded | 1.61Ohm Max | 45 @ 100MHz | 350MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
|
1008CS-472XJRC1008CS-472XJRC Coilcraft |
26,365 |
|
Tabla de datos |
1008CS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic | 4.7 µH | ±5% | 260 mA | - | Unshielded | 4Ohm Max | 20 @ 25MHz | 90MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
