Inductores fijos
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo | Material - Núcleo | Inductancia | Tolerancia | Clasificación de corriente (amperios) | Corriente - Saturación (Isat) | Blindaje | Resistencia de CC (DCR) | Q a frecuencia | Frecuencia: autorresonante | Clasificaciones | Temperatura de funcionamiento | Frecuencia de inductancia - Prueba | Características | Tipo de montaje | Proveedor Dispositivo Paquete | Tamaño/Dimensión | Altura - Asentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-0418FS-101M-T3FIXED IND 100UH 420MA 1.596 OHM |
2,308 |
|
Tabla de datos |
ASPI-0418FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 400 mA | 490mA | Shielded | 1.56Ohm Max | - | 5.2MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
744765062AFIXED IND 6.2NH 760MA 83MOHM SMD |
2,275 |
|
Tabla de datos |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.2 nH | ±5% | 760 mA | - | Unshielded | 83mOhm Max | 23 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765124AFIXED IND 24NH 400MA 300MOHM SMD |
2,220 |
|
Tabla de datos |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 24 nH | ±5% | 400 mA | - | Unshielded | 300mOhm Max | 25 @ 250MHz | 2.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765130AFIXED IND 30NH 400MA 300MOHM SMD |
2,200 |
|
Tabla de datos |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 30 nH | ±5% | 400 mA | - | Unshielded | 300mOhm Max | 25 @ 250MHz | 2.35GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765111AFIXED IND 11NH 640MA 120MOHM SMD |
2,186 |
|
Tabla de datos |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 11 nH | ±5% | 640 mA | - | Unshielded | 120mOhm Max | 26 @ 250MHz | 3.68GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
ASPI-4020S-2R2N-TFIXED IND 2.2UH 1.85A 40MOHM SMD |
2,067 |
|
Tabla de datos |
ASPI-4020S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.85 A | 3.4A | Shielded | 40mOhm | - | 49MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
744761247AWE-KI SMT WIRE WOUND CERAMIC IND |
1,902 |
|
Tabla de datos |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±5% | 170 mA | - | Unshielded | 2.1Ohm Max | 15 @ 25MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
7447603120AWE-KI SMT WIRE WOUND CERAMIC IND |
1,823 |
|
Tabla de datos |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.2 µH | ±5% | 200 mA | - | Unshielded | 3.2Ohm Max | 18 @ 50MHz | 190MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
LSXNH8080YKL151MJGFIXED IND 150UH 800MA 546MOHM SM |
1,796 |
|
Tabla de datos |
LSXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 800 mA | 900mA | Shielded | 546mOhm Max | - | 5MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|

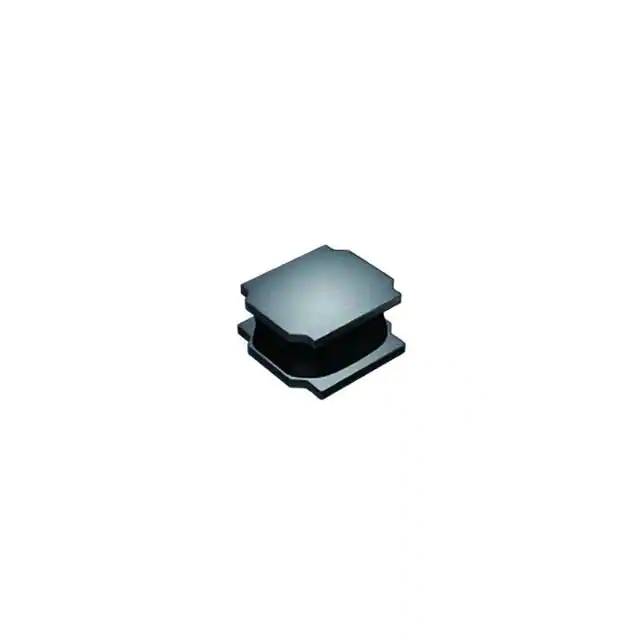

LSXNH8080YBL1R0NJGFIXED IND 1UH 7.8A 7.8 MOHM SMD |
1,676 |
|
Tabla de datos |
LSXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 7.8 A | 13A | Shielded | 7.8mOhm Max | - | 85MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
744765043AFIXED IND 4.3NH 700MA 91MOHM SMD |
1,663 |
|
Tabla de datos |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.3 nH | ±5% | 700 mA | - | Unshielded | 91mOhm Max | 18 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765120AFIXED IND 20NH 420MA 250MOHM SMD |
1,638 |
|
Tabla de datos |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 20 nH | ±5% | 420 mA | - | Unshielded | 250mOhm Max | 25 @ 250MHz | 3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765210AFIXED IND 100NH 100MA 2.52OHM SM |
1,444 |
|
Tabla de datos |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±5% | 100 mA | - | Unshielded | 2.52Ohm Max | 20 @ 150MHz | 1.3GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
SDCHA1V8040-4R7-RIND SMD POWER 4.7UH 5.8A |
1,385 |
|
Tabla de datos |
SDCHA1V80 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±20% | 5.8 A | 6.7A | Shielded | 19.5mOhm | - | 38MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
7447602560AWE-KI SMT WIRE WOUND CERAMIC IND |
1,340 |
|
Tabla de datos |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 560 nH | ±5% | 230 mA | - | Unshielded | 1.1Ohm Max | 18 @ 100MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
|
744765156AFIXED IND 56NH 100MA 970MOHM SMD |
1,312 |
|
Tabla de datos |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±5% | 100 mA | - | Unshielded | 970mOhm Max | 22 @ 200MHz | 1.76GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
BWVS004040181R0M00FIXED IND 1UH 2.8A 32 MOHM SMD |
18,063 |
|
Tabla de datos |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±20% | 2.8 A | 4.1A | Shielded | 32mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
PE-0603CD560GTTFIXED IND 56NH 600MA 310MOHM SMD |
12,422 |
|
Tabla de datos |
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±2% | 600 mA | - | Unshielded | 310mOhm Max | 35 @ 200MHz | 1.9GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|
|
BWVS00404018220M00FIXED IND 22UH 850MA 350MOHM SMD |
11,690 |
|
Tabla de datos |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 850 mA | 900mA | Shielded | 350mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
B82496C3470G000FIXED IND 47NH 270MA 950MOHM SMD |
10,664 |
|
Tabla de datos |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±2% | 270 mA | - | Unshielded | 950mOhm Max | 14 @ 100MHz | 2.5GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
