Inductores fijos
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo | Material - Núcleo | Inductancia | Tolerancia | Clasificación de corriente (amperios) | Corriente - Saturación (Isat) | Blindaje | Resistencia de CC (DCR) | Q a frecuencia | Frecuencia: autorresonante | Clasificaciones | Temperatura de funcionamiento | Frecuencia de inductancia - Prueba | Características | Tipo de montaje | Proveedor Dispositivo Paquete | Tamaño/Dimensión | Altura - Asentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82559B6682A027FIXED IND 6.8UH 34.5A 1.66 MOHM |
201 |
|
Tabla de datos |
ERU27 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 34.5 A | 44A | Shielded | 1.66mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.636" (16.15mm) |
|

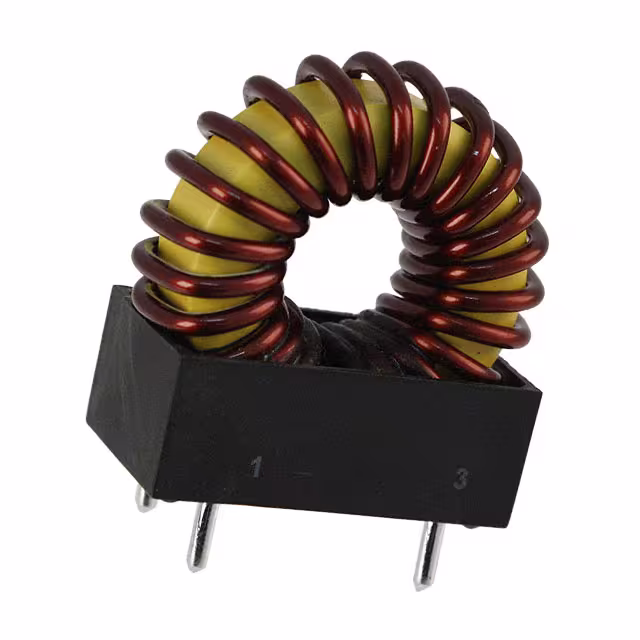

PE-51506NLFIXED IND 17UH 17A 6.5 MOHM TH |
569 |
|
Tabla de datos |
- | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 17 µH | - | 17 A | - | Unshielded | 6.5mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.600" L x 0.800" W (40.64mm x 20.32mm) | 1.720" (43.68mm) |
|
1120-120K-RCFIXED IND 12UH 11.4A 9 MOHM TH |
206 |
|
Tabla de datos |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 11.4 A | - | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
74437529203331FIXED IND 330UH 6.1A 70.45 MOHM |
326 |
|
Tabla de datos |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 330 µH | ±20% | 6.1 A | 4.3A | Shielded | 70.45mOhm | - | 2.4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
|
74437429203101FIXED IND 100UH 8.8A 35.9MOHM SM |
288 |
|
Tabla de datos |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 100 µH | ±20% | 8.8 A | 9.7A | Shielded | 35.9mOhm | - | 4.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
|
74437529203470FIXED IND 47UH 18.7A 8.8MOHM SMD |
207 |
|
Tabla de datos |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 47 µH | ±20% | 18.7 A | 13A | Shielded | 8.8mOhm | - | 6.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
|
74437529203681FIXED IND 680UH 4.8A 118.3 MOHM |
145 |
|
Tabla de datos |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 680 µH | ±20% | 4.8 A | 3A | Shielded | 118.3mOhm | - | 1.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
B82559A7682A024FIXED IND 6.8UH 35A 1.45MOHM SMD |
212 |
|
Tabla de datos |
ERU24 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 35 A | 37.9A | Shielded | 1.45mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.972" L x 0.898" W (24.70mm x 22.80mm) | 0.734" (18.65mm) |
|
CTX50-2-52LP-RFIXED IND 50UH 4.9A 32.6 MOHM TH |
185 |
|
Tabla de datos |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 4.9 A | 4.9A | Unshielded | 32.6mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.850" Dia (21.60mm) | 0.535" (13.60mm) |
|
ATCA-08-471M-HFIXED IND 470UH 7A 64 MOHM TH |
1,578 |
|
Tabla de datos |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 470 µH | ±20% | 7 A | - | Unshielded | 64mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.673" Dia (42.50mm) | 0.846" (21.50mm) |
|

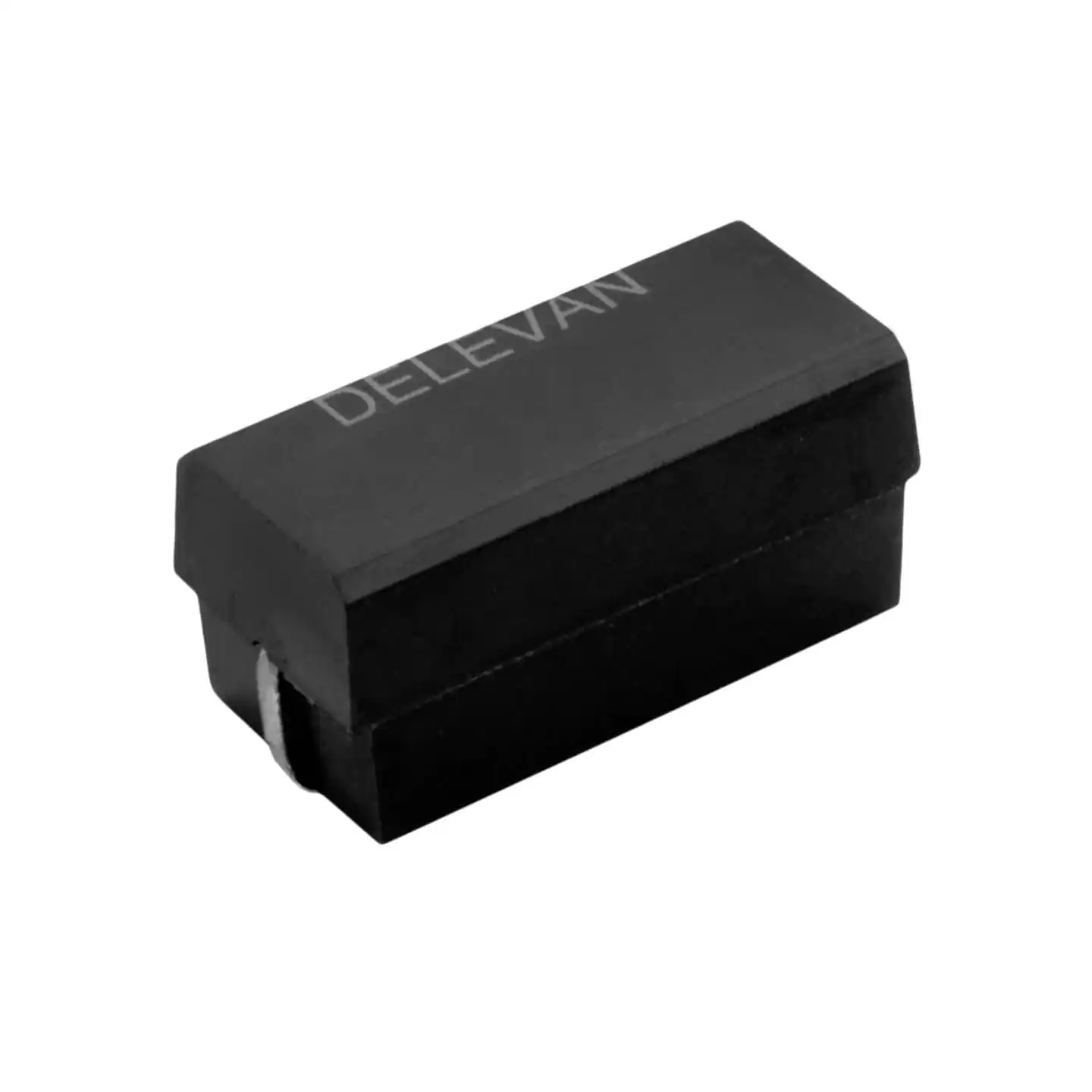

5500R-566KFIXED IND 56MH 160MA 38 OHM SMD |
1,540 |
|
Tabla de datos |
5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 56 mH | ±10% | 160 mA | 70mA | Unshielded | 38Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
ATCA-08-251M-VFIXED IND 250UH 10A 27 MOHM TH |
986 |
|
Tabla de datos |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 250 µH | ±20% | 10 A | - | Unshielded | 27mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.673" L x 0.846" W (42.50mm x 21.50mm) | - |
|
IH10EB101KFIXED IND 100UH 10A 30 MOHM TH |
121 |
|
Tabla de datos |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 10 A | 7A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.935" Dia x 1.625" L (23.75mm x 41.28mm) | - |
|
1110-100K-RCFIXED IND 10UH 9A 10 MOHM TH |
217 |
|
Tabla de datos |
1110 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 9 A | - | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
DC780R-103KFIXED IND 10UH 11.4A 9 MOHM TH |
177 |
|
Tabla de datos |
DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 11.4 A | 34.5A | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|
IHDM1107BBEV8R2M30FG, IHDM-1107BB-30 8.2 20% |
268 |
|
Tabla de datos |
IHDM-1107BB-30 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 8.2 µH | ±20% | 39 A | 73A | Unshielded | 1.73mOhm Max | - | 22MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
IHLP8787MZER100M51FIXED IND 10UH 28A 4.14 MOHM SMD |
120 |
|
Tabla de datos |
IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 28 A | 28A | Shielded | 4.14mOhm Max | - | 6.04MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
7443643300FIXED IND 33UH 30A 2.4 MOHM SMD |
1,034 |
|
Tabla de datos |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 33 µH | ±15% | 30 A | 11.5A | Shielded | 2.4mOhm | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2818 | 1.122" L x 0.768" W (28.50mm x 19.50mm) | 0.728" (18.50mm) |
|
|
7443640470FIXED IND 4.7UH 30A 2.4 MOHM SMD |
227 |
|
Tabla de datos |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 4.7 µH | ±15% | 30 A | 78A | Shielded | 2.4mOhm | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2818 | 1.122" L x 0.768" W (28.50mm x 19.50mm) | 0.728" (18.50mm) |
|
1130-101K-RCFIXED IND 100UH 9A 34 MOHM TH |
158 |
|
Tabla de datos |
1130 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 9 A | - | Unshielded | 34mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
