Inductores fijos
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo | Material - Núcleo | Inductancia | Tolerancia | Clasificación de corriente (amperios) | Corriente - Saturación (Isat) | Blindaje | Resistencia de CC (DCR) | Q a frecuencia | Frecuencia: autorresonante | Clasificaciones | Temperatura de funcionamiento | Frecuencia de inductancia - Prueba | Características | Tipo de montaje | Proveedor Dispositivo Paquete | Tamaño/Dimensión | Altura - Asentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

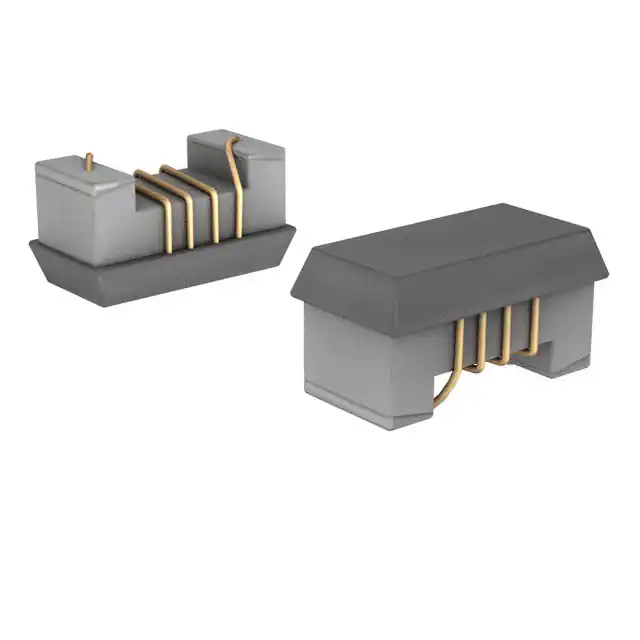

744916125FIXED IND 25NH 700MA 300MOHM SMD Würth Elektronik |
2,022 |
|
Tabla de datos |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 25 nH | ±2% | 700 mA | - | Unshielded | 300mOhm Max | 26 @ 250MHz | 3.15GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916126FIXED IND 26NH 700MA 275MOHM SMD Würth Elektronik |
2,648 |
|
Tabla de datos |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 26 nH | ±2% | 700 mA | - | Unshielded | 275mOhm Max | 27 @ 250MHz | 3.15GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916127FIXED IND 27NH 450MA 330MOHM SMD Würth Elektronik |
2,173 |
|
Tabla de datos |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±2% | 450 mA | - | Unshielded | 330mOhm Max | 27 @ 250MHz | 3.2GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916130FIXED IND 30NH 450MA 400MOHM SMD Würth Elektronik |
3,925 |
|
Tabla de datos |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 30 nH | ±2% | 450 mA | - | Unshielded | 400mOhm Max | 25 @ 250MHz | 2.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916136FIXED IND 36NH 480MA 360MOHM SMD Würth Elektronik |
2,100 |
|
Tabla de datos |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 36 nH | ±2% | 480 mA | - | Unshielded | 360mOhm Max | 26 @ 250MHz | 2.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916137FIXED IND 37NH 470MA 480MOHM SMD Würth Elektronik |
2,731 |
|
Tabla de datos |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 37 nH | ±2% | 470 mA | - | Unshielded | 480mOhm Max | 26 @ 250MHz | 2.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916139FIXED IND 39NH SMD Würth Elektronik |
2,353 |
|
Tabla de datos |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±2% | - | - | Unshielded | - | - | - | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916140FIXED IND 40NH 450MA 520MOHM SMD Würth Elektronik |
4,573 |
|
Tabla de datos |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 40 nH | ±2% | 450 mA | - | Unshielded | 520mOhm Max | 28 @ 250MHz | 2.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916143FIXED IND 43NH 450MA 520MOHM SMD Würth Elektronik |
4,803 |
|
Tabla de datos |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 43 nH | ±2% | 450 mA | - | Unshielded | 520mOhm Max | 26 @ 250MHz | 2.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916151FIXED IND 51NH 360MA 700MOHM SMD Würth Elektronik |
2,295 |
|
Tabla de datos |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 51 nH | ±2% | 360 mA | - | Unshielded | 700mOhm Max | 26 @ 250MHz | 2.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
