Inductores fijos
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo | Material - Núcleo | Inductancia | Tolerancia | Clasificación de corriente (amperios) | Corriente - Saturación (Isat) | Blindaje | Resistencia de CC (DCR) | Q a frecuencia | Frecuencia: autorresonante | Clasificaciones | Temperatura de funcionamiento | Frecuencia de inductancia - Prueba | Características | Tipo de montaje | Proveedor Dispositivo Paquete | Tamaño/Dimensión | Altura - Asentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74437529203330FIXED IND 33UH 20.2A 6.9MOHM SMD Würth Elektronik |
18 |
|
Tabla de datos |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 33 µH | ±20% | 20.2 A | 15.4A | Shielded | 6.9mOhm | - | 7.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
|
74437529203221FIXED IND 220UH 8.8A 36.45 MOHM Würth Elektronik |
2,374 |
|
Tabla de datos |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 220 µH | ±20% | 8.8 A | 5.3A | Shielded | 36.45mOhm | - | 2.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
7443640680FIXED IND 6.8UH 30A 2.4 MOHM SMD Würth Elektronik |
1 |
|
Tabla de datos |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 6.8 µH | ±15% | 30 A | 55A | Shielded | 2.4mOhm | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2818 | 1.122" L x 0.768" W (28.50mm x 19.50mm) | 0.728" (18.50mm) |
|

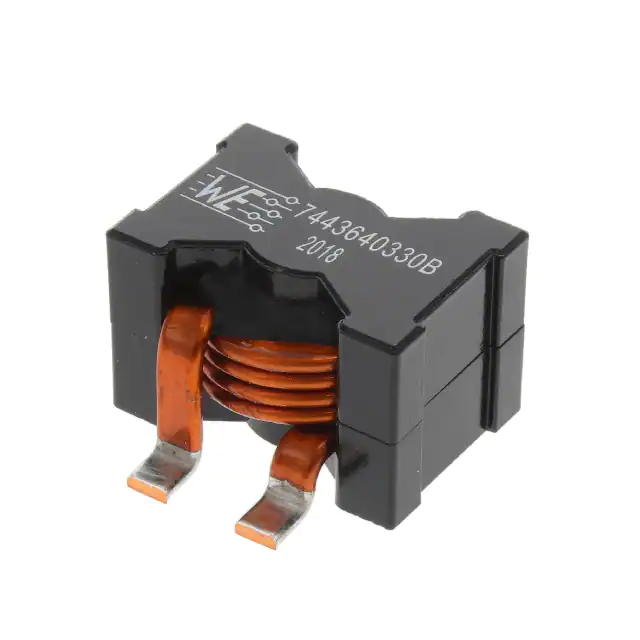

7443640330BFIXED IND 3.3UH 47.5A 0.968 MOHM Würth Elektronik |
2,357 |
|
Tabla de datos |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 3.3 µH | ±20% | 47.5 A | 70A | Shielded | 0.968mOhm Max | - | 28.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.728" (18.50mm) |
|
744760147AFIXED IND 47NH 500MA 150MOHM SMD Würth Elektronik |
14 |
|
Tabla de datos |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 500 mA | - | Unshielded | 150mOhm Max | 60 @ 500MHz | 1.7GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
744765027AFIXED IND 2.7NH 640MA 120MOHM SM Würth Elektronik |
3,050 |
|
Tabla de datos |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.7 nH | ±0.2nH | 640 mA | - | Unshielded | 120mOhm Max | 16 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
744901022FIXED IND 2.2NH 440MA 300MOHM SM Würth Elektronik |
3,759 |
|
Tabla de datos |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 2.2 nH | ±0.1nH | 440 mA | - | Unshielded | 300mOhm Max | 13 @ 500MHz | 8GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
.jpg)
|
74479762133FIXED IND 330NH 1.1A 160MOHM SMD Würth Elektronik |
4,933 |
|
Tabla de datos |
WE-PMI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 330 nH | ±20% | 1.1 A | 1.2A | Unshielded | 160mOhm | 7 @ 1MHz | 200MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
7447720220FIXED IND 22UH 3A 55 MOHM TH Würth Elektronik |
4,681 |
|
Tabla de datos |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 22 µH | ±10% | 3 A | 3.3A | Unshielded | 55mOhm Max | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
744045120FIXED IND 12UH 800MA 420MOHM SMD Würth Elektronik |
2,781 |
|
Tabla de datos |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 800 mA | 1.4A | Unshielded | 420mOhm Max | 48 @ 1MHz | 28MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
