Inductores fijos
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo | Material - Núcleo | Inductancia | Tolerancia | Clasificación de corriente (amperios) | Corriente - Saturación (Isat) | Blindaje | Resistencia de CC (DCR) | Q a frecuencia | Frecuencia: autorresonante | Clasificaciones | Temperatura de funcionamiento | Frecuencia de inductancia - Prueba | Características | Tipo de montaje | Proveedor Dispositivo Paquete | Tamaño/Dimensión | Altura - Asentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74437529203471FIXED IND 470UH 5.5A 83.45 MOHM Würth Elektronik |
99 |
|
Tabla de datos |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 470 µH | ±20% | 5.5 A | 3.7A | Shielded | 83.45mOhm | - | 1.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
|
74437429203330FIXED IND 33UH 13A 15.3 MOHM SMD Würth Elektronik |
28 |
|
Tabla de datos |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 33 µH | ±20% | 13 A | 16.3A | Shielded | 15.3mOhm | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
7443641000BFIXED IND 10UH 47.5A 0.968 MOHM Würth Elektronik |
48 |
|
Tabla de datos |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±20% | 47.5 A | 25.1A | Shielded | 0.968mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.728" (18.50mm) |
|
7443640470BFIXED IND 4.7UH 47.5A 0.968 MOHM Würth Elektronik |
45 |
|
Tabla de datos |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 4.7 µH | ±20% | 47.5 A | 49.5A | Shielded | 0.968mOhm Max | - | 22.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.728" (18.50mm) |
|

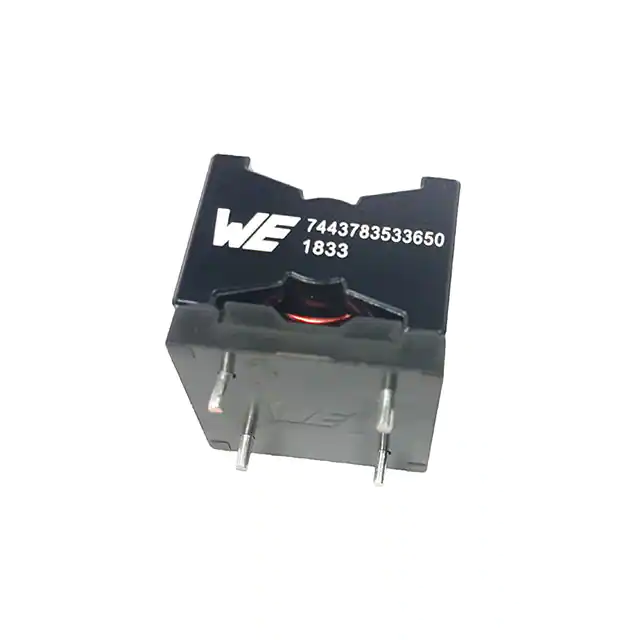

7443783533650FIXED IND 65UH 17.2A 14.44 MOHM Würth Elektronik |
40 |
|
Tabla de datos |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 65 µH | ±20% | 17.2 A | 26.6A | Shielded | 14.44mOhm Max | - | 4.28MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 1.358" W (36.00mm x 34.50mm) | 1.378" (35.00mm) |
|
760800101FIXED IND 255UH 11.2A 0.036OHM Würth Elektronik |
17 |
|
Tabla de datos |
WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 255 µH | ±20% | 11.2 A | 10.5A | Unshielded | 36mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 2.362" Dia (60.00mm) | 1.339" (34.00mm) |
|
|
760801401FIXED IND 118UH 13.9A 0.022OHM Würth Elektronik |
29 |
|
Tabla de datos |
WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 118 µH | ±20% | 13.9 A | 23A | Unshielded | 22mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 2.087" Dia (53.00mm) | 1.102" (28.00mm) |
|

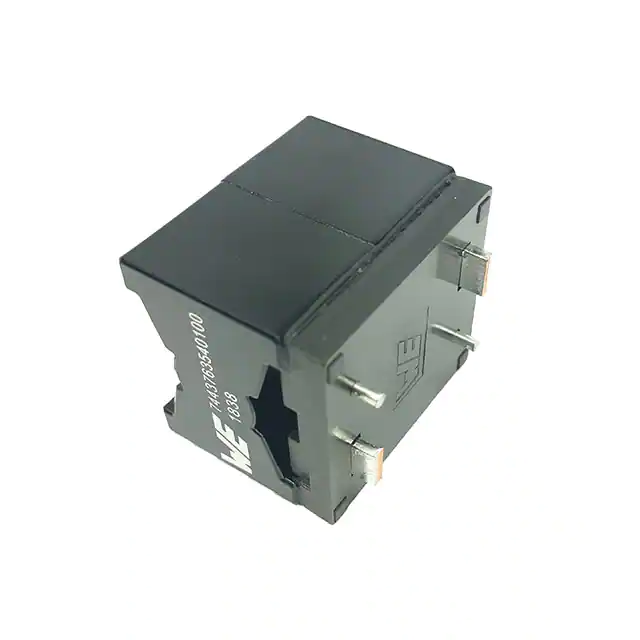

7443763540100FIXED IND 10UH 56.7A 1.2 MOHM TH Würth Elektronik |
88 |
|
Tabla de datos |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±20% | 56.7 A | 62A | Shielded | 1.2mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
|
7443763540330FIXED IND 33UH 32A 6.38 MOHM TH Würth Elektronik |
7 |
|
Tabla de datos |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 33 µH | ±20% | 32 A | 38.9A | Shielded | 6.38mOhm Max | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
|

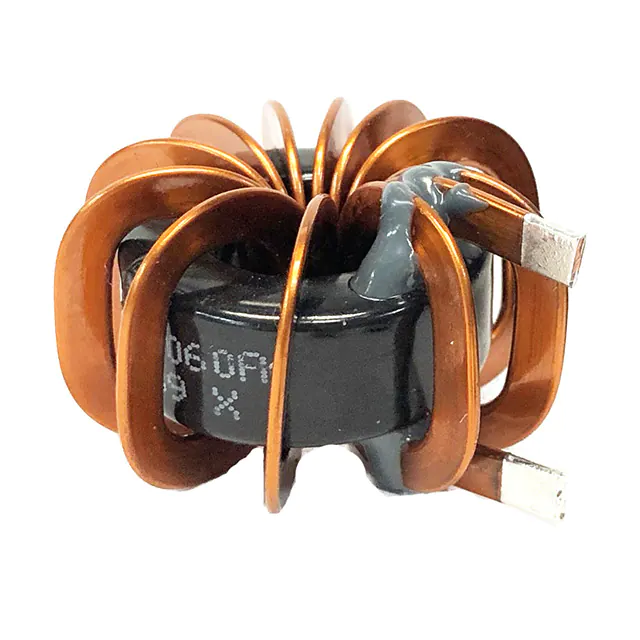

750343811FIXED IND 9.5UH 15A 6 MOHM TH Würth Elektronik |
55 |
|
Tabla de datos |
MID-FLT | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 9.5 µH | ±10% | 15 A | 15A | Unshielded | 6mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.654" Dia x 1.060" W (42.00mm x 27.00mm) | 1.654" (42.00mm) |
