Inductores fijos
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo | Material - Núcleo | Inductancia | Tolerancia | Clasificación de corriente (amperios) | Corriente - Saturación (Isat) | Blindaje | Resistencia de CC (DCR) | Q a frecuencia | Frecuencia: autorresonante | Clasificaciones | Temperatura de funcionamiento | Frecuencia de inductancia - Prueba | Características | Tipo de montaje | Proveedor Dispositivo Paquete | Tamaño/Dimensión | Altura - Asentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN3010C-220MFIXED IND 22UH 700MA 936MOHM SMD |
2,910 |
|
Tabla de datos |
SRN3010C | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 700 mA | 500mA | Shielded | 912mOhm Max | 10 @ 100kHz | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010C-1R0MFIXED IND 1UH 2.3A 63 MOHM SMD |
2,893 |
|
Tabla de datos |
SRN3010C | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.4 A | 2.4A | Shielded | 67mOhm Max | 10 @ 100kHz | 145MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010C-8R2MFIXED IND 8.2UH 1.3A 330MOHM SMD |
2,890 |
|
Tabla de datos |
SRN3010C | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 1 A | 1.3A | Shielded | 396mOhm Max | 10 @ 100kHz | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
LQH32NH561J23LFIXED IND 560UH 40MA 17.52OHM SM |
2,792 |
|
Tabla de datos |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±5% | 40 mA | - | Unshielded | 17.52Ohm Max | 50 @ 1MHz | 4MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
SRN3010BTA-1R0MFIXED IND 1UH 3.4A 0.067OHM SMD |
2,729 |
|
Tabla de datos |
SRN3010BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.4 A | 2.4A | Shielded | 67mOhm Max | 10 @ 1MHz | 145MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010C-2R2MFIXED IND 2.2UH 1.9A 96 MOHM SMD |
2,459 |
|
Tabla de datos |
SRN3010C | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.6 A | 1.8A | Shielded | 120mOhm Max | 10 @ 100kHz | 101MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010C-330MFIXED IND 33UH 500MA 1.32OHM SMD |
2,419 |
|
Tabla de datos |
SRN3010C | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 600 mA | 450mA | Shielded | 1.524Ohm Max | 10 @ 100kHz | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010C-4R7MFIXED IND 4.7UH 1.7A 210MOHM SMD |
2,269 |
|
Tabla de datos |
SRN3010C | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.8 A | 1.3A | Shielded | 228mOhm Max | 10 @ 100kHz | 72MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010C-470MFIXED IND 47UH 350MA 1.92OHM SMD |
2,221 |
|
Tabla de datos |
SRN3010C | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 450 mA | 360mA | Shielded | 2.28Ohm Max | 10 @ 100kHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
LQH32NH180J23LFIXED IND 18UH 235MA 768MOHM SMD |
2,000 |
|
Tabla de datos |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±5% | 235 mA | - | Unshielded | 768mOhm Max | 35 @ 1MHz | 25MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NH220J23LFIXED IND 22UH 220MA 888MOHM SMD |
2,000 |
|
Tabla de datos |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 220 mA | - | Unshielded | 888mOhm Max | 35 @ 1MHz | 20MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NH2R2J23LFIXED IND 2.2UH 610MA 116.4 MOHM |
2,000 |
|
Tabla de datos |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 610 mA | - | Unshielded | 116.4mOhm Max | 20 @ 1MHz | 75MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NH2R7J23LFIXED IND 2.7UH 495MA 180MOHM SM |
2,000 |
|
Tabla de datos |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±5% | 495 mA | - | Unshielded | 180mOhm Max | 20 @ 1MHz | 70MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
BWVS005050201R5M00INDUCTOR POWER |
2,000 |
|
Tabla de datos |
BWVS | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±20% | 3.15 A | 3.78A | Shielded | 26mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|

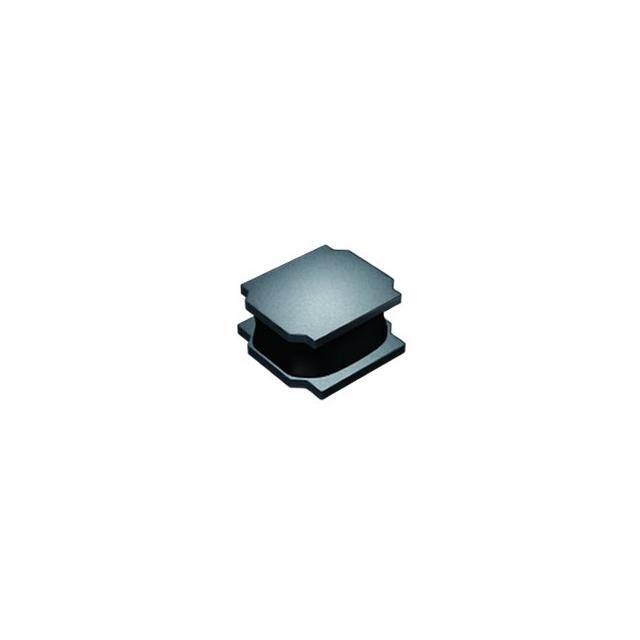

LSXNH8080XKL150MJGFIXED IND 15UH 2.2A 78 MOHM SMD |
2,000 |
|
- |
LSXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 2.2 A | 2A | Shielded | 78mOhm Max | - | 20MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
LQH32NH8R2J23LFIXED IND 8.2UH 300MA 480MOHM SM |
1,999 |
|
Tabla de datos |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 300 mA | - | Unshielded | 480mOhm Max | 20 @ 1MHz | 40MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NH331J23LFIXED IND 330UH 50MA 13.2OHM SMD |
1,995 |
|
Tabla de datos |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±5% | 50 mA | - | Unshielded | 13.2Ohm Max | 50 @ 1MHz | 5MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NH3R9J23LFIXED IND 3.9UH 510MA 168MOHM SM |
1,990 |
|
Tabla de datos |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±5% | 510 mA | - | Unshielded | 168mOhm Max | 20 @ 1MHz | 60MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NH471J23LFIXED IND 470UH 40MA 16.92OHM SM |
1,980 |
|
Tabla de datos |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 40 mA | - | Unshielded | 16.92Ohm Max | 50 @ 1MHz | 5MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NH221J23LFIXED IND 220UH 60MA 10.14OHM SM |
1,950 |
|
Tabla de datos |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 60 mA | - | Unshielded | 10.14Ohm Max | 40 @ 1MHz | 5.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
