FET, MOSFET
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo FET | Tecnología | Voltaje de drenaje a fuente (Vdss) | Corriente: drenaje continuo (Id) a 25 °C | Voltaje de excitación (máx. Rds activado, mín. Rds activado) | Rds activado (máx.) a Id, Vgs | Vgs(th) (máx.) a Id | Carga de compuerta (Qg) (máx.) a Vgs | Vgs (máx.) | Capacitancia de entrada (Ciss) (máx.) a Vds | Característica FET | Disipación de potencia (máx.) | Temperatura de funcionamiento | Grado | Calificación | Tipo de montaje | Proveedor Dispositivo Paquete |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMP4016SSS-13MOSFET BVDSS: 31V~40V SO-8 T&R 2 |
3,068 |
|
Tabla de datos |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 10.8A (Ta) | 4.5V, 10V | 11mOhm @ 9.8A, 10V | 2.5V @ 250µA | 112 nC @ 10 V | ±20V | 5697 pF @ 20 V | - | 1.6W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
DMPH4009SSS-13MOSFET BVDSS: 31V~40V SO-8 T&R 2 |
3,493 |
|
Tabla de datos |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 11A (Ta) | 4.5V, 10V | 11mOhm @ 9.8A, 10V | 2.5V @ 250µA | 112 nC @ 10 V | ±20V | 5697 pF @ 20 V | - | 1.8W | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
DMP4009SSS-13MOSFET BVDSS: 31V~40V SO-8 T&R 2 |
3,261 |
|
Tabla de datos |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 10A (Ta) | 4.5V, 10V | 11mOhm @ 9.8A, 10V | 2.5V @ 250µA | 112 nC @ 10 V | ±20V | 5697 pF @ 20 V | - | 1.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
PMF400UN,115MOSFET N-CH 30V 830MA SOT323-3 |
3,827 |
|
Tabla de datos |
TrenchMOS™ | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 830mA (Ta) | 1.8V, 4.5V | 480mOhm @ 200mA, 4.5V | 1V @ 250µA | 0.89 nC @ 4.5 V | ±8V | 43 pF @ 25 V | - | 560mW (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70 |
|
BSH114,215MOSFET N-CH 100V 500MA TO236AB |
4,353 |
|
Tabla de datos |
TrenchMOS™ | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 500mA (Ta) | 10V | 500mOhm @ 500mA, 10V | 4V @ 1mA | 4.6 nC @ 10 V | ±20V | 138 pF @ 25 V | - | 360mW (Ta), 830mW (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-236AB |
|
BSD214SN L6327MOSFET N-CH 20V 1.5A SOT363-6 |
2,281 |
|
Tabla de datos |
OptiMOS™ | 6-VSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 1.5A (Ta) | 2.5V, 4.5V | 140mOhm @ 1.5A, 4.5V | 1.2V @ 3.7µA | 0.8 nC @ 5 V | ±12V | 143 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT363-PO |
|
IPD78CN10NGBUMA1MOSFET N-CH 100V 13A TO252-3 |
2,347 |
|
Tabla de datos |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 13A (Tc) | 10V | 78mOhm @ 13A, 10V | 4V @ 12µA | 11 nC @ 10 V | ±20V | 716 pF @ 50 V | - | 31W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
DMG4406LSS-13MOSFET N CH 30V 10.3A 8-SO |
2,895 |
|
Tabla de datos |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 10.3A (Ta) | 4.5V, 10V | 11mOhm @ 12A, 10V | 2V @ 250µA | 26.7 nC @ 10 V | ±20V | 1281 pF @ 15 V | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
AON7436MOSFET N-CH 20V 9A/23A 8DFN |
2,431 |
|
Tabla de datos |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 9A (Ta), 23A (Tc) | 1.8V, 10V | 19mOhm @ 9A, 10V | 1.1V @ 250µA | 15 nC @ 10 V | ±12V | 630 pF @ 10 V | - | 3.1W (Ta), 16.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN-EP (3x3) |
|
SI1011X-T1-GE3MOSFET P-CH 12V SC89-3 |
4,473 |
|
Tabla de datos |
TrenchFET® | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 480mA (Ta) | 1.2V, 4.5V | 640mOhm @ 400mA, 4.5V | 800mV @ 250µA | 4 nC @ 4.5 V | ±5V | 62 pF @ 6 V | - | 190mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-89-3 |
|
|
PMF250XN,115MOSFET N-CH 30V 900MA SOT323-3 |
4,069 |
|
- |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 900mA (Ta) | 2.5V, 4.5V | 300mOhm @ 900mA, 4.5V | 1.5V @ 250µA | 1.1 nC @ 4.5 V | ±12V | 50 pF @ 15 V | - | 275mW (Ta), 1.065W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70 |
|
SSM3K301T(TE85L,F)MOSFET N-CH 20V 3.5A TSM |
4,926 |
|
Tabla de datos |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 3.5A (Ta) | 1.8V, 4V | 56mOhm @ 2A, 4V | - | 4.8 nC @ 4 V | ±12V | 320 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSM |
|
|
SSM3K302T(TE85L,F)MOSFET N-CH 30V 3A TSM |
4,422 |
|
Tabla de datos |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 3A (Ta) | 1.8V, 4V | 71mOhm @ 2A, 4V | - | 4.3 nC @ 4 V | ±12V | 270 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSM |
|
|
SSM3K309T(TE85L,F)MOSFET N-CH 20V 4.7A TSM |
2,330 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 4.7A (Ta) | 1.8V, 4V | 31mOhm @ 4A, 4V | - | - | ±12V | 1020 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSM |
|
|
SSM3K310T(TE85L,F)MOSFET N-CH 20V 5A TSM |
2,385 |
|
Tabla de datos |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 5A (Ta) | 1.5V, 4V | 28mOhm @ 4A, 4V | - | 14.8 nC @ 4 V | ±10V | 1120 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSM |
|
SI1489EDH-T1-GE3MOSFET P-CH 8V 2A SOT-363 |
2,939 |
|
Tabla de datos |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 8 V | 2A (Tc) | 1.2V, 4.5V | 48mOhm @ 3A, 4.5V | 700mV @ 250µA | 16 nC @ 4.5 V | ±5V | - | - | 2.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
.jpg)
|
RW1E025RPT2CRMOSFET P-CH 30V 2.5A 6WEMT |
2,538 |
|
Tabla de datos |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.5A (Ta) | 4V, 10V | 75mOhm @ 2.5A, 10V | 2.5V @ 1mA | 5.2 nC @ 5 V | ±20V | 480 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | 6-WEMT |
|

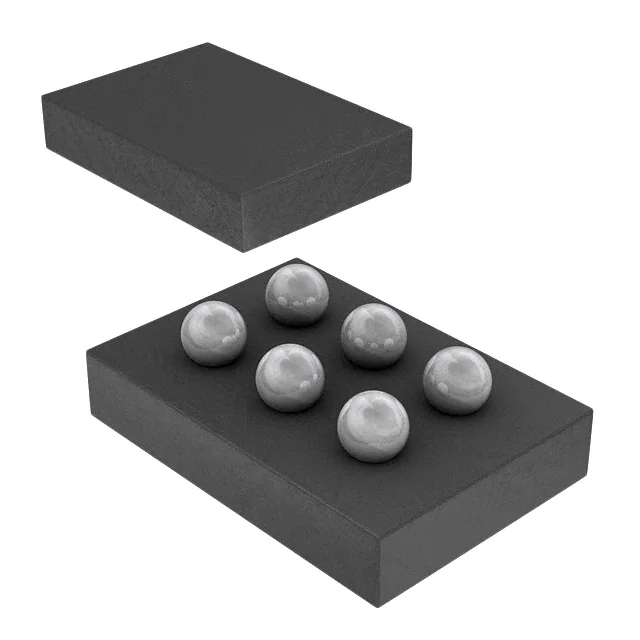

PMCM650VNEZMOSFET N-CH 12V 6.4A 6WLCSP |
4,875 |
|
Tabla de datos |
- | 6-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12 V | 6.4A (Ta) | 4.5V | 25mOhm @ 3A, 4.5V | 900mV @ 250µA | 15.4 nC @ 4.5 V | ±8V | 1060 pF @ 6 V | - | 556mW (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-WLCSP (1.48x0.98) |
|
TSM2311CX RFGMOSFET P-CHANNEL 20V 4A SOT23 |
2,759 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 2.5V, 4.5V | 55mOhm @ 4A, 4.5V | 1.4V @ 250µA | 6 nC @ 4.5 V | ±8V | 640 pF @ 6 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
TSM3404CX RFGMOSFET N-CHANNEL 30V 5.8A SOT23 |
3,170 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 5.8A (Ta) | 4.5V, 10V | 30mOhm @ 5.8A, 10V | 3V @ 250µA | 13.8 nC @ 10 V | ±20V | 400.96 pF @ 15 V | - | 750mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
