FET, MOSFET
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo FET | Tecnología | Voltaje de drenaje a fuente (Vdss) | Corriente: drenaje continuo (Id) a 25 °C | Voltaje de excitación (máx. Rds activado, mín. Rds activado) | Rds activado (máx.) a Id, Vgs | Vgs(th) (máx.) a Id | Carga de compuerta (Qg) (máx.) a Vgs | Vgs (máx.) | Capacitancia de entrada (Ciss) (máx.) a Vds | Característica FET | Disipación de potencia (máx.) | Temperatura de funcionamiento | Grado | Calificación | Tipo de montaje | Proveedor Dispositivo Paquete |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCP150N65FMOSFET N-CH 650V 24A TO220-3 |
3,275 |
|
Tabla de datos |
HiPerFET™, Polar™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 150mOhm @ 12A, 10V | 5V @ 2.4mA | 93 nC @ 10 V | ±20V | 3737 pF @ 100 V | - | 298W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
STFW12N120K5MOSFET N-CH 1200V 12A ISOWATT |
4,140 |
|
Tabla de datos |
MDmesh™ K5 | TO-3P-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 12A (Tc) | 10V | 690mOhm @ 6A, 10V | 5V @ 100µA | 44.2 nC @ 10 V | ±30V | 1370 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3PF |
|
IXFA14N60PMOSFET N-CH 600V 14A TO263 |
2,875 |
|
Tabla de datos |
HiPerFET™, Polar | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 14A (Tc) | 10V | 550mOhm @ 7A, 10V | 5.5V @ 2.5mA | 36 nC @ 10 V | ±30V | 2500 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA (IXFA) |
|
STP23NM50NMOSFET N-CH 500V 17A TO220-3 |
2,956 |
|
Tabla de datos |
MDmesh™ II | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 17A (Tc) | 10V | 190mOhm @ 8.5A, 10V | 4V @ 250µA | 45 nC @ 10 V | ±25V | 1330 pF @ 50 V | - | 125W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220 |
|
IXFH52N50P2MOSFET N-CH 500V 52A TO247AD |
4,154 |
|
Tabla de datos |
HiPerFET™, PolarP2™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 52A (Tc) | 10V | 120mOhm @ 26A, 10V | 4.5V @ 4mA | 113 nC @ 10 V | ±30V | 6800 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
IXFT60N50P3MOSFET N-CH 500V 60A TO268 |
6 |
|
Tabla de datos |
HiPerFET™, Polar3™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 60A (Tc) | 10V | 100mOhm @ 30A, 10V | 5V @ 4mA | 96 nC @ 10 V | ±30V | 6250 pF @ 25 V | - | 1040W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
|
SIHG17N80E-GE3MOSFET N-CH 800V 15A TO247AC |
3,902 |
|
Tabla de datos |
E | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 15A (Tc) | 10V | 290mOhm @ 8.5A, 10V | 4V @ 250µA | 122 nC @ 10 V | ±30V | 2408 pF @ 100 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
~~3-Top.jpg)
|

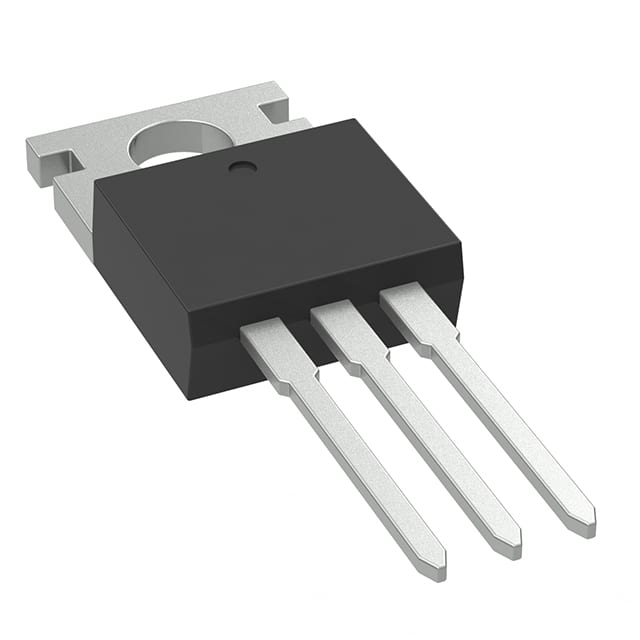

MSJP20N65-BPMOSFET N-CH TO220AB |
2,046 |
|
Tabla de datos |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 170mOhm @ 10A, 10V | 4.5V @ 250µA | 39 nC @ 10 V | ±30V | 1724 pF @ 100 V | - | 151W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB (H) |
.jpg)
|
STW70N60DM6MOSFET N-CH 600V 62A TO247 |
2,526 |
|
Tabla de datos |
MDmesh™ DM6 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 62A (Tc) | - | - | - | - | ±25V | - | - | - | - | - | - | Through Hole | TO-247-3 |
|
STB35N60DM2MOSFET N-CH 600V 28A D2PAK |
4,492 |
|
Tabla de datos |
MDmesh™ DM2 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 28A (Tc) | 10V | 110mOhm @ 14A, 10V | 5V @ 250µA | 54 nC @ 10 V | ±25V | 2400 pF @ 100 V | - | 210W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
IPWS65R035CFD7AXKSA1MOSFET N-CH 650V 63A TO247-3-41 |
3,883 |
|
Tabla de datos |
CoolMOS™ CFD7A | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 63A (Tc) | 10V | 35mOhm @ 35.8A, 10V | 4.5V @ 1.79mA | 145 nC @ 10 V | ±20V | 7149 pF @ 400 V | - | 305W (Tc) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO247-3-41 |
|
SIHB065N60E-GE3MOSFET N-CH 600V 40A D2PAK |
3,936 |
|
Tabla de datos |
E | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 40A (Tc) | 10V | 65mOhm @ 16A, 10V | 5V @ 250µA | 74 nC @ 10 V | ±30V | 2700 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
STP38N65M5MOSFET N-CH 650V 30A TO220 |
3,031 |
|
Tabla de datos |
MDmesh™ V | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Tc) | 10V | 95mOhm @ 15A, 10V | 5V @ 250µA | 71 nC @ 10 V | ±25V | 3000 pF @ 100 V | - | 190W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
STP40N65M2MOSFET N-CH 650V 32A TO220 |
4,347 |
|
Tabla de datos |
MDmesh™ M2 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 32A (Tc) | 10V | 99mOhm @ 16A, 10V | 4V @ 250µA | 56.5 nC @ 10 V | ±25V | 2355 pF @ 100 V | - | 250W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220 |
|
IXFP14N85XMMOSFET N-CHANNEL 850V 14A TO220 |
23 |
|
Tabla de datos |
HiPerFET™, Polar | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 850 V | 14A (Tc) | 10V | 550mOhm @ 7A, 10V | 5.5V @ 1mA | 30 nC @ 10 V | ±30V | 1043 pF @ 25 V | - | 38W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
STW33N60M6MOSFET N-CH 600V TO247 |
4,643 |
|
Tabla de datos |
MDmesh™ M6 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tj) | - | - | - | - | - | - | - | - | - | - | - | Through Hole | TO-247-3 |
|
STW58N65DM2AGMOSFET N-CH 650V 48A TO247 |
2,173 |
|
Tabla de datos |
MDmesh™ DM2 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 48A (Tc) | 10V | 65mOhm @ 24A, 10V | 5V @ 250µA | 88 nC @ 10 V | ±25V | 4100 pF @ 100 V | - | 360W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|
NTMTS6D0N15MCSINGLE N-CHANNEL POWER MOSFET 15 |
3,937 |
|
Tabla de datos |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 19A (Ta), 135A (Tc) | 8V, 10V | 6.4mOhm @ 69A, 10V | 4.5V @ 379µA | 58 nC @ 10 V | ±20V | 4815 pF @ 75 V | - | 4.9W (Ta), 245W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-DFNW (8.3x8.4) |
|
|
STP45N60DM2AGMOSFET N-CH 600V 34A TO220 |
2,164 |
|
Tabla de datos |
MDmesh™ DM2 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 34A (Tc) | 10V | 93mOhm @ 17A, 10V | 5V @ 250µA | 56 nC @ 10 V | ±25V | 2500 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220 |
|
|
IXTP2R4N120PMOSFET N-CH 1200V 2.4A TO220AB |
4 |
|
Tabla de datos |
Polar | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 2.4A (Tc) | 10V | 7.5Ohm @ 500mA, 10V | 4.5V @ 250µA | 37 nC @ 10 V | ±20V | 1207 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
