FET, MOSFET
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo FET | Tecnología | Voltaje de drenaje a fuente (Vdss) | Corriente: drenaje continuo (Id) a 25 °C | Voltaje de excitación (máx. Rds activado, mín. Rds activado) | Rds activado (máx.) a Id, Vgs | Vgs(th) (máx.) a Id | Carga de compuerta (Qg) (máx.) a Vgs | Vgs (máx.) | Capacitancia de entrada (Ciss) (máx.) a Vds | Característica FET | Disipación de potencia (máx.) | Temperatura de funcionamiento | Grado | Calificación | Tipo de montaje | Proveedor Dispositivo Paquete |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFU3607-701PBFMOSFET N-CH 75V 56A IPAK |
3,633 |
|
Tabla de datos |
HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 56A (Tc) | 10V | 9mOhm @ 46A, 10V | 4V @ 100µA | 84 nC @ 10 V | ±20V | 3070 pF @ 50 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK (TO-251AA) |
|
IRFP4332-203PBFMOSFET N-CH 250V 57A TO247AC |
2,043 |
|
Tabla de datos |
HEXFET® | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 57A (Tc) | 10V | 33mOhm @ 35A, 10V | 5V @ 250µA | 150 nC @ 10 V | ±30V | 5860 pF @ 25 V | - | 360W (Tc) | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AC |
;;3.jpg)
|
IRFU3607TRL701PMOSFET N CH 75V 56A IPAK |
3,317 |
|
Tabla de datos |
HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 56A (Tc) | 10V | 9mOhm @ 46A, 10V | 4V @ 100µA | 84 nC @ 10 V | ±20V | 3070 pF @ 50 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK (TO-251AA) |
|
AUIRFR540ZMOSFET N-CH 100V 35A DPAK |
2,456 |
|
Tabla de datos |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 35A (Tc) | 10V | 28.5mOhm @ 21A, 10V | 4V @ 50µA | 59 nC @ 10 V | ±20V | 1690 pF @ 25 V | - | 91W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|
AUIRFS6535MOSFET N-CH 300V 19A D2PAK |
3,330 |
|
Tabla de datos |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300 V | 19A (Tc) | 10V | 185mOhm @ 11A, 10V | 5V @ 150µA | 57 nC @ 10 V | ±20V | 2340 pF @ 25 V | - | 210W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
|
AUIRFU3607MOSFET N CH 75V 56A I-PAK |
4,279 |
|
Tabla de datos |
HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 56A (Tc) | 10V | 9mOhm @ 46A, 10V | 4V @ 100µA | 84 nC @ 10 V | ±20V | 3070 pF @ 50 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK |
|
TK16J60W,S1VQMOSFET N-CH 600V 15.8A TO3P |
3,407 |
|
Tabla de datos |
DTMOSIV | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 15.8A (Ta) | 10V | 190mOhm @ 7.9A, 10V | 3.7V @ 790µA | 38 nC @ 10 V | ±30V | 1350 pF @ 300 V | - | 130W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P(N) |
|
FCPF36N60NTMOSFET N-CH 600V 36A TO220F |
2,196 |
|
- |
SupreMOS™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 36A (Tc) | 10V | 90mOhm @ 18A, 10V | 4V @ 250µA | 112 nC @ 10 V | ±30V | 4785 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
MCP87130T-U/LCMOSFET N-CH 25V 43A 8PDFN |
4,763 |
|
Tabla de datos |
- | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 43A (Tc) | 3.3V, 10V | 13.5mOhm @ 10A, 10V | 1.7V @ 250µA | 8 nC @ 4.5 V | +10V, -8V | 400 pF @ 12.5 V | - | 1.7W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PDFN (3.3x3.3) |
|
MCP87130T-U/MFMOSFET N-CH 25V 43A 8PDFN |
3,223 |
|
Tabla de datos |
- | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 43A (Tc) | 3.3V, 10V | 13.5mOhm @ 10A, 10V | 1.7V @ 250µA | 8 nC @ 4.5 V | +10V, -8V | 400 pF @ 12.5 V | - | 2.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PDFN (5x6) |
|

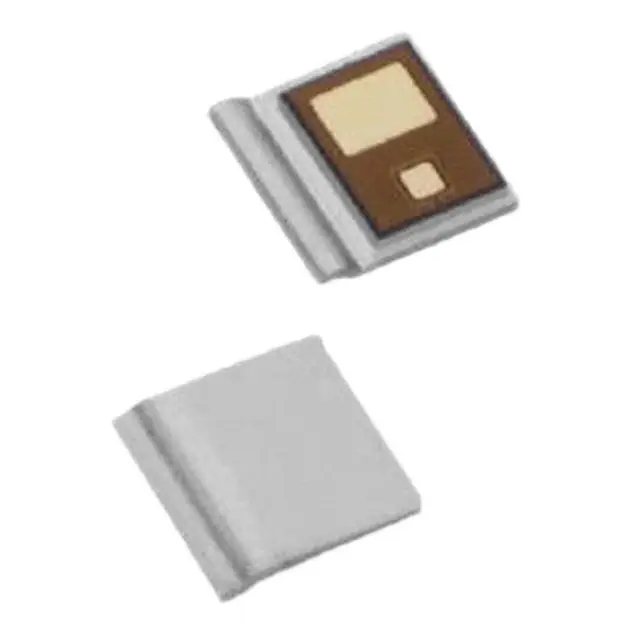

FJ3P02100LMOSFET P-CH 20V 4.4A 3PMCP |
2,828 |
|
- |
- | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.4A (Ta) | 2V, 4.5V | 12.5mOhm @ 3.7A, 4.5V | 1.05V @ 1mA | - | ±8V | 3000 pF @ 10 V | - | - | 150°C (TJ) | - | - | Surface Mount | 3-PMCP |
|
DMG9N65CTIMOSFET N-CH 650V 9A ITO220AB |
2,473 |
|
Tabla de datos |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 9A (Tc) | 10V | 1.3Ohm @ 4.5A, 10V | 5V @ 250µA | 39 nC @ 10 V | ±30V | 2310 pF @ 25 V | - | 13W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220AB |
|
DMG4N65CTMOSFET N CH 650V 4A TO220-3 |
4,881 |
|
Tabla de datos |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 4A (Tc) | 10V | 3Ohm @ 2A, 10V | 5V @ 250µA | 13.5 nC @ 10 V | ±30V | 900 pF @ 25 V | - | 2.19W (Ta) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
PSMN8R5-100ESQMOSFET N-CH 100V 100A I2PAK |
2,983 |
|
Tabla de datos |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 100A (Tj) | 10V | 8.5mOhm @ 25A, 10V | 4V @ 1mA | 111 nC @ 10 V | ±20V | 5512 pF @ 50 V | - | 263W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | I2PAK |
|
PSMN8R5-100XSQMOSFET N-CH 100V 49A TO220F |
4,275 |
|
Tabla de datos |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 49A (Tj) | 10V | 8.5mOhm @ 10A, 10V | 4V @ 1mA | 100 nC @ 10 V | ±20V | 5512 pF @ 50 V | - | 55W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220F |
|
STB70NF03L-1MOSFET N-CH 30V 70A I2PAK |
4,426 |
|
Tabla de datos |
STripFET™ II | TO-262-3 Long Leads, I2PAK, TO-262AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 70A (Tc) | 5V, 10V | 9.5mOhm @ 35A, 10V | 1V @ 250µA | 30 nC @ 5 V | ±18V | 1440 pF @ 25 V | - | 100W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 (I2PAK) |
|
AOB270ALMOSFET N-CH 75V 21.5A/140A TO263 |
4,301 |
|
Tabla de datos |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 21.5A (Ta), 140A (Tc) | 6V, 10V | 2.4mOhm @ 20A, 10V | 3.3V @ 250µA | 206 nC @ 10 V | ±20V | 10830 pF @ 37.5 V | - | 2.1W (Ta), 500W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
AOB284LMOSFET N-CH 80V 16A/105A TO263 |
3,228 |
|
Tabla de datos |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 16A (Ta), 105A (Tc) | 6V, 10V | 4.3mOhm @ 20A, 10V | 3.3V @ 250µA | 100 nC @ 10 V | ±20V | 5154 pF @ 40 V | - | 2.1W (Ta), 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
AOB2910LMOSFET N CH 100V 6A TO263 |
4,238 |
|
Tabla de datos |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 6A (Ta), 30A (Tc) | 4.5V, 10V | 23.5mOhm @ 20A, 10V | 2.7V @ 250µA | 25 nC @ 10 V | ±20V | 1190 pF @ 50 V | - | 2.1W (Ta), 50W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
AOB296LMOSFET N CH 100V 9.5A TO263 |
3,507 |
|
Tabla de datos |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 9.5A (Ta), 70A (Tc) | 6V, 10V | 9.7mOhm @ 20A, 10V | 3.4V @ 250µA | 52 nC @ 10 V | ±20V | 2785 pF @ 50 V | - | 2.1W (Ta), 107W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
