FET, MOSFET
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo FET | Tecnología | Voltaje de drenaje a fuente (Vdss) | Corriente: drenaje continuo (Id) a 25 °C | Voltaje de excitación (máx. Rds activado, mín. Rds activado) | Rds activado (máx.) a Id, Vgs | Vgs(th) (máx.) a Id | Carga de compuerta (Qg) (máx.) a Vgs | Vgs (máx.) | Capacitancia de entrada (Ciss) (máx.) a Vds | Característica FET | Disipación de potencia (máx.) | Temperatura de funcionamiento | Grado | Calificación | Tipo de montaje | Proveedor Dispositivo Paquete |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT10078BLLGMOSFET N-CH 1000V 14A TO247 Microchip Technology |
30 |
|
Tabla de datos |
POWER MOS 7® | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 14A (Tc) | 10V | 780mOhm @ 7A, 10V | 5V @ 1mA | 95 nC @ 10 V | ±30V | 2525 pF @ 25 V | - | 403W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
APT28M120B2MOSFET N-CH 1200V 29A T-MAX Microchip Technology |
56 |
|
Tabla de datos |
POWER MOS 8™ | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 29A (Tc) | 10V | 560mOhm @ 14A, 10V | 5V @ 2.5mA | 300 nC @ 10 V | ±30V | 9670 pF @ 25 V | - | 1135W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | T-MAX™ [B2] |
|
APT10050LVRGMOSFET N-CH 1000V 21A TO264 Microchip Technology |
25 |
|
Tabla de datos |
POWER MOS V® | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 21A (Tc) | - | 500mOhm @ 500mA, 10V | 4V @ 2.5mA | 500 nC @ 10 V | - | 7900 pF @ 25 V | - | - | - | - | - | Through Hole | TO-264 [L] |
|
MSC040SMA120BSICFET N-CH 1200V 66A TO247-3 Microchip Technology |
35 |
|
Tabla de datos |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 66A (Tc) | 20V | 50mOhm @ 40A, 20V | 2.7V @ 2mA | 137 nC @ 20 V | +23V, -10V | 1990 pF @ 1000 V | - | 323W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|

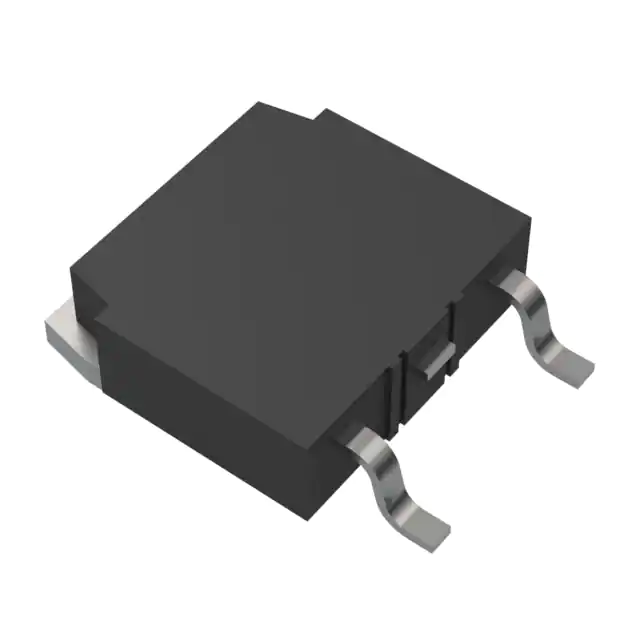

MSC040SMA120SSICFET N-CH 1200V 64A TO268 Microchip Technology |
12 |
|
Tabla de datos |
- | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 64A (Tc) | 20V | 50mOhm @ 40A, 20V | 2.6V @ 2mA | 137 nC @ 20 V | +23V, -10V | 1990 pF @ 1000 V | - | 303W | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D3PAK |
|
APT5010JVRMOSFET N-CH 500V 44A ISOTOP Microchip Technology |
12 |
|
Tabla de datos |
POWER MOS V® | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 44A (Tc) | - | 100mOhm @ 500mA, 10V | 4V @ 2.5mA | 470 nC @ 10 V | - | 8900 pF @ 25 V | - | - | - | - | - | Chassis Mount | ISOTOP® |
|
|
APT5010JVFRMOSFET N-CH 500V 44A ISOTOP Microchip Technology |
20 |
|
Tabla de datos |
POWER MOS V® | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 44A (Tc) | - | 100mOhm @ 500mA, 10V | 4V @ 2.5mA | 470 nC @ 10 V | - | 8900 pF @ 25 V | - | - | - | - | - | Chassis Mount | ISOTOP® |
|
MSC035SMA170SMOSFET SIC 1700V 35 MOHM TO-268 Microchip Technology |
23 |
|
Tabla de datos |
- | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Bulk | Active | N-Channel | SiCFET (Silicon Carbide) | 1700 V | 59A (Tc) | 20V | 45mOhm @ 30A, 20V | 3.25V @ 2.5mA (Typ) | 178 nC @ 20 V | +23V, -10V | 3300 pF @ 1000 V | - | 278W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D3PAK |
|
APT50M65JLLMOSFET N-CH 500V 58A ISOTOP Microchip Technology |
20 |
|
Tabla de datos |
POWER MOS 7® | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 58A (Tc) | 10V | 65mOhm @ 29A, 10V | 5V @ 2.5mA | 141 nC @ 10 V | ±30V | 7010 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | ISOTOP® |
|

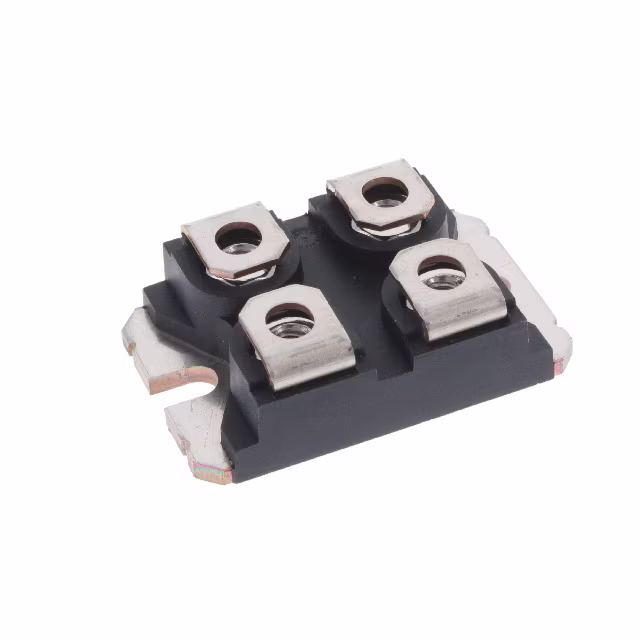

MSC40SM120JCU3SICFET N-CH 1.2KV 55A SOT227 Microchip Technology |
66 |
|
Tabla de datos |
- | SOT-227-4, miniBLOC | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 55A (Tc) | 20V | 50mOhm @ 40A, 20V | 2.7V @ 1mA | 137 nC @ 20 V | +25V, -10V | 1990 pF @ 1000 V | - | 245W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227 (ISOTOP®) |
