FET, MOSFET
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo FET | Tecnología | Voltaje de drenaje a fuente (Vdss) | Corriente: drenaje continuo (Id) a 25 °C | Voltaje de excitación (máx. Rds activado, mín. Rds activado) | Rds activado (máx.) a Id, Vgs | Vgs(th) (máx.) a Id | Carga de compuerta (Qg) (máx.) a Vgs | Vgs (máx.) | Capacitancia de entrada (Ciss) (máx.) a Vds | Característica FET | Disipación de potencia (máx.) | Temperatura de funcionamiento | Grado | Calificación | Tipo de montaje | Proveedor Dispositivo Paquete |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDPF7N50UMOSFET N-CH 500V 5A TO220F |
4,570 |
|
Tabla de datos |
UniFET™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 5A (Tc) | 10V | 1.5Ohm @ 2.5A, 10V | 5V @ 250µA | 16.6 nC @ 10 V | ±30V | 940 pF @ 25 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
FDZ193PMOSFET P-CH 20V 3A 6WLCSP |
2,675 |
|
Tabla de datos |
PowerTrench® | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 3A (Ta) | 1.7V, 4.5V | 90mOhm @ 1A, 4.5V | 1.5V @ 250µA | 10 nC @ 10 V | ±12V | 660 pF @ 10 V | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-WLCSP (1x1.5) |
|
IXFV52N30PMOSFET N-CH 300V 52A PLUS220 |
3,667 |
|
Tabla de datos |
PolarHT™ HiPerFET™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300 V | 52A (Tc) | 10V | 66mOhm @ 500mA, 10V | 5V @ 4mA | 110 nC @ 10 V | ±20V | 3490 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
FDPF12N35MOSFET N-CH 350V 12A TO220F |
2,307 |
|
Tabla de datos |
UniFET™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 350 V | 12A (Tc) | 10V | 380mOhm @ 6A, 10V | 5V @ 250µA | 25 nC @ 10 V | ±30V | 1110 pF @ 25 V | - | 31.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|

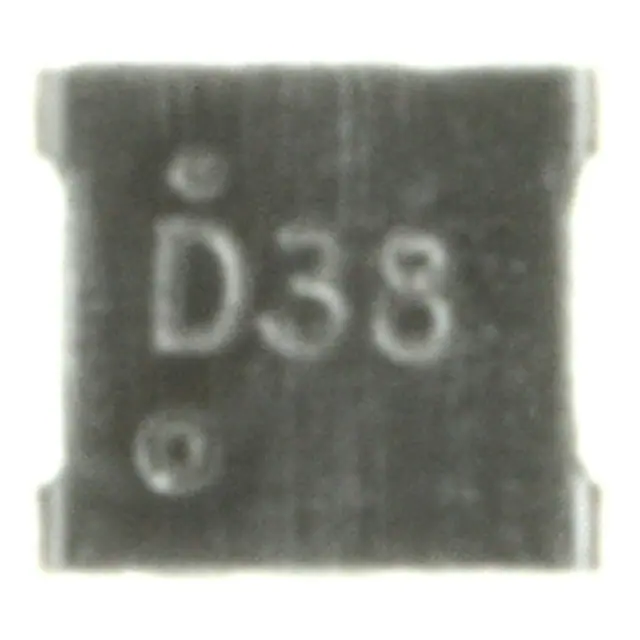

FDZ291PMOSFET P-CH 20V 4.6A 9BGA |
4,539 |
|
Tabla de datos |
PowerTrench® | 9-VFBGA | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.6A (Ta) | 1.5V, 4.5V | 40mOhm @ 4.6A, 4.5V | 1V @ 250µA | 13 nC @ 4.5 V | ±8V | 1010 pF @ 10 V | - | 1.7W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 9-BGA (1.5x1.6) |
|
|
FQPF6N80CTMOSFET N-CH 800V 5.5A TO220F |
4,769 |
|
Tabla de datos |
QFET® | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 5.5A (Tc) | 10V | 2.5Ohm @ 2.75A, 10V | 5V @ 250µA | 30 nC @ 10 V | ±30V | 1310 pF @ 25 V | - | 51W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
STW30NF20MOSFET N-CH 200V 30A TO247-3 |
2,227 |
|
Tabla de datos |
STripFET™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 30A (Tc) | 10V | 75mOhm @ 15A, 10V | 4V @ 250µA | 38 nC @ 10 V | ±20V | 1597 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
FDMB668PMOSFET P-CH 20V 6.1A 8MLP |
3,832 |
|
Tabla de datos |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 6.1A (Ta) | 1.8V, 4.5V | 35mOhm @ 6.1A, 4.5V | 1V @ 250µA | 59 nC @ 10 V | ±8V | 2085 pF @ 10 V | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP, MicroFET (3x1.9) |
|
|
FDPF7N50MOSFET N-CH 500V 7A TO220F |
4,476 |
|
Tabla de datos |
UniFET™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 7A (Tc) | 10V | 900mOhm @ 3.5A, 10V | 5V @ 250µA | 16.6 nC @ 10 V | ±30V | 940 pF @ 25 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
|
FQPF10N60CFMOSFET N-CH 600V 9A TO220F |
2,882 |
|
Tabla de datos |
FRFET® | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 9A (Tc) | 10V | 800mOhm @ 4.5A, 10V | 4V @ 250µA | 57 nC @ 10 V | ±30V | 2040 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
SI3443DVMOSFET P-CH 20V 4A SUPERSOT6 |
4,986 |
|
Tabla de datos |
PowerTrench® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 2.5V, 4.5V | 65mOhm @ 4A, 4.5V | 1.5V @ 250µA | 10 nC @ 4.5 V | ±8V | 640 pF @ 10 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SuperSOT™-6 |
|
NTD4813NH-1GMOSFET N-CH 30V 7.6A/40A IPAK |
2,280 |
|
Tabla de datos |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.6A (Ta), 40A (Tc) | 4.5V, 11.5V | 13mOhm @ 30A, 10V | 2.5V @ 250µA | 10 nC @ 4.5 V | ±20V | 940 pF @ 12 V | - | 1.27W (Ta), 35.3W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK |
|
NTD4815NH-35GMOSFET N-CH 30V 6.9A/35A IPAK |
3,446 |
|
Tabla de datos |
- | TO-251-3 Stub Leads, IPAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.9A (Ta), 35A (Tc) | 4.5V, 11.5V | 15mOhm @ 30A, 10V | 2.5V @ 250µA | 6.8 nC @ 4.5 V | ±20V | 845 pF @ 12 V | - | 1.26W (Ta), 32.6W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK |
|
FDA2712MOSFET N-CH 250V 64A TO3PN |
2,389 |
|
Tabla de datos |
UltraFET™ | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 64A (Tc) | 10V | 34mOhm @ 40A, 10V | 5V @ 250µA | 129 nC @ 10 V | ±30V | 10175 pF @ 25 V | - | 357W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3PN |
|
FDP8447LMOSFET N-CH 40V 12A/50A TO220-3 |
2,606 |
|
Tabla de datos |
PowerTrench® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 12A (Ta), 50A (Tc) | 4.5V, 10V | 8.7mOhm @ 14A, 10V | 3V @ 250µA | 49 nC @ 10 V | ±20V | 2500 pF @ 20 V | - | 2W (Ta), 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
FDP8442MOSFET N-CH 40V 23A/80A TO220-3 |
3,867 |
|
Tabla de datos |
PowerTrench® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 23A (Ta), 80A (Tc) | 10V | 3.1mOhm @ 80A, 10V | 4V @ 250µA | 235 nC @ 10 V | ±20V | 12200 pF @ 25 V | - | 254W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
FDM21-05QCMOSFET N-CH 500V 21A I4PAC |
3,513 |
|
Tabla de datos |
- | i4-Pac™-5 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 21A (Tc) | 10V | 220mOhm @ 15A, 10V | 4.5V @ 250µA | 95 nC @ 10 V | ±20V | - | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
|
FMD21-05QCMOSFET N-CH 500V 21A I4PAC |
3,966 |
|
Tabla de datos |
- | i4-Pac™-5 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 21A (Tc) | 10V | 220mOhm @ 15A, 10V | 4.5V @ 250µA | 95 nC @ 10 V | ±20V | - | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
|
FMD40-06KCMOSFET N-CH 600V 38A I4PAC |
4,289 |
|
Tabla de datos |
HiPerFET™ | i4-Pac™-5 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 38A (Tc) | 10V | 70mOhm @ 20A, 10V | 3.9V @ 2.7mA | 250 nC @ 10 V | ±20V | - | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
IXFB38N100Q2MOSFET N-CH 1000V 38A PLUS264 |
4,546 |
|
Tabla de datos |
HiPerFET™, Q2 Class | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 38A (Tc) | 10V | 250mOhm @ 19A, 10V | 5.5V @ 8mA | 250 nC @ 10 V | ±30V | 13500 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS264™ |
