FET, MOSFET
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo FET | Tecnología | Voltaje de drenaje a fuente (Vdss) | Corriente: drenaje continuo (Id) a 25 °C | Voltaje de excitación (máx. Rds activado, mín. Rds activado) | Rds activado (máx.) a Id, Vgs | Vgs(th) (máx.) a Id | Carga de compuerta (Qg) (máx.) a Vgs | Vgs (máx.) | Capacitancia de entrada (Ciss) (máx.) a Vds | Característica FET | Disipación de potencia (máx.) | Temperatura de funcionamiento | Grado | Calificación | Tipo de montaje | Proveedor Dispositivo Paquete |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF7464TRPBFMOSFET N-CH 200V 1.2A 8SO |
2,078 |
|
Tabla de datos |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 1.2A (Ta) | 10V | 730mOhm @ 720mA, 10V | 5.5V @ 250µA | 14 nC @ 10 V | ±30V | 280 pF @ 25 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
IRF7834TRPBFMOSFET N-CH 30V 19A 8SO |
3,513 |
|
Tabla de datos |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 19A (Ta) | 4.5V, 10V | 4.5mOhm @ 19A, 10V | 2.25V @ 250µA | 44 nC @ 4.5 V | ±20V | 3710 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
IRF7460TRPBFMOSFET N-CH 20V 12A 8SO |
3,332 |
|
Tabla de datos |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 12A (Ta) | 4.5V, 10V | 10mOhm @ 12A, 10V | 3V @ 250µA | 19 nC @ 4.5 V | ±20V | 2050 pF @ 10 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
IRF7453TRPBFMOSFET N-CH 250V 2.2A 8SO |
4,120 |
|
Tabla de datos |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 2.2A (Ta) | 10V | 230mOhm @ 1.3A, 10V | 5.5V @ 250µA | 38 nC @ 10 V | ±30V | 930 pF @ 25 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
IRF7433TRPBFMOSFET P-CH 12V 8.9A 8SO |
2,601 |
|
Tabla de datos |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 8.9A (Ta) | 1.8V, 4.5V | 24mOhm @ 8.7A, 4.5V | 900mV @ 250µA | 20 nC @ 4.5 V | ±8V | 1877 pF @ 10 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
IRF7457TRPBFMOSFET N-CH 20V 15A 8SO |
4,651 |
|
Tabla de datos |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 15A (Ta) | 4.5V, 10V | 7mOhm @ 15A, 10V | 3V @ 250µA | 42 nC @ 4.5 V | ±20V | 3100 pF @ 10 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
IRF7207TRPBFMOSFET P-CH 20V 5.4A 8SO |
4,448 |
|
Tabla de datos |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 5.4A (Tc) | 2.7V, 4.5V | 60mOhm @ 5.4A, 4.5V | 700mV @ 250µA (Min) | 22 nC @ 4.5 V | ±12V | 780 pF @ 15 V | - | 2.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
;;3.jpg)
|
IRFU120ZPBFMOSFET N-CH 100V 8.7A IPAK |
3,286 |
|
Tabla de datos |
HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 8.7A (Tc) | 10V | 190mOhm @ 5.2A, 10V | 4V @ 250µA | 10 nC @ 10 V | ±20V | 310 pF @ 25 V | - | 35W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK (TO-251AA) |
|
IRLU4343PBFMOSFET N-CH 55V 26A I-PAK |
4,087 |
|
Tabla de datos |
HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 26A (Tc) | 4.5V, 10V | 50mOhm @ 4.7A, 10V | 1V @ 250µA | 42 nC @ 10 V | ±20V | 740 pF @ 50 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK |
|
|
IRFU3504ZPBFMOSFET N-CH 40V 42A IPAK |
2,575 |
|
Tabla de datos |
HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 42A (Tc) | 10V | 9mOhm @ 42A, 10V | 4V @ 250µA | 45 nC @ 10 V | ±20V | 1510 pF @ 25 V | - | 90W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK (TO-251AA) |
|
|
IRFU2905ZPBFMOSFET N-CH 55V 42A IPAK |
4,618 |
|
Tabla de datos |
HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 42A (Tc) | 10V | 14.5mOhm @ 36A, 10V | 4V @ 250µA | 44 nC @ 10 V | ±20V | 1380 pF @ 25 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK (TO-251AA) |
|
|
IRFU12N25DPBFMOSFET N-CH 250V 14A IPAK |
4,363 |
|
Tabla de datos |
HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 14A (Tc) | 10V | 260mOhm @ 8.4A, 10V | 5V @ 250µA | 35 nC @ 10 V | ±30V | 810 pF @ 25 V | - | 144W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK (TO-251AA) |
|
IRLU3705ZPBFMOSFET N-CH 55V 42A IPAK |
2,961 |
|
Tabla de datos |
HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 42A (Tc) | 4.5V, 10V | 8mOhm @ 42A, 10V | 3V @ 250µA | 66 nC @ 5 V | ±16V | 2900 pF @ 25 V | - | 130W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK (TO-251AA) |
|
FDC3616NMOSFET N-CH 100V 3.7A SUPERSOT6 |
2,715 |
|
Tabla de datos |
PowerTrench® | 6-SSOT Flat-lead, SuperSOT™-6 FLMP | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 3.7A (Ta) | 6V, 10V | 70mOhm @ 3.7A, 10V | 4V @ 250µA | 32 nC @ 10 V | ±20V | 1215 pF @ 50 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SuperSOT™-6 FLMP |
|
|
FDC697P_F077MOSFET P-CH 20V 8A SUPERSOT6 |
2,694 |
|
Tabla de datos |
PowerTrench® | 6-SSOT Flat-lead, SuperSOT™-6 FLMP | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 8A (Ta) | 1.8V, 4.5V | 20mOhm @ 8A, 4.5V | 1.5V @ 250µA | 55 nC @ 4.5 V | ±8V | 3524 pF @ 10 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SuperSOT™-6 FLMP |
|
FDFS2P102MOSFET P-CH 20V 3.3A 8SOIC |
3,324 |
|
Tabla de datos |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.3A (Ta) | 4.5V, 10V | 125mOhm @ 3.3A, 10V | 2V @ 250µA | 10 nC @ 10 V | ±20V | 270 pF @ 10 V | Schottky Diode (Isolated) | 900mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

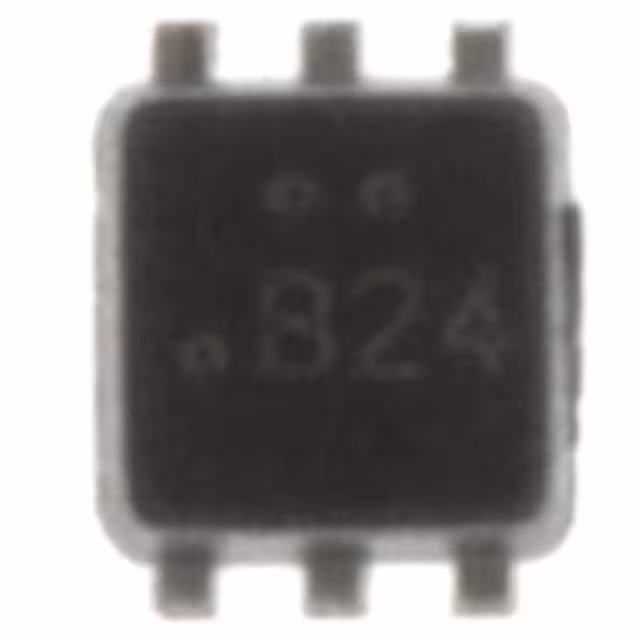

FDJ128NMOSFET N-CH 20V 5.5A SC75-6 FLMP |
3,537 |
|
Tabla de datos |
PowerTrench® | SC-75-6 FLMP | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 5.5A (Ta) | 2.5V, 4.5V | 35mOhm @ 5.5A, 4.5V | 1.5V @ 250µA | 8 nC @ 5 V | ±12V | 543 pF @ 10 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC75-6 FLMP |
|
|
FDJ129PMOSFET P-CH 20V 4.2A SC75-6 FLMP |
2,715 |
|
Tabla de datos |
PowerTrench® | SC-75-6 FLMP | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.2A (Ta) | 2.5V, 4.5V | 70mOhm @ 4.2A, 4.5V | 1.5V @ 250µA | 6 nC @ 4.5 V | ±12V | 780 pF @ 10 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC75-6 FLMP |
|
|
FDS2170N3MOSFET N-CH 200V 3A 8SOIC |
3,967 |
|
Tabla de datos |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 3A (Ta) | 10V | 128mOhm @ 3A, 10V | 4.5V @ 250µA | 36 nC @ 10 V | ±20V | 1292 pF @ 100 V | - | 3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO FLMP |
|
|
FDS2170N7MOSFET N-CH 200V 3A 8SOIC |
3,685 |
|
Tabla de datos |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 3A (Ta) | 10V | 128mOhm @ 3A, 10V | 4.5V @ 250µA | 36 nC @ 10 V | ±20V | 1292 pF @ 100 V | - | 3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO FLMP |
