FET, MOSFET
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo FET | Tecnología | Voltaje de drenaje a fuente (Vdss) | Corriente: drenaje continuo (Id) a 25 °C | Voltaje de excitación (máx. Rds activado, mín. Rds activado) | Rds activado (máx.) a Id, Vgs | Vgs(th) (máx.) a Id | Carga de compuerta (Qg) (máx.) a Vgs | Vgs (máx.) | Capacitancia de entrada (Ciss) (máx.) a Vds | Característica FET | Disipación de potencia (máx.) | Temperatura de funcionamiento | Grado | Calificación | Tipo de montaje | Proveedor Dispositivo Paquete |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RJK2017DPP-M0#T2ABU / MOSFET |
2,117 |
|
Tabla de datos |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 45A (Ta) | 10V | 47mOhm @ 22.5A, 10V | 4V @ 1mA | 66 nC @ 10 V | ±30V | 4800 pF @ 25 V | - | 30W (Tc) | 150°C | - | - | Through Hole | TO-220FL |
|
NVMFS5C468NWFT1GMOSFET N-CH 40V 12A/35A 5DFN |
2,250 |
|
Tabla de datos |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 12A (Ta), 35A (Tc) | 10V | 12mOhm @ 10A, 10V | 3.5V @ 250µA | 7.9 nC @ 10 V | ±20V | 420 pF @ 25 V | - | 3.5W (Ta), 28W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 5-DFNW (4.9x5.9) (8-SOFL-WF) |
|
STP3LN80K5MOSFET N-CHANNEL 800V 2A TO220 |
973 |
|
Tabla de datos |
MDmesh™ K5 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 2A (Tc) | 10V | 3.25Ohm @ 1A, 10V | 5V @ 100µA | 2.63 nC @ 10 V | ±30V | 102 pF @ 100 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
NVTFS004N04CTAGMOSFET N-CH 40V 18A/77A 8WDFN |
500 |
|
Tabla de datos |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 18A (Ta), 77A (Tc) | 10V | 4.9mOhm @ 35A, 10V | 3.5V @ 50µA | 18 nC @ 10 V | ±20V | 1150 pF @ 25 V | - | 3.2W (Ta), 55W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
DMTH6010LPSQ-13MOSFET N-CH 60V 13.5A PWRDI5060 |
2,294 |
|
Tabla de datos |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 13.5A (Ta), 100A (Tc) | 4.5V, 10V | 8mOhm @ 20A, 10V | 3V @ 250µA | 41.3 nC @ 10 V | ±20V | 2090 pF @ 30 V | - | 2.6W (Ta), 136W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
|
FDMS8023SMOSFET N-CH 30V 26A/49A 8PQFN |
1,843 |
|
Tabla de datos |
PowerTrench®, SyncFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 26A (Ta), 49A (Tc) | 4.5V, 10V | 2.4mOhm @ 26A, 10V | 3V @ 1mA | 57 nC @ 10 V | ±20V | 3550 pF @ 15 V | - | 2.5W (Ta), 59W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
|
R6007KNXC7G600V 7A TO-220FM, HIGH-SPEED SWI |
945 |
|
Tabla de datos |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 620mOhm @ 2.4A, 10V | 5V @ 1mA | 14.5 nC @ 10 V | ±20V | 470 pF @ 25 V | - | 46W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
SIR5710DP-T1-RE3N-CHANNEL 150 V (D-S) MOSFET POW |
6,000 |
|
Tabla de datos |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 7.8A (Ta), 26.8A (Tc) | 7.5V, 10V | 31.5mOhm @ 10A, 10V | 4V @ 250µA | 15 nC @ 10 V | ±20V | 770 pF @ 75 V | - | 4.8W (Ta), 56.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
N0434N-S23-AYMOSFET N-CH 40V 100A TO262 |
2,978 |
|
Tabla de datos |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Ta) | 10V | 3.7mOhm @ 50A, 10V | - | 100 nC @ 10 V | ±20V | 5550 pF @ 25 V | - | 1.5W (Ta), 119W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-262 |
|
RD3H045SPFRATLMOSFET P-CH 45V 4.5A TO252 |
1,236 |
|
Tabla de datos |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 45 V | 4.5A (Ta) | 4V, 10V | 155mOhm @ 4.5A, 10V | 3V @ 1mA | 12 nC @ 5 V | ±20V | 550 pF @ 10 V | - | 15W (Tc) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252 |
|
AOT8N80LMOSFET N-CH 800V 7.4A TO220 |
988 |
|
Tabla de datos |
- | TO-220-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 800 V | 7.4A (Tc) | 10V | 1.63Ohm @ 4A, 10V | 4.5V @ 250µA | 32 nC @ 10 V | ±30V | 1650 pF @ 25 V | - | 245W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
RD3U040CNTL1MOSFET N-CH 250V 4A TO252 |
371 |
|
Tabla de datos |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 4A (Tc) | 10V | 1.3Ohm @ 2A, 10V | 5.5V @ 1mA | 8.5 nC @ 10 V | ±30V | 350 pF @ 25 V | - | 29W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 |
|
IPW60R160P6FKSA1MOSFET N-CH 600V 23.8A TO247-3 |
239 |
|
Tabla de datos |
CoolMOS™ P6 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 23.8A (Tc) | 10V | 160mOhm @ 9A, 10V | 4.5V @ 750µA | 44 nC @ 10 V | ±20V | 2080 pF @ 100 V | - | 176W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3 |
|
SQ4435EY-T1_BE3MOSFET P-CHANNEL 30V 15A 8SOIC |
2,494 |
|
Tabla de datos |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Tc) | 4.5V, 10V | 18mOhm @ 8A, 10V | 2.5V @ 250µA | 58 nC @ 10 V | ±20V | 2170 pF @ 15 V | - | 6.8W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOIC |
|
|
SQ4435EY-T1_GE3MOSFET P-CHANNEL 30V 15A 8SOIC |
2,260 |
|
Tabla de datos |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Tc) | 4.5V, 10V | 18mOhm @ 8A, 10V | 2.5V @ 250µA | 58 nC @ 10 V | ±20V | 2170 pF @ 15 V | - | 6.8W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
CSD17578Q5ATMOSFET N-CH 30V 25A 8VSON |
1,413 |
|
Tabla de datos |
NexFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 25A (Ta) | 4.5V, 10V | 6.9mOhm @ 10A, 10V | 1.9V @ 250µA | 22.3 nC @ 10 V | ±20V | 1510 pF @ 15 V | - | 3.1W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-VSONP (5x6) |
|
BSC018NE2LSIATMA1MOSFET N-CH 25V 29A/100A TDSON |
9,768 |
|
Tabla de datos |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 29A (Ta), 100A (Tc) | 4.5V, 10V | 1.8mOhm @ 30A, 10V | 2V @ 250µA | 36 nC @ 10 V | ±20V | 2500 pF @ 12 V | - | 2.5W (Ta), 69W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TDSON-8-6 |
|

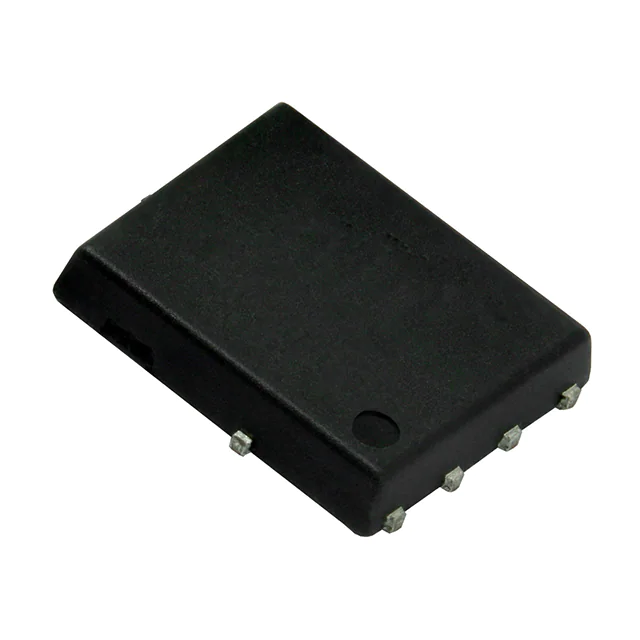

SIR164DP-T1-GE3MOSFET N-CH 30V 50A PPAK SO-8 |
4,515 |
|
Tabla de datos |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | 4.5V, 10V | 2.5mOhm @ 15A, 10V | 2.5V @ 250µA | 123 nC @ 10 V | ±20V | 3950 pF @ 15 V | - | 5.2W (Ta), 69W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
SQJA02EP-T1_GE3MOSFET N-CH 60V 60A PPAK SO-8 |
2,916 |
|
Tabla de datos |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 60A (Tc) | 10V | 4.8mOhm @ 10A, 10V | 3.5V @ 250µA | 80 nC @ 10 V | ±20V | 4700 pF @ 25 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
|
RQ3E180BNTB1NCH 30V 39A MIDDLE POWER MOSFET: |
2,820 |
|
Tabla de datos |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta), 39A (Tc) | 4.5V, 10V | 3.9mOhm @ 18A, 10V | 2.5V @ 1mA | 72 nC @ 10 V | ±20V | 3500 pF @ 15 V | - | 2W (Ta), 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-HSMT (3.2x3) |
