FET, MOSFET
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo FET | Tecnología | Voltaje de drenaje a fuente (Vdss) | Corriente: drenaje continuo (Id) a 25 °C | Voltaje de excitación (máx. Rds activado, mín. Rds activado) | Rds activado (máx.) a Id, Vgs | Vgs(th) (máx.) a Id | Carga de compuerta (Qg) (máx.) a Vgs | Vgs (máx.) | Capacitancia de entrada (Ciss) (máx.) a Vds | Característica FET | Disipación de potencia (máx.) | Temperatura de funcionamiento | Grado | Calificación | Tipo de montaje | Proveedor Dispositivo Paquete |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSS110N03TBMOSFET N-CH 30V 11A 8SOP |
2,213 |
|
Tabla de datos |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4V, 10V | 10.7mOhm @ 11A, 10V | 2.5V @ 1mA | 17 nC @ 5 V | 20V | 1300 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
BUK9219-55A,118MOSFET N-CH 55V 55A DPAK |
3,112 |
|
Tabla de datos |
TrenchMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 55A (Tc) | 4.5V, 10V | 17.6mOhm @ 25A, 10V | 2V @ 1mA | - | ±10V | 2920 pF @ 25 V | - | 114W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
SI4642DY-T1-E3MOSFET N-CH 30V 34A 8SO |
3,922 |
|
- |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 34A (Tc) | 4.5V, 10V | 3.75mOhm @ 20A, 10V | 3V @ 1mA | 110 nC @ 10 V | ±20V | 5540 pF @ 15 V | - | 3.5W (Ta), 7.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
BUK7609-55A,118MOSFET N-CH 55V 75A D2PAK |
2,273 |
|
- |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 9mOhm @ 25A, 10V | 4V @ 1mA | 62 nC @ 0 V | ±20V | 3271 pF @ 25 V | - | 211W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
STFH12N105K5DISCRETE |
3,603 |
|
- |
- | TO-220-3 Full Pack | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 1050 V | 8A (Tc) | 10V | 1Ohm @ 4A, 10V | 5V @ 100µA | 18.4 nC @ 10 V | ±30V | 559 pF @ 100 V | - | 29W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
IPP120N10S405AKSA1MOSFET N-CH 100V 120A TO220-3 |
3,192 |
|
Tabla de datos |
OptiMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 120A (Tc) | 10V | 5.3mOhm @ 100A, 10V | 3.5V @ 120µA | 91 nC @ 10 V | ±20V | 6540 pF @ 25 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO220-3-1 |
|
|
IPP06CN10N GMOSFET N-CH 100V 100A TO220-3 |
3,153 |
|
Tabla de datos |
OptiMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 100A (Tc) | 10V | 6.5mOhm @ 100A, 10V | 4V @ 180µA | 139 nC @ 10 V | ±20V | 9200 pF @ 50 V | - | 214W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
HUF75545S3MOSFET N-CH 80V 75A I2PAK |
4,188 |
|
Tabla de datos |
UltraFET™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 75A (Tc) | 10V | 10mOhm @ 75A, 10V | 4V @ 250µA | 235 nC @ 20 V | ±20V | 3750 pF @ 25 V | - | 270W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 (I2PAK) |
|
|
SPP80N04S2-04MOSFET N-CH 40V 80A TO220-3 |
3,482 |
|
Tabla de datos |
OptiMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 80A (Tc) | 10V | 3.7mOhm @ 80A, 10V | 4V @ 250µA | 170 nC @ 10 V | ±20V | 6980 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|
IXTA130N065T2MOSFET N-CH 65V 130A TO263 |
2,843 |
|
Tabla de datos |
TrenchT2™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 65 V | 130A (Tc) | 10V | 6.6mOhm @ 50A, 10V | 4V @ 250µA | 79 nC @ 10 V | ±20V | 4800 pF @ 25 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
AOB280LMOSFET N-CH 80V 20.5A/140A TO263 |
4,773 |
|
Tabla de datos |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 20.5A (Ta), 140A (Tc) | 6V, 10V | 2.2mOhm @ 20A, 10V | 3.4V @ 250µA | 224 nC @ 10 V | ±20V | 11135 pF @ 40 V | - | 2.1W (Ta), 333W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
AOT280LMOSFET N-CH 80V 20.5A/140A TO220 |
4,331 |
|
Tabla de datos |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 20.5A (Ta), 140A (Tc) | 6V, 10V | 2.7mOhm @ 20A, 10V | 3.4V @ 250µA | 224 nC @ 10 V | ±20V | 11135 pF @ 40 V | - | 2.1W (Ta), 333W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
|
IRFP4229PBFXKMA1TRENCH >=100V |
2,336 |
|
- |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 44A (Tc) | 10V | 46mOhm @ 26A, 10V | 5V @ 250µA | 110 nC @ 10 V | ±30V | 4560 pF @ 25 V | - | 310W (Tc) | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AC |
|
IRF640NLMOSFET N-CH 200V 18A TO262 |
2,688 |
|
Tabla de datos |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 18A (Tc) | 10V | 150mOhm @ 11A, 10V | 4V @ 250µA | 67 nC @ 10 V | ±20V | 1160 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
IRF4104MOSFET N-CH 40V 75A TO220AB |
4,435 |
|
Tabla de datos |
HEXFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 5.5mOhm @ 75A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 3000 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
IXTY08N100D2-TRLMOSFET N-CH 1000V 800MA TO252 |
3,107 |
|
Tabla de datos |
Depletion | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 1000 V | 800mA (Tj) | 0V | 21Ohm @ 400mA, 0V | 4V @ 25µA | 14.6 nC @ 5 V | ±20V | 325 pF @ 25 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|

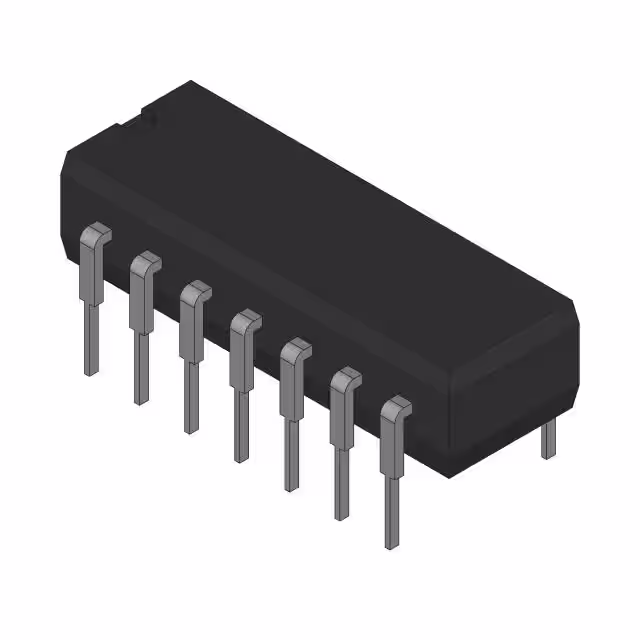

IRFD320MOSFET N-CH 400V 490MA 4DIP |
3,230 |
|
Tabla de datos |
- | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 490mA (Ta) | 10V | 1.8Ohm @ 210mA, 10V | 4V @ 250µA | 20 nC @ 10 V | ±20V | 410 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Through Hole | 4-HVMDIP |
|
IRFD420MOSFET N-CH 500V 370MA 4DIP |
4,832 |
|
Tabla de datos |
- | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 370mA (Ta) | 10V | 3Ohm @ 220mA, 10V | 4V @ 250µA | 24 nC @ 10 V | ±20V | 360 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Through Hole | 4-HVMDIP |
|
|
SIE726DF-T1-E3MOSFET N-CH 30V 60A 10POLARPAK |
3,466 |
|
- |
SkyFET®, TrenchFET® | 10-PolarPAK® (L) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 60A (Tc) | 4.5V, 10V | 2.4mOhm @ 25A, 10V | 3V @ 250µA | 160 nC @ 10 V | ±20V | 7400 pF @ 15 V | - | 5.2W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PolarPAK® (L) |
|
SUD50N04-05L-E3MOSFET N-CH 40V 115A TO252 |
3,835 |
|
- |
TrenchFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 115A (Tc) | 4.5V, 10V | 5.4mOhm @ 20A, 10V | 3V @ 250µA | 135 nC @ 10 V | ±20V | 5600 pF @ 25 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
