FET, MOSFET
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo FET | Tecnología | Voltaje de drenaje a fuente (Vdss) | Corriente: drenaje continuo (Id) a 25 °C | Voltaje de excitación (máx. Rds activado, mín. Rds activado) | Rds activado (máx.) a Id, Vgs | Vgs(th) (máx.) a Id | Carga de compuerta (Qg) (máx.) a Vgs | Vgs (máx.) | Capacitancia de entrada (Ciss) (máx.) a Vds | Característica FET | Disipación de potencia (máx.) | Temperatura de funcionamiento | Grado | Calificación | Tipo de montaje | Proveedor Dispositivo Paquete |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDP80N06MOSFET N-CH 60V 80A TO220-3 |
3,476 |
|
Tabla de datos |
UniFET™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 80A (Tc) | 10V | 10mOhm @ 40A, 10V | 4V @ 250µA | 74 nC @ 10 V | ±20V | 3190 pF @ 25 V | - | 176W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IPA60R600C6XKSA1MOSFET N-CH 600V 7.3A TO220-FP |
4,627 |
|
Tabla de datos |
CoolMOS™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.3A (Tc) | 10V | 600mOhm @ 2.4A, 10V | 3.5V @ 200µA | 20.5 nC @ 10 V | ±20V | 440 pF @ 100 V | - | 28W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-FP |
|
IPI60R600CPAKSA1MOSFET N-CH 600V 6.1A TO262-3 |
4,705 |
|
Tabla de datos |
CoolMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 6.1A (Tc) | 10V | 600mOhm @ 3.3A, 10V | 3.5V @ 220µA | 27 nC @ 10 V | ±20V | 550 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO262-3 |
;;2.jpg)
|
STD9N80K5MOSFET N-CHANNEL 800V 7A DPAK |
4,643 |
|
Tabla de datos |
MDmesh™ K5 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 7A (Tc) | 10V | 900mOhm @ 3.5A, 10V | 5V @ 100µA | 12 nC @ 10 V | ±30V | 340 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
IPA65R660CFDXKSA2MOSFET N-CH 700V 6A TO220 |
4,098 |
|
Tabla de datos |
CoolMOS™ CFD2 | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 700 V | 6A (Tc) | 10V | 660mOhm @ 2.1A, 10V | 4.5V @ 200µA | 22 nC @ 10 V | ±20V | 615 pF @ 100 V | - | 27.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220 Full Pack |
|
|
NTP13N10MOSFET N-CH 100V 13A TO220AB |
4,562 |
|
Tabla de datos |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 13A (Ta) | 10V | 165mOhm @ 6.5A, 10V | 4V @ 250µA | 20 nC @ 10 V | ±20V | 550 pF @ 25 V | - | 64.7W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
|
NTP13N10GMOSFET N-CH 100V 13A TO220AB |
2,516 |
|
Tabla de datos |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 13A (Ta) | 10V | 165mOhm @ 6.5A, 10V | 4V @ 250µA | 20 nC @ 10 V | ±20V | 550 pF @ 25 V | - | 64.7W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
FQP4N80MOSFET N-CH 800V 3.9A TO220-3 |
2,894 |
|
Tabla de datos |
QFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 3.9A (Tc) | 10V | 3.6Ohm @ 1.95A, 10V | 5V @ 250µA | 25 nC @ 10 V | ±30V | 880 pF @ 25 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
HUFA75637P3MOSFET N-CH 100V 44A TO220-3 |
4,926 |
|
Tabla de datos |
UltraFET™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 44A (Tc) | 10V | 30mOhm @ 44A, 10V | 4V @ 250µA | 108 nC @ 20 V | ±20V | 1700 pF @ 25 V | - | 155W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
AOWF412MOSFET N-CH 100V 7.8A/30A |
4,944 |
|
Tabla de datos |
SDMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 7.8A (Ta), 30A (Tc) | 7V, 10V | 15.8mOhm @ 20A, 10V | 3.8V @ 250µA | 54 nC @ 10 V | ±25V | 3220 pF @ 50 V | - | 2.1W (Ta), 33W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262F |
|
AOTF5N100MOSFET N-CH 1000V 4A TO220-3F |
4,940 |
|
Tabla de datos |
- | TO-220-3 Full Pack | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 1000 V | 4A (Tc) | 10V | 4.2Ohm @ 2.5A, 10V | 4.5V @ 250µA | 23 nC @ 10 V | ±30V | 1150 pF @ 25 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F |
|
IRF1010ZPBFMOSFET N-CH 55V 75A TO220AB |
4,869 |
|
Tabla de datos |
HEXFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 7.5mOhm @ 75A, 10V | 4V @ 250µA | 95 nC @ 10 V | ±20V | 2840 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
NVMFS5C410NWFT3GMOSFET N-CH 40V 5DFN |
4,523 |
|
Tabla de datos |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 300A (Tc) | 10V | 0.92mOhm @ 50A, 10V | 3.5V @ 250µA | 86 nC @ 10 V | ±20V | 6100 pF @ 25 V | - | 3.9W (Ta), 166W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
MCACL170N08Y-TPMOSFET N-CH 80 170A DFN5060 |
3,007 |
|
Tabla de datos |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 170A (Tc) | 10V | 2.5mOhm @ 30A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 6452 pF @ 40 V | - | 208W (Tj) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN5060 |
|
STP60NE06-16MOSFET N-CH 60V 60A TO220AB |
2,467 |
|
Tabla de datos |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 60A (Tc) | 10V | 16mOhm @ 30A, 10V | 4V @ 250µA | 160 nC @ 10 V | ±20V | 6200 pF @ 25 V | - | 150W (Tc) | 175°C (TJ) | - | - | Through Hole | TO-220 |
|

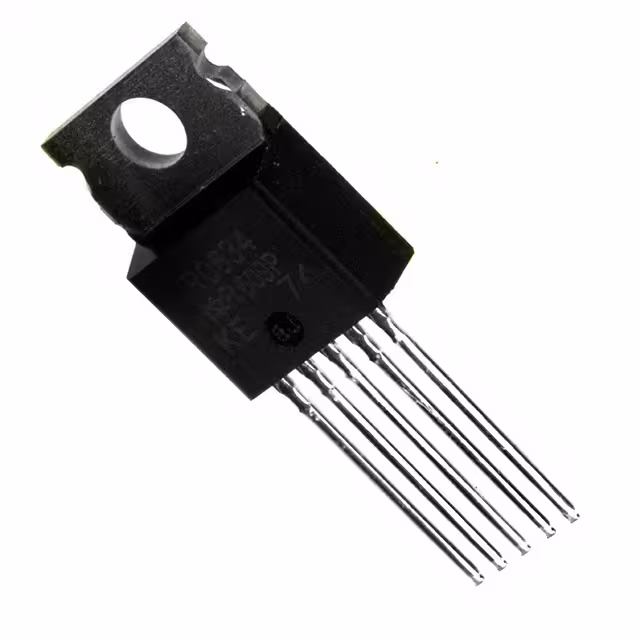

IRC634PBFMOSFET N-CH 250V 8.1A TO220-5 |
4,315 |
|
Tabla de datos |
HEXFET® | TO-220-5 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 8.1A (Tc) | 10V | 450mOhm @ 4.9A, 10V | 4V @ 250µA | 41 nC @ 10 V | ±20V | 770 pF @ 25 V | Current Sensing | 74W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 |
|
FQPF14N30MOSFET N-CH 300V 8.5A TO220F |
3,171 |
|
Tabla de datos |
QFET® | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300 V | 8.5A (Tc) | 10V | 290mOhm @ 4.25A, 10V | 5V @ 250µA | 40 nC @ 10 V | ±30V | 1360 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
|
FQPF6N90MOSFET N-CH 900V 3.4A TO220F |
3,913 |
|
Tabla de datos |
QFET® | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 3.4A (Tc) | 10V | 1.9Ohm @ 1.7A, 10V | 5V @ 250µA | 52 nC @ 10 V | ±30V | 1880 pF @ 25 V | - | 56W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
STN3PF06MOSFET P-CH 60V 2.5A SOT223 |
2,049 |
|
Tabla de datos |
STripFET™ II | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 2.5A (Tc) | 10V | 220mOhm @ 1.5A, 10V | 4V @ 250µA | 21 nC @ 10 V | ±20V | 850 pF @ 25 V | - | 2.5W (Tc) | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
FDD3N40TFMOSFET N-CH 400V 2A DPAK |
2,509 |
|
Tabla de datos |
UniFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 2A (Tc) | 10V | 3.4Ohm @ 1A, 10V | 5V @ 250µA | 6 nC @ 10 V | ±30V | 225 pF @ 25 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
