Interruptores DIP
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Embalaje | Estado del producto | Circuito | Número de posiciones | Clasificación de corriente (amperios) | Clasificación de voltaje | Tipo de actuador | Nivel de actuador | Material de contacto | Acabado de contacto | Altura sobre la placa | Tipo de montaje | Estilo de terminación | Paso | Lavable | Características | Temperatura de funcionamiento |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS08SWITCH SLIDE DIP SPST 0.05A 24V |
4,956 |
|
Tabla de datos |
DS | Tube | Obsolete | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DS07SWITCH SLIDE DIP SPST 0.05A 24V |
4,876 |
|
Tabla de datos |
DS | Tube | Obsolete | SPST | 7 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|

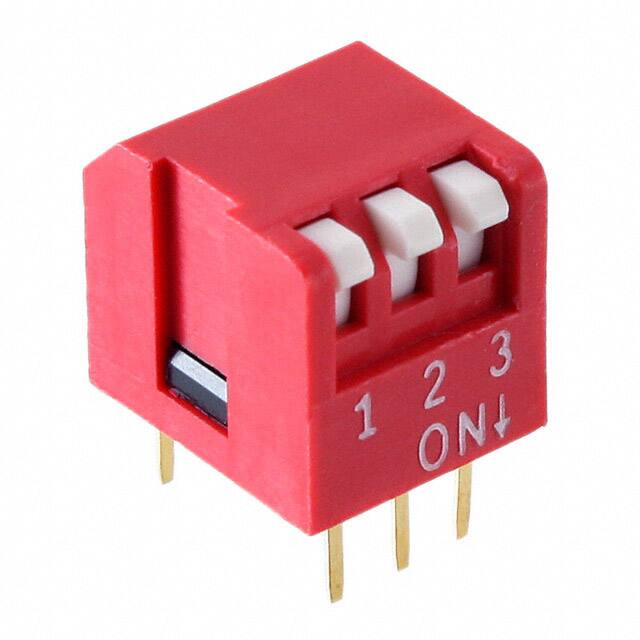

DP03SWITCH PIANO DIP SPST 0.05A 24V |
4,513 |
|
Tabla de datos |
DP | Tube | Obsolete | SPST | 3 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DS08TSWITCH SLIDE DIP SPST 0.05A 24V |
2,933 |
|
Tabla de datos |
DS | Tube | Obsolete | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DSR02TSWITCH SLIDE DIP SPST 0.05A 24V |
2,128 |
|
Tabla de datos |
DSR | Tube | Obsolete | SPST | 2 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.222" (5.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DSR08TSWITCH SLIDE DIP SPST 0.05A 24V |
2,842 |
|
Tabla de datos |
DSR | Tube | Obsolete | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.222" (5.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DSR06TSWITCH SLIDE DIP SPST 0.05A 24V |
2,826 |
|
Tabla de datos |
DSR | Tube | Obsolete | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.222" (5.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DSR05TSWITCH SLIDE DIP SPST 0.05A 24V |
3,604 |
|
Tabla de datos |
DSR | Tube | Obsolete | SPST | 5 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.222" (5.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DSR04TSWITCH SLIDE DIP SPST 0.05A 24V |
4,542 |
|
Tabla de datos |
DSR | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.222" (5.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DS12SWITCH SLIDE DIP SPST 0.05A 24V |
3,895 |
|
Tabla de datos |
DS | Tube | Obsolete | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DS12TSWITCH SLIDE DIP SPST 0.05A 24V |
3,849 |
|
Tabla de datos |
DS | Tube | Obsolete | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DS10TSWITCH SLIDE DIP SPST 0.05A 24V |
2,562 |
|
Tabla de datos |
DS | Tube | Obsolete | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DS10SWITCH SLIDE DIP SPST 0.05A 24V |
2,265 |
|
Tabla de datos |
DS | Tube | Obsolete | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DS09TSWITCH SLIDE DIP SPST 0.05A 24V |
4,641 |
|
Tabla de datos |
DS | Tube | Obsolete | SPST | 9 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DS09SWITCH SLIDE DIP SPST 0.05A 24V |
2,405 |
|
Tabla de datos |
DS | Tube | Obsolete | SPST | 9 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DP04SWITCH PIANO DIP SPST 0.05A 24V |
2,105 |
|
Tabla de datos |
DP | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DP02SWITCH PIANO DIP SPST 0.05A 24V |
4,310 |
|
Tabla de datos |
DP | Tube | Obsolete | SPST | 2 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DP02TSWITCH PIANO DIP SPST 0.05A 24V |
4,233 |
|
Tabla de datos |
DP | Tube | Obsolete | SPST | 2 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DA05SWITCH SLIDE DIP SPST 0.05A 24V |
3,236 |
|
Tabla de datos |
DA | Tube | Obsolete | SPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|

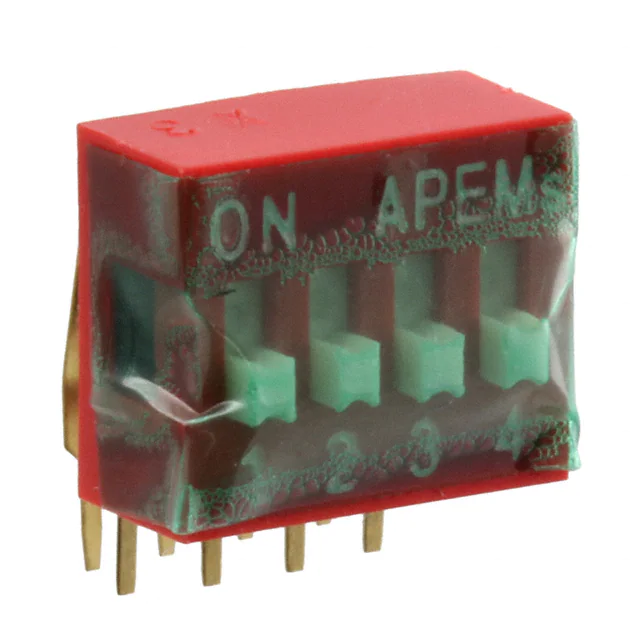

DA04TSWITCH SLIDE DIP SPST 0.05A 24V |
4,480 |
|
- |
DA | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
