Interruptores DIP
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Embalaje | Estado del producto | Circuito | Número de posiciones | Clasificación de corriente (amperios) | Clasificación de voltaje | Tipo de actuador | Nivel de actuador | Material de contacto | Acabado de contacto | Altura sobre la placa | Tipo de montaje | Estilo de terminación | Paso | Lavable | Características | Temperatura de funcionamiento |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6S-4104-HSWITCH SLIDE DIP SPST 0.025A 24V |
16,063 |
|
Tabla de datos |
A6S-H | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
RDS-10S-1055-DSWITCH ROTARY DIP BCD 0.025A 24V |
1,492 |
|
Tabla de datos |
RDS-1055 | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

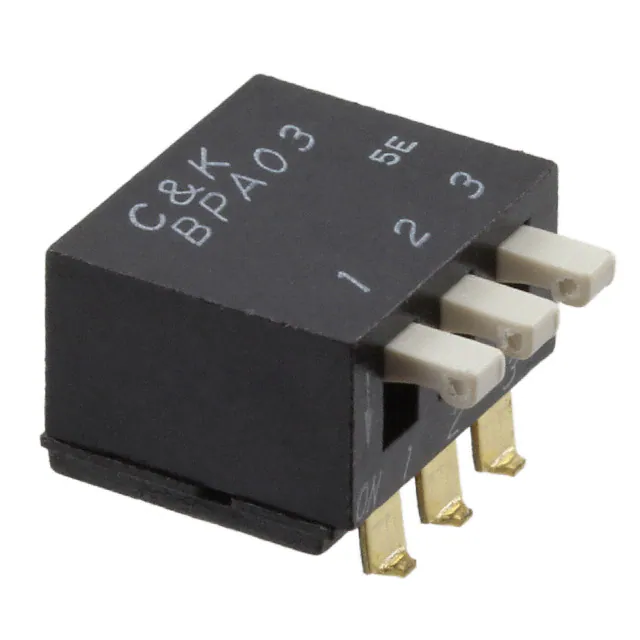

BPA03SBSWITCH PIANO DIP SPST 0.1A 5V |
24,646 |
|
Tabla de datos |
BPA | Tube | Active | SPST | 3 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
A6S-2102-HSWITCH SLIDE DIP SPST 0.025A 24V |
8,728 |
|
Tabla de datos |
A6S-H | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
KAS2108ETSWITCH SLIDE DIP SPST 0.025A 24V |
1,209 |
|
Tabla de datos |
KAS | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
1-1825006-3SWITCH SLIDE DIP SPST 0.025A 24V |
1,972 |
|
Tabla de datos |
GDS | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
A6SN-4104SWITCH SLIDE DIP SPST 0.025A 24V |
4,581 |
|
Tabla de datos |
A6SN | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
A6SN-4104-PSWITCH SLIDE DIP SPST 0.025A 24V |
3,070 |
|
Tabla de datos |
A6SN | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
1-1825059-2SWITCH SLIDE DIP SPST 0.025A 24V |
10,612 |
|
Tabla de datos |
ADF | Tape & Reel (TR) | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
A6S-3102-HSWITCH SLIDE DIP SPST 0.025A 24V |
15,125 |
|
Tabla de datos |
A6S-H | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|

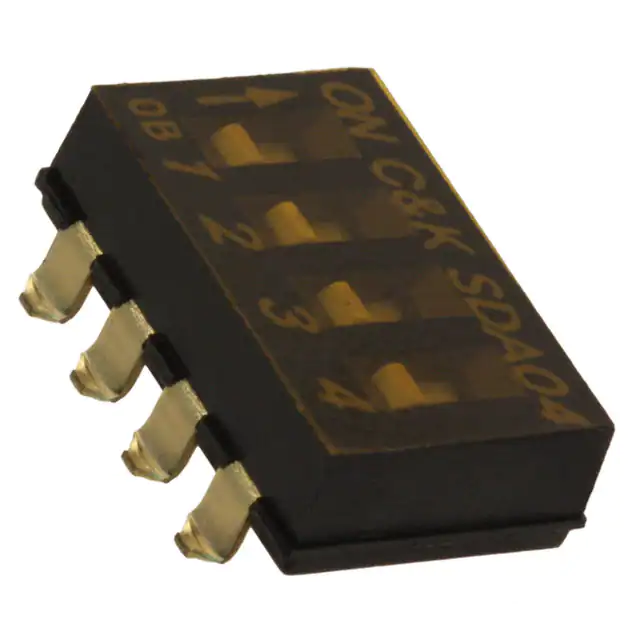

SDA04H0SBRSWITCH SLIDE DIP SPST 0.025A 24V |
4,965 |
|
Tabla de datos |
SDA | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SDA04H1SBDSWITCH SLIDE DIP SPST 0.025A 24V |
58,676 |
|
Tabla de datos |
SDA | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

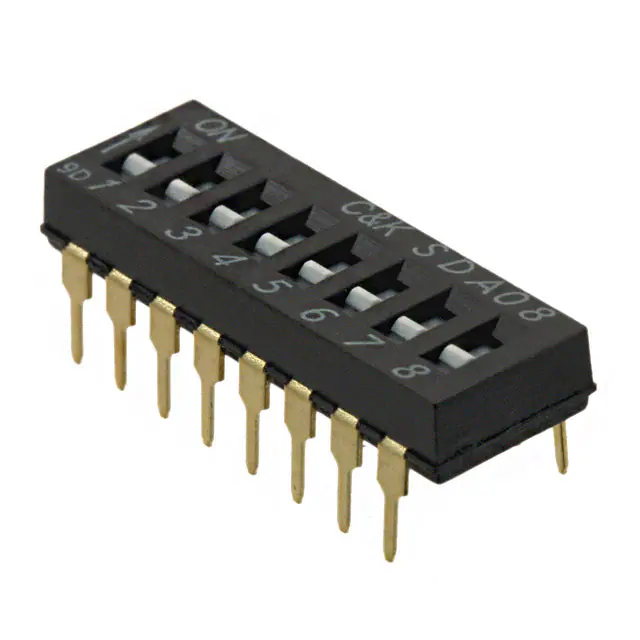

SDA08H0BDSWITCH SLIDE DIP SPST 0.025A 24V |
1,443 |
|
Tabla de datos |
SDA | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

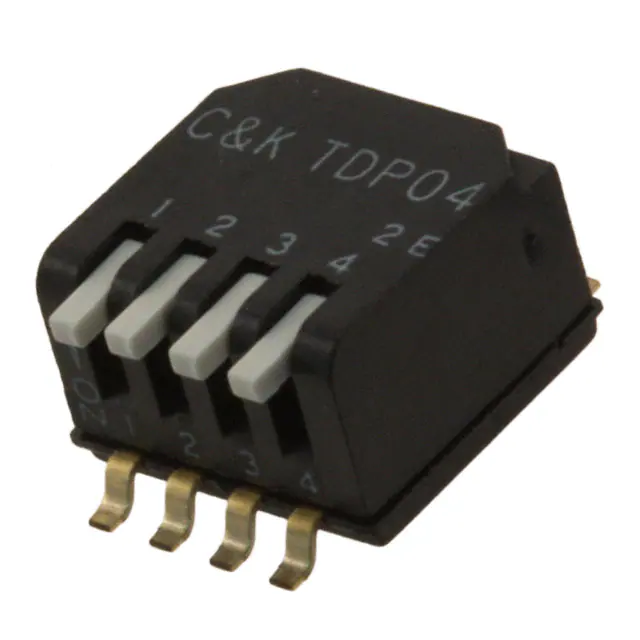

TDP04H1SBD1SWITCH PIANO DIP SPST 0.025A 24V |
90,294 |
|
Tabla de datos |
TDP | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.161" (4.10mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|

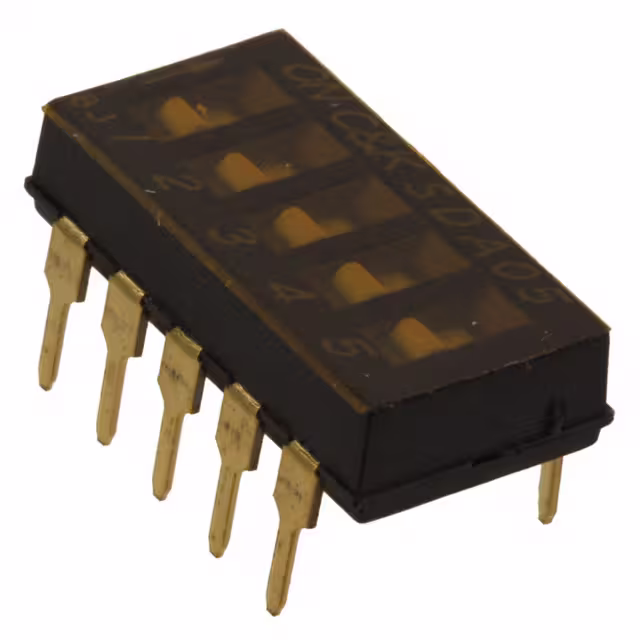

SDA05H0BSWITCH SLIDE DIP SPST 0.025A 24V |
480 |
|
Tabla de datos |
SDA | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

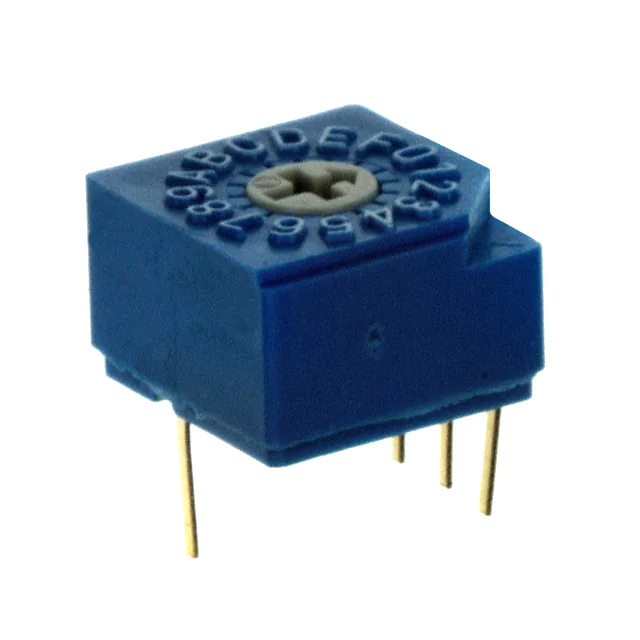

S-1030ASW ROTARY DIP HEX COMP 0.1A 5V |
10,842 |
|
Tabla de datos |
S-1000A | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
3-1825059-0SWITCH SLIDE DIP SPST 0.025A 24V |
7,290 |
|
Tabla de datos |
ADF | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

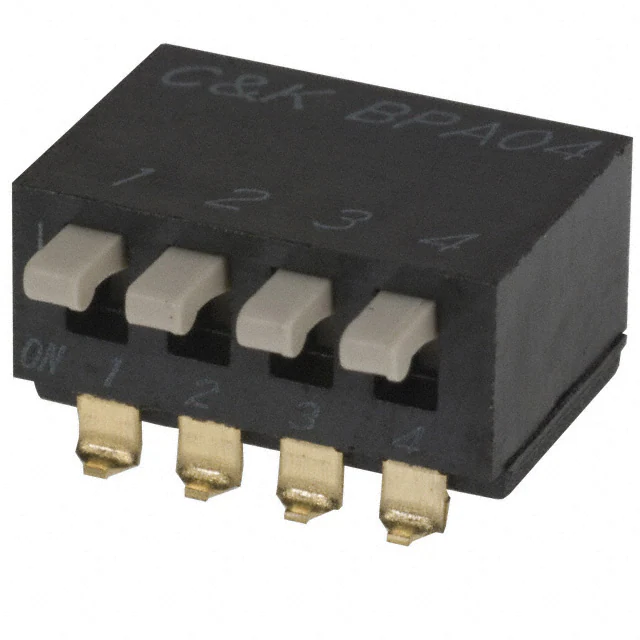

BPA04SBRSWITCH PIANO DIP SPST 0.1A 5V |
5,387 |
|
Tabla de datos |
BPA | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
A6E-4104-NSWITCH SLIDE DIP SPST 0.025A 24V |
7,132 |
|
Tabla de datos |
A6E-N | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.277" (7.05mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
CHP-041TBSWITCH PIANO DIP SPST 0.1A 6V |
5,963 |
|
Tabla de datos |
CHP | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.181" (4.60mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
