Relés automotrices
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Embalaje | Estado del producto | Tipo de bobina | Corriente de bobina | Voltaje de bobina | Formulario de contacto | Clasificación de contacto (corriente) | Voltaje de conmutación | Voltaje de funcionamiento obligatorio | Voltaje de liberación obligatorio | Tiempo de funcionamiento | Tiempo de liberación | Características | Tipo de montaje | Estilo de terminación | Temperatura de funcionamiento |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2S1CSQ48VDC1.6RRELAY AUTOMOTIVE SPDT 40A 48V CIT Relay and Switch |
0 |
|
Tabla de datos |
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2K1ASQ24VDC1.6RELAY AUTOMOTIVE SPST 120A 24V CIT Relay and Switch |
0 |
|
Tabla de datos |
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2HM1CSQ24VDC1.6RRELAY AUTOMOTIVE SPDT 50A 24V CIT Relay and Switch |
3 |
|
Tabla de datos |
A2H | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A21ASP12VDC1.6RRELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
5 |
|
Tabla de datos |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A21ASP12VDC1.6DRELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
0 |
|
Tabla de datos |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A11CSP24VDC1.2RRELAY AUTOMOTIVE SPDT 30A 24V CIT Relay and Switch |
25 |
|
Tabla de datos |
A1 | Tube | Active | Non Latching | 50 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A21CSP12VDC1.6RRELAY AUTOMOTIVE SPDT 40A 12V CIT Relay and Switch |
0 |
|
Tabla de datos |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A21CSQ48VDC1.6RELAY AUTOMOTIVE SPDT 40A 48V CIT Relay and Switch |
0 |
|
Tabla de datos |
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

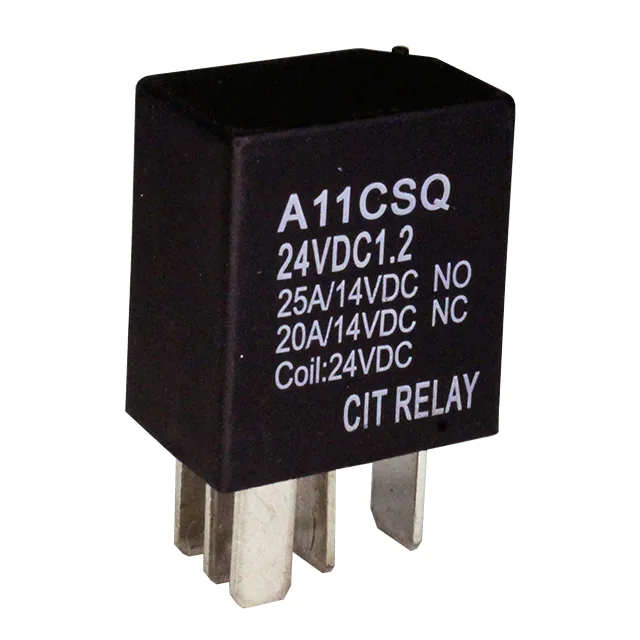

A11CSQ24VDC1.2RRELAY AUTOMOTIVE SPDT 30A 24V CIT Relay and Switch |
0 |
|
Tabla de datos |
A1 | Tube | Active | Non Latching | 50 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|
A31CCQ24VDC1DRELAY AUTOMOTIVE SPDT 60A 24V CIT Relay and Switch |
0 |
|
Tabla de datos |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
