Condensadores de polímero de aluminio
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Embalaje | Estado del producto | Tipo | Capacitancia | Tolerancia | Voltaje - Nominal | ESR (resistencia en serie equivalente) | Vida útil a temperatura ambiente | Temperatura de funcionamiento | Clasificaciones | Aplicaciones | Características | Corriente de ondulación a baja frecuencia | Corriente de ondulación a alta frecuencia | Impedancia | Espaciado de cables | Tamaño/Dimensión | Altura - Asentado (Máx.) | Tamaño de la superficie de montaje | Tipo de montaje |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEH-ZA1E101XVCAP ALUMHYB 100UF 20% 25V SMD |
3,601 |
|
Tabla de datos |
ZA, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 25 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PLG0J182MDO1TDCAP ALUM POLY 1800UF 20% 6.3V TH |
450 |
|
Tabla de datos |
PLG | Cut Tape (CT) | Active | Polymer | 1800 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
A700V336M010ATE028CAP ALUM POLY 33UF 20% 10V SMD |
7,295 |
|
Tabla de datos |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 10 V | 28mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-CS1C330RCAP ALUM POLY 33UF 20% 16V SMD |
6,996 |
|
Tabla de datos |
SP-Cap CS | Tape & Reel (TR) | Not For New Designs | Polymer | 33 µF | ±20% | 16 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.047" (1.20mm) | - | Surface Mount |
|
PCG1C151MCL1GSCAP ALUM POLY 150UF 20% 16V SMD |
2,278 |
|
Tabla de datos |
PCG | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 16 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
HHXD350ARA271MJA0GCAP ALUMHYB 270UF 20% 35V SMD |
1,127 |
|
Tabla de datos |
HXD | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 325 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZF1V151PCAP ALUMHYB 150UF 20% 35V SMD |
753 |
|
Tabla de datos |
ZF | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 23mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 142.5 mA @ 100 Hz | 950 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCR1D151MCL1GSCAP ALUM POLY 150UF 20% 20V SMD |
722 |
|
Tabla de datos |
PCR | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 39mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

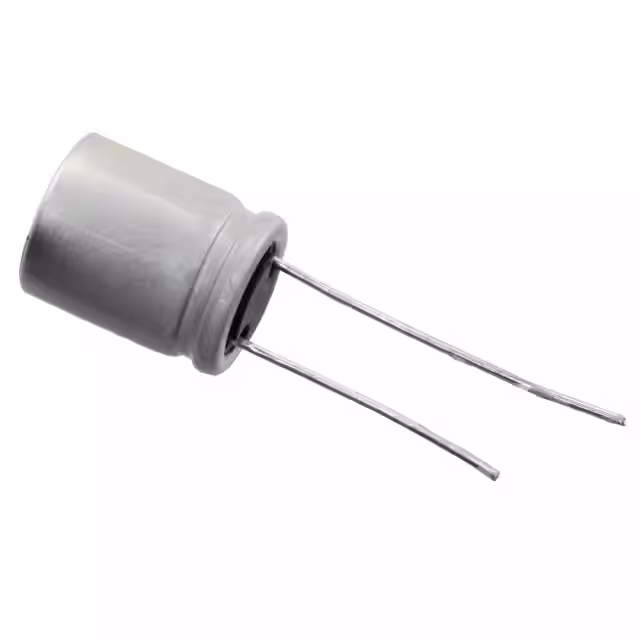

PLF1D151MDO2TDCAP ALUM POLY 150UF 20% 20V TH |
370 |
|
Tabla de datos |
PLF | Cut Tape (CT) | Active | Polymer | 150 µF | ±20% | 20 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.32 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RHA1C271MCN1GSCAP ALUM POLY 270UF 20% 16V SMD |
3,434 |
|
Tabla de datos |
FPCAP, RHA | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 330 mA @ 120 Hz | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEH-ZT1H121PCAP ALUMHYB 120UF 20% 50V SMD |
934 |
|
Tabla de datos |
ZT | Tape & Reel (TR) | Active | Hybrid | 120 µF | ±20% | 50 V | 23mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 435 mA @ 100 Hz | 2.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCG0G272MCL1GSCAP ALUM POLY 2700UF 20% 4V SMD |
8,760 |
|
Tabla de datos |
PCG | Tape & Reel (TR) | Active | Polymer | 2700 µF | ±20% | 4 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
HHXB630ARA330MHA0GCAP ALUM HYBRID 33UF 20% 63V SMD |
1,819 |
|
Tabla de datos |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
870135675003CAP ALUM POLY 100UF 20% 35V TH |
503 |
|
Tabla de datos |
WCAP-PTHT | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 35 V | 22mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 200 mA @ 120 Hz | 4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
50PEV33M6.3X8CAP ALUM HYBRID 33UF 20% 50V SMD |
1,189 |
|
Tabla de datos |
PEV | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 50 V | 40mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | - | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCF1D101MCL1GSCAP ALUM POLY 100UF 20% 20V SMD |
1,153 |
|
Tabla de datos |
PCF | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 20 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
477AVG025MFBJCAP ALUM POLY 470UF 20% 25V TH |
652 |
|
Tabla de datos |
AVG | Bulk | Active | Polymer | 470 µF | ±20% | 25 V | 18mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 212.5 mA @ 120 Hz | 4.25 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.532" (13.50mm) | - | Through Hole |
|
RNU1J390MDN1PHCAP ALUM POLY 39UF 20% 63V TH |
1,240 |
|
Tabla de datos |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 39 µF | ±20% | 63 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 120 Hz | 2.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
RPS1C271MCN1GSCAP ALUM POLY 270UF 20% 16V SMD |
884 |
|
Tabla de datos |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 440 mA @ 120 Hz | 4.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXA100ARA271MHC0GCAP ALUM POLY 270UF 20% 10V SMD |
813 |
|
Tabla de datos |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 10 V | 14mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.42 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
