Condensadores de polímero de aluminio
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Embalaje | Estado del producto | Tipo | Capacitancia | Tolerancia | Voltaje - Nominal | ESR (resistencia en serie equivalente) | Vida útil a temperatura ambiente | Temperatura de funcionamiento | Clasificaciones | Aplicaciones | Características | Corriente de ondulación a baja frecuencia | Corriente de ondulación a alta frecuencia | Impedancia | Espaciado de cables | Tamaño/Dimensión | Altura - Asentado (Máx.) | Tamaño de la superficie de montaje | Tipo de montaje |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APXE4R0ARA331MF61GCAP ALUM POLY 330UF 20% 4V SMD |
2,720 |
|
Tabla de datos |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.16 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RNE1C471MDN1CAP ALUM POLY 470UF 20% 16V TH |
2 |
|
Tabla de datos |
FPCAP, RNE | Bulk | Active | Polymer | 470 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 540 mA @ 120 Hz | 5.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RPS1C820MCN1GSCAP ALUM POLY 82UF 20% 16V SMD |
3,006 |
|
Tabla de datos |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 16 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 230 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
10SEP270MCAP ALUM POLY 270UF 20% 10V TH |
4,868 |
|
Tabla de datos |
OS-CON™, SEP | Bulk | Active | Polymer | 270 µF | ±20% | 10 V | 25mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
6SVPA220MAACAP ALUM POLY 220UF 20% 6.3V SMD |
4,323 |
|
Tabla de datos |
OS-CON™, SVPA | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 161 mA @ 120 Hz | 3.22 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCX1D330MCL1GSCAP ALUM POLY 33UF 20% 20V SMD |
1 |
|
Tabla de datos |
PCX | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 20 V | 60mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
EEH-ZC1E220RCAP ALUM HYBRID 22UF 20% 25V SMD |
2,008 |
|
Tabla de datos |
ZC | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 25 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 55 mA @ 100 Hz | 550 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
10SVPS33MCAP ALUM POLY 33UF 20% 10V SMD |
6 |
|
Tabla de datos |
OS-CON™, SVPS | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 10 V | 70mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 55 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
35SEK82MCAP ALUM POLY 82UF 20% 35V TH |
7 |
|
Tabla de datos |
OS-CON™, SEK | Bulk | Active | Polymer | 82 µF | ±20% | 35 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 48 mA @ 120 Hz | 960 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|
ECASD31A686M040KA0CAP ALUM POLY 68UF 20% 10V SMD |
4,075 |
|
Tabla de datos |
ECAS | Tape & Reel (TR) | Last Time Buy | Polymer | 68 µF | ±20% | 10 V | 40mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
A784MS107M1JLAS028CAP ALUMHYB 100UF 20% 63V SMD |
3,348 |
|
Tabla de datos |
A784 | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 63 V | 28mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 572 mA @ 100 Hz | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZC1J560VCAP ALUM HYBRID 56UF 20% 63V SMD |
1 |
|
Tabla de datos |
ZC, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 210 mA @ 100 Hz | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
35PZH150M8X9CAP ALUM HYBRID 150UF 20% 35V TH |
2,515 |
|
Tabla de datos |
PZH | Bulk | Active | Hybrid | 150 µF | ±20% | 35 V | 22mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 145 mA @ 100 Hz | 2.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
6SEPC220MCAP ALUM POLY 220UF 20% 6.3V TH |
3,534 |
|
Tabla de datos |
OS-CON™, SEPC | Bulk | Active | Polymer | 220 µF | ±20% | 6.3 V | 18mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 149 mA @ 120 Hz | 2.98 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | - | Through Hole |
|
|
10SEPC270MDCAP ALUM POLY 270UF 20% 10V TH |
3 |
|
Tabla de datos |
OS-CON™, SEPC | Bulk | Active | Polymer | 270 µF | ±20% | 10 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 161 mA @ 120 Hz | 3.22 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|
10SEP560M+TCAP ALUM POLY 560UF 20% 10V TH |
2,124 |
|
Tabla de datos |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 10 V | 13mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 261.5 mA @ 120 Hz | 5.23 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PLF1D470MCL2CAP ALUM POLY 47UF 20% 20V TH |
25 |
|
Tabla de datos |
PLF | Bulk | Active | Polymer | 47 µF | ±20% | 20 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|

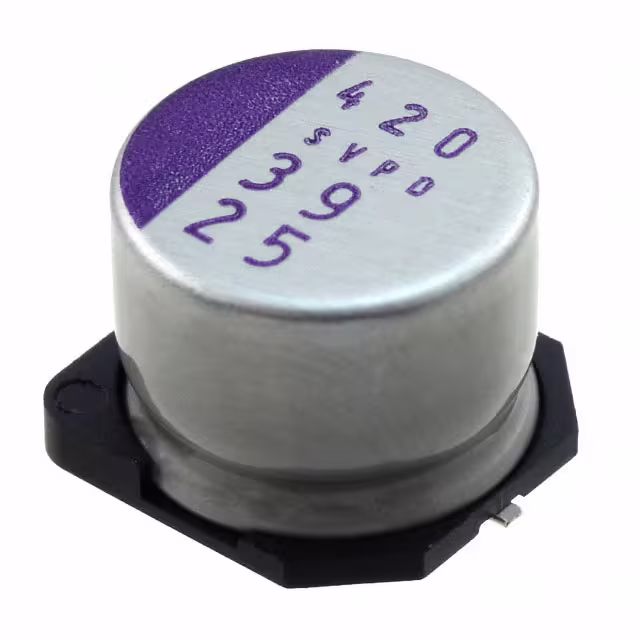

25SVPD39MCAP ALUM POLY 39UF 20% 25V SMD |
4,018 |
|
Tabla de datos |
OS-CON™, SVPD | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 25 V | 45mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 33.2 mA @ 120 Hz | 664 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
HT-Series.jpg)
|
RHT1A561MDN1CAP ALUM POLY 560UF 20% 10V TH |
14 |
|
Tabla de datos |
FPCAP, RHT | Bulk | Active | Polymer | 560 µF | ±20% | 10 V | 13mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 525 mA @ 120 Hz | 5.25 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | - | Through Hole |
|
25PZE220M8X9CAP ALUM HYBRID 220UF 20% 25V TH |
2,719 |
|
Tabla de datos |
PZE | Bulk | Active | Hybrid | 220 µF | ±20% | 25 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 115 mA @ 120 Hz | 2.3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | - | Through Hole |
