Condensadores de polímero de aluminio
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Embalaje | Estado del producto | Tipo | Capacitancia | Tolerancia | Voltaje - Nominal | ESR (resistencia en serie equivalente) | Vida útil a temperatura ambiente | Temperatura de funcionamiento | Clasificaciones | Aplicaciones | Características | Corriente de ondulación a baja frecuencia | Corriente de ondulación a alta frecuencia | Impedancia | Espaciado de cables | Tamaño/Dimensión | Altura - Asentado (Máx.) | Tamaño de la superficie de montaje | Tipo de montaje |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-Photo-Taped-Size-G.jpg)
|
EEH-AZC1E331BCAP ALUM HYBRID 330UF 20% 25V TH |
987 |
|
Tabla de datos |
ZC | Cut Tape (CT) | Active | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
|
EEH-AZC1H121BCAP ALUM HYBRID 120UF 20% 50V TH |
979 |
|
Tabla de datos |
ZC | Cut Tape (CT) | Active | Hybrid | 120 µF | ±20% | 50 V | 28mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 240 mA @ 100 Hz | 1.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
|
EEH-AZC1V271BCAP ALUM HYBRID 270UF 20% 35V TH |
965 |
|
Tabla de datos |
ZC | Cut Tape (CT) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
|
EEH-AZC1J560BCAP ALUM HYBRID 56UF 20% 63V TH |
883 |
|
Tabla de datos |
ZC | Cut Tape (CT) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 210 mA @ 100 Hz | 1.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|

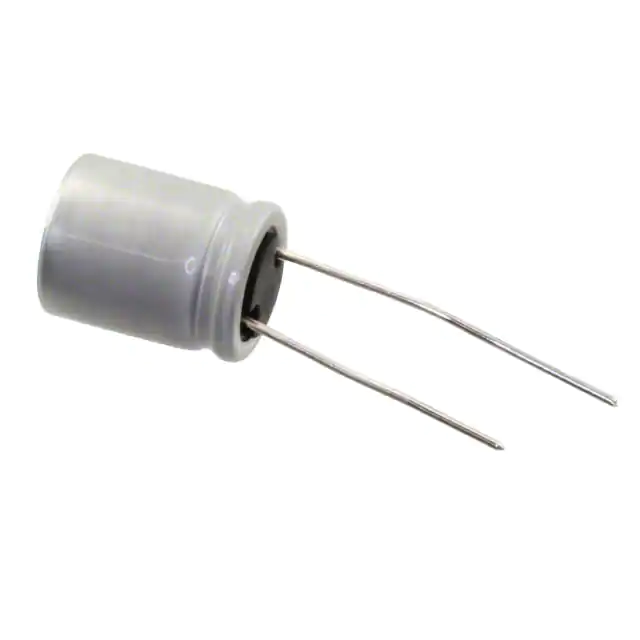

PLF1A561MDO1TDCAP ALUM POLY 560UF 20% 10V TH |
379 |
|
Tabla de datos |
PLF | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 10 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.9 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
APS-250ELL680MHB5SCAP ALUM POLY 68UF 20% 25V TH |
169 |
|
Tabla de datos |
NPCAP™-PS | Bulk | Active | Polymer | 68 µF | ±20% | 25 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.32 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PCJ0G152MCL4GSCAP ALUM POLY 1500UF 20% 4V SMD |
1,579 |
|
Tabla de datos |
PCJ | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCJ1A391MCL1GSCAP ALUM POLY 390UF 20% 10V SMD |
961 |
|
Tabla de datos |
PCJ | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 10 V | 17mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCJ0G102MCL4GSCAP ALUM POLY 1000UF 20% 4V SMD |
948 |
|
Tabla de datos |
PCJ | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 4 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.22 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCV1J120MCL2GSCAP ALUM POLY 12UF 20% 63V SMD |
920 |
|
Tabla de datos |
PCV | Tape & Reel (TR) | Active | Polymer | 12 µF | ±20% | 63 V | 70mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCJ0J821MCL6GSCAP ALUM POLY 820UF 20% 6.3V SMD |
498 |
|
Tabla de datos |
PCJ | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 6.3 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.77 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXH160ARA820MH70GCAP ALUM POLY 82UF 20% 16V SMD |
997 |
|
Tabla de datos |
NPCAP™-PXH | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 16 V | 40mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
50PFV22M6.3X6.1CAP ALUM HYBRID 22UF 20% 50V SMD |
963 |
|
Tabla de datos |
PFV | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 50 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 375 mA @ 120 Hz | 750 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PLS1C271MDO1CAP ALUM POLY 270UF 20% 16V TH |
129 |
|
Tabla de datos |
PLS | Bulk | Active | Polymer | 270 µF | ±20% | 16 V | 9mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
PCJ0E821MCL6GSCAP ALUM POLY 820UF 20% 2.5V SMD |
980 |
|
Tabla de datos |
PCJ | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 2.5 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.26 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
4SVPC330MYCAP ALUM POLY 330UF 20% 4V SMD |
929 |
|
Tabla de datos |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 131.5 mA @ 120 Hz | 2.63 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
EEF-CS1C150RCAP ALUM POLY 15UF 20% 16V SMD |
10,800 |
|
Tabla de datos |
SP-Cap CS | Tape & Reel (TR) | Not For New Designs | Polymer | 15 µF | ±20% | 16 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.047" (1.20mm) | - | Surface Mount |
|
|
APS-160EC3331MJC5SCAP ALUM POLY 330UF 20% 16V TH |
1,000 |
|
Tabla de datos |
NPCAP™-PS | Bulk | Active | Polymer | 330 µF | ±20% | 16 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.05 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
EEF-CX0D391RCAP ALUM POLY 390UF 20% 2V SMD |
415 |
|
Tabla de datos |
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 2 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
-Photo-Taped-Size-F.jpg)
|
EEH-AZE1H680BCAP ALUM HYBRID 68UF 20% 50V TH |
3,495 |
|
Tabla de datos |
ZE | Cut Tape (CT) | Active | Hybrid | 68 µF | ±20% | 50 V | 30mOhm | 2000 Hrs @ 145°C | -55°C ~ 145°C | AEC-Q200 | Automotive | - | 90 mA @ 100 Hz | 600 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
