Capacitores electrolíticos de aluminio
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Paquete/Caja | Serie | Embalaje | Estado del producto | Capacitancia | Tolerancia | Voltaje - Nominal | ESR (resistencia en serie equivalente) | Vida útil a temperatura ambiente | Temperatura de funcionamiento | Polarización | Clasificaciones | Aplicaciones | Corriente de ondulación a baja frecuencia | Corriente de ondulación a alta frecuencia | Impedancia | Espaciado de cables | Tamaño/Dimensión | Altura - Asentado (Máx.) | Tamaño de la superficie de montaje | Tipo de montaje |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CGS303U050V5LCAP ALUM 30000UF 50V SCREW CHAS |
18 |
|
Tabla de datos |
CGS | Bulk | Active | 30000 µF | -10%, +75% | 50 V | 16mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.4 A @ 120 Hz | 16.12 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
B43701A5478M000CAP ALUM 4700UF 20% 450V SCREW |
6 |
|
Tabla de datos |
B43701 | Bulk | Active | 4700 µF | ±20% | 450 V | 26mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11.9 A @ 100 Hz | - | - | 1.122" (28.50mm) | 2.531" Dia (64.30mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
|
CGS202T200V4CCAP ALUM 2000UF 200V SCREW CHAS |
3 |
|
Tabla de datos |
CGS | Bulk | Active | 2000 µF | -10%, +50% | 200 V | 57mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.8 A @ 120 Hz | 8.7 A @ 10 kHz | - | 0.875" (22.22mm) | 2.000" Dia (50.80mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
B43727A5478M600CAP ALUM 4700UF 20% 450V SCREW |
10 |
|
Tabla de datos |
B43727 | Bulk | Active | 4700 µF | ±20% | 450 V | 24mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.8 A @ 100 Hz | - | 40 mOhms | 1.122" (28.50mm) | 2.531" Dia (64.30mm) | 4.693" (119.20mm) | - | Chassis, Stud Mount | |
|

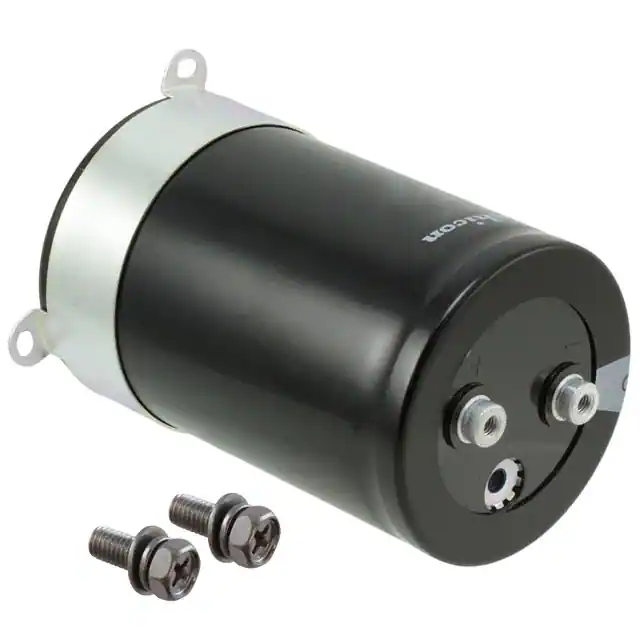

LNT1K473MSECAP ALUM 47000UF 20% 80V SCREW |
16 |
|
Tabla de datos |
LNT | Bulk | Active | 47000 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.4 A @ 120 Hz | 15.41 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
CGS313U050W4CCAP ALUM 31000UF 50V SCREW CHAS |
1 |
|
Tabla de datos |
CGS | Bulk | Active | 31000 µF | -10%, +75% | 50 V | 28mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.6 A @ 120 Hz | 12.48 A @ 10 kHz | - | 1.125" (28.58mm) | 2.500" Dia (63.50mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
E36D501LGN682MFE3UCAP ALUM 6800UF 20% 500V SCREW |
6 |
|
Tabla de datos |
U36D | Bulk | Active | 6800 µF | ±20% | 500 V | 76mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.35 A @ 120 Hz | 11.69 A @ 3 kHz | - | 1.252" (31.80mm) | 3.500" Dia (88.90mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
ALS70A752NF400CAP ALUM 7500UF 20% 400V SCREW |
3 |
|
Tabla de datos |
ALS70 | Bulk | Active | 7500 µF | ±20% | 400 V | 29mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.4 A @ 100 Hz | 23 A @ 10 kHz | 19 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|

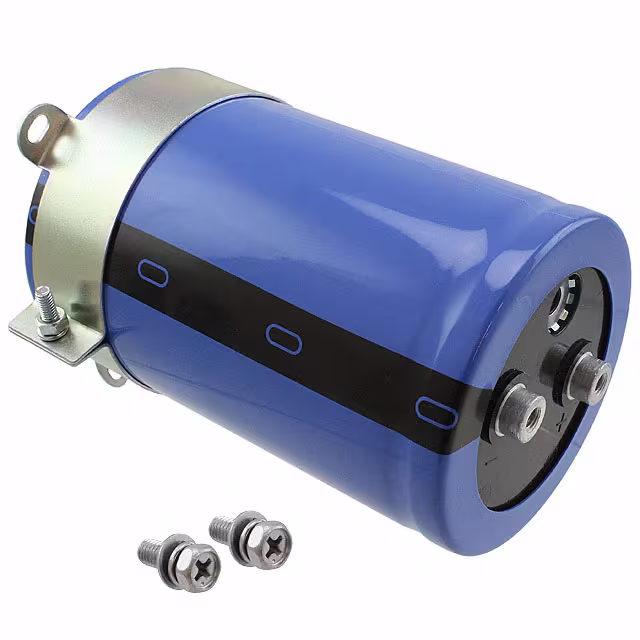

LNR2D153MSECAP ALUM 15000UF 20% 200V SCREW |
14 |
|
Tabla de datos |
LNR | Bulk | Active | 15000 µF | ±20% | 200 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 13 A @ 120 Hz | 15.6 A @ 10 kHz | - | 0.500" (12.70mm) | 3.000" Dia (76.20mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
PSU21630CAP ALUM 216UF 330V QC CHAS MT |
4 |
|
Tabla de datos |
PSU | Bulk | Active | 216 µF | 0%, +20% | 330 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 2.563" Dia (65.10mm) | 4.435" (112.65mm) | - | Chassis Mount | |
|
|
DCMC503M125DF2BCAP ALUM 50000UF 20% 125V SCREW |
12 |
|
Tabla de datos |
DCMC | Bulk | Active | 50000 µF | ±20% | 125 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 5.687" (144.45mm) | - | Chassis Mount | |
|
MAL220216222E3CAP ALUM 2200UF 20% 400V SCREW |
7 |
|
Tabla de datos |
202 PML-ST | Box | Active | 2200 µF | ±20% | 400 V | 53mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.99 A @ 100 Hz | 13.485 A @ 10 kHz | 37 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.165" (105.80mm) | - | Clamp Mount | |
|
LQR2W392MSEJCAP ALUM 3900UF 20% 450V SCREW |
5 |
|
Tabla de datos |
LQR | Bulk | Active | 3900 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 13.6 A @ 120 Hz | 19.04 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 3.661" (93.00mm) | - | Chassis Mount | |
|
DCM742T200DF2BCAP ALUM 7400UF 200V SCREW CHAS |
10 |
|
Tabla de datos |
DCM | Bulk | Active | 7400 µF | -10%, +50% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 5.687" (144.45mm) | - | Chassis Mount | |
|
|
ALS70A912NP400CAP ALUM 9100UF 20% 400V SCREW |
11 |
|
Tabla de datos |
ALS70 | Bulk | Active | 9100 µF | ±20% | 400 V | 24mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.8 A @ 100 Hz | 26.1 A @ 10 kHz | 16 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
500C602T250DB2BCAP ALUM 6000UF 250V SCREW CHAS |
6 |
|
Tabla de datos |
500C | Bulk | Active | 6000 µF | -10%, +50% | 250 V | 22mOhm | 5000 Hrs @ 95°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|

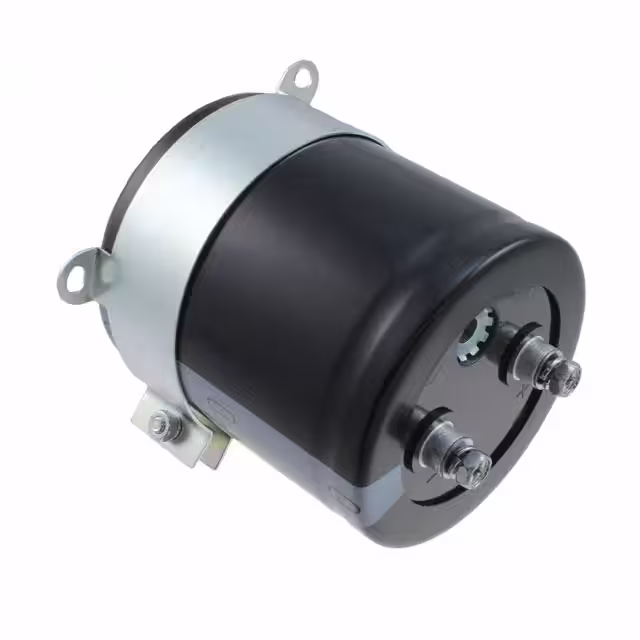

LNU2G392MSEHCAP ALUM 3900UF 20% 400V SCREW |
9 |
|
Tabla de datos |
LNU | Bulk | Active | 3900 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14.3 A @ 120 Hz | 20.02 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 3.465" (88.00mm) | - | Chassis Mount | |
|
|
B43742A5228M000CAP ALUM 2200UF 20% 450V SCREW |
9 |
|
Tabla de datos |
B43742 | Bulk | Active | 2200 µF | ±20% | 450 V | 45mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8.53 A @ 100 Hz | - | - | 1.122" (28.50mm) | 2.531" Dia (64.30mm) | 3.846" (97.70mm) | - | Chassis Mount | |
|
ERHB701LGC122MDC5UCAP ALUM 1200UF 20% 700V SCREW |
19 |
|
Tabla de datos |
RHB | Bulk | Active | 1200 µF | ±20% | 700 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.4 A @ 120 Hz | 7.56 A @ 3 kHz | - | 1.102" (28.00mm) | 2.500" Dia (63.50mm) | 5.079" (129.00mm) | - | Chassis Mount | |
|
|
CGS502T200W5CCAP ALUM 5000UF 200V SCREW CHAS |
19 |
|
Tabla de datos |
CGS | Bulk | Active | 5000 µF | -10%, +50% | 200 V | 36mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.2 A @ 120 Hz | 13.8 A @ 10 kHz | - | 1.125" (28.58mm) | 2.500" Dia (63.50mm) | 5.125" (130.18mm) | - | Chassis Mount |
