Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Paquete/Caja | Serie | Embalaje | Estado del producto | Capacitancia | Tolerancia | Voltaje - Nominal | ESR (resistencia en serie equivalente) | Vida útil a temperatura ambiente | Temperatura de funcionamiento | Polarización | Clasificaciones | Aplicaciones | Corriente de ondulación a baja frecuencia | Corriente de ondulación a alta frecuencia | Impedancia | Espaciado de cables | Tamaño/Dimensión | Altura - Asentado (Máx.) | Tamaño de la superficie de montaje | Tipo de montaje |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
UKT1HR22MDDCAP ALUM 0.22UF 20% 50V RADIAL Nichicon |
4,702 |
|
![]() Tabla de datos |
UKT | Bulk | Obsolete | 0.22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 2.9 mA @ 120 Hz | 5.8 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
![]() |
UKT1HR33MDDCAP ALUM 0.33UF 20% 50V RADIAL Nichicon |
4,513 |
|
![]() Tabla de datos |
UKT | Bulk | Obsolete | 0.33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 4.3 mA @ 120 Hz | 8.6 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
![]() |
UKT1HR47MDDCAP ALUM 0.47UF 20% 50V RADIAL Nichicon |
3,456 |
|
![]() Tabla de datos |
UKT | Bulk | Obsolete | 0.47 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 7 mA @ 120 Hz | 14 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
![]() |
UKT1H010MDDCAP ALUM 1UF 20% 50V RADIAL TH Nichicon |
4,746 |
|
![]() Tabla de datos |
UKT | Bulk | Obsolete | 1 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 13 mA @ 120 Hz | 26 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
![]() |

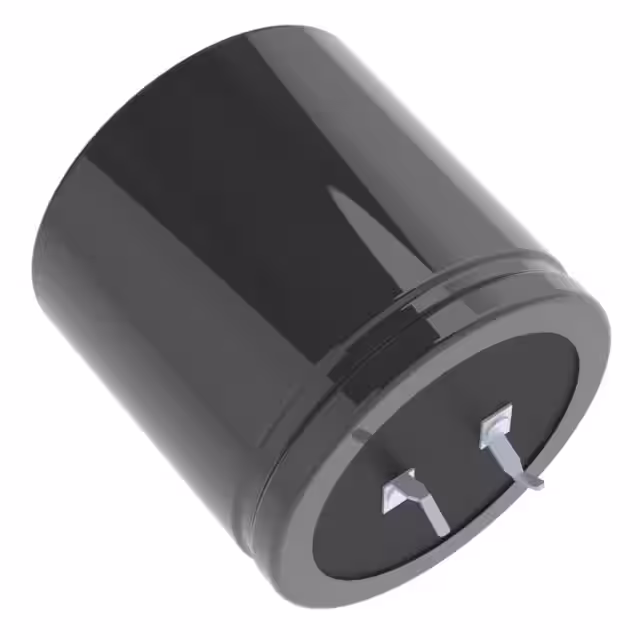

LKS1J822MESCCAP ALUM 8200UF 20% 63V SNAP TH Nichicon |
2,356 |
|
![]() Tabla de datos |
LKS | Bulk | Obsolete | 8200 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|

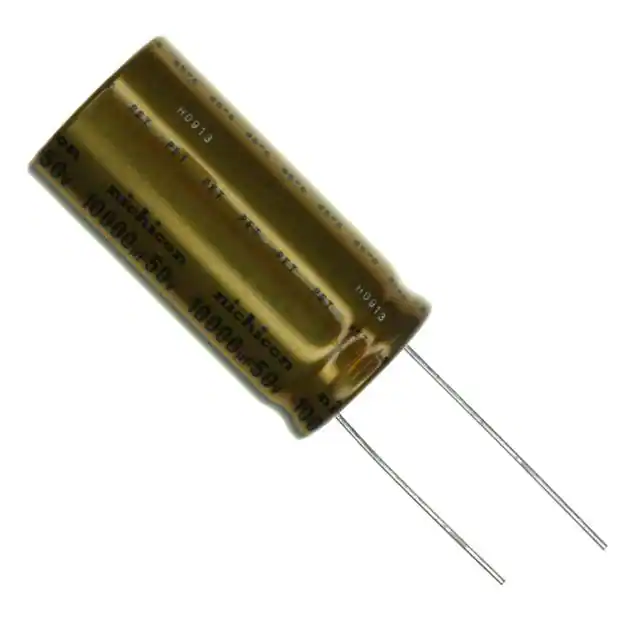

UFW1H103MRDCAP ALUM 10000UF 20% 50V RADIAL Nichicon |
4,546 |
|
![]() Tabla de datos |
UFW | Bulk | Obsolete | 10000 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4 A @ 120 Hz | 4.6 A @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
UKW1H010MDDCAP ALUM 1UF 20% 50V RADIAL TH Nichicon |
4,659 |
|
![]() Tabla de datos |
UKW | Bulk | Obsolete | 1 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 10 mA @ 120 Hz | 20 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
UTT1A221MPDCAP ALUM 220UF 20% 10V RADIAL TH Nichicon |
4,657 |
|
- |
UTT | Bulk | Obsolete | 220 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | 138 mA @ 120 Hz | 230 mA @ 100 kHz | 680 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|
UTT1C101MDDCAP ALUM 100UF 20% 16V RADIAL TH Nichicon |
4,310 |
|
- |
UTT | Bulk | Obsolete | 100 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | 97.8 mA @ 120 Hz | 163 mA @ 100 kHz | 1.1 Ohms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|
UTT1C221MPDCAP ALUM 220UF 20% 16V RADIAL TH Nichicon |
2,576 |
|
- |
UTT | Bulk | Obsolete | 220 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | 138 mA @ 120 Hz | 230 mA @ 100 kHz | 680 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
